200L Multi‑Functional Distillation Still

ZR-DT-200L

200L Multi‑Functional Distillation Still

Multifunctional:Whisky,Brandy,Grappa,Gin,Rum,Tequila Base,Baijiu Heating method: Electric heating,steam heating,direct flame heating (optional) Equipment Material：SUS304 / SUS316 / Red Copper — Custom Material

Product Description:

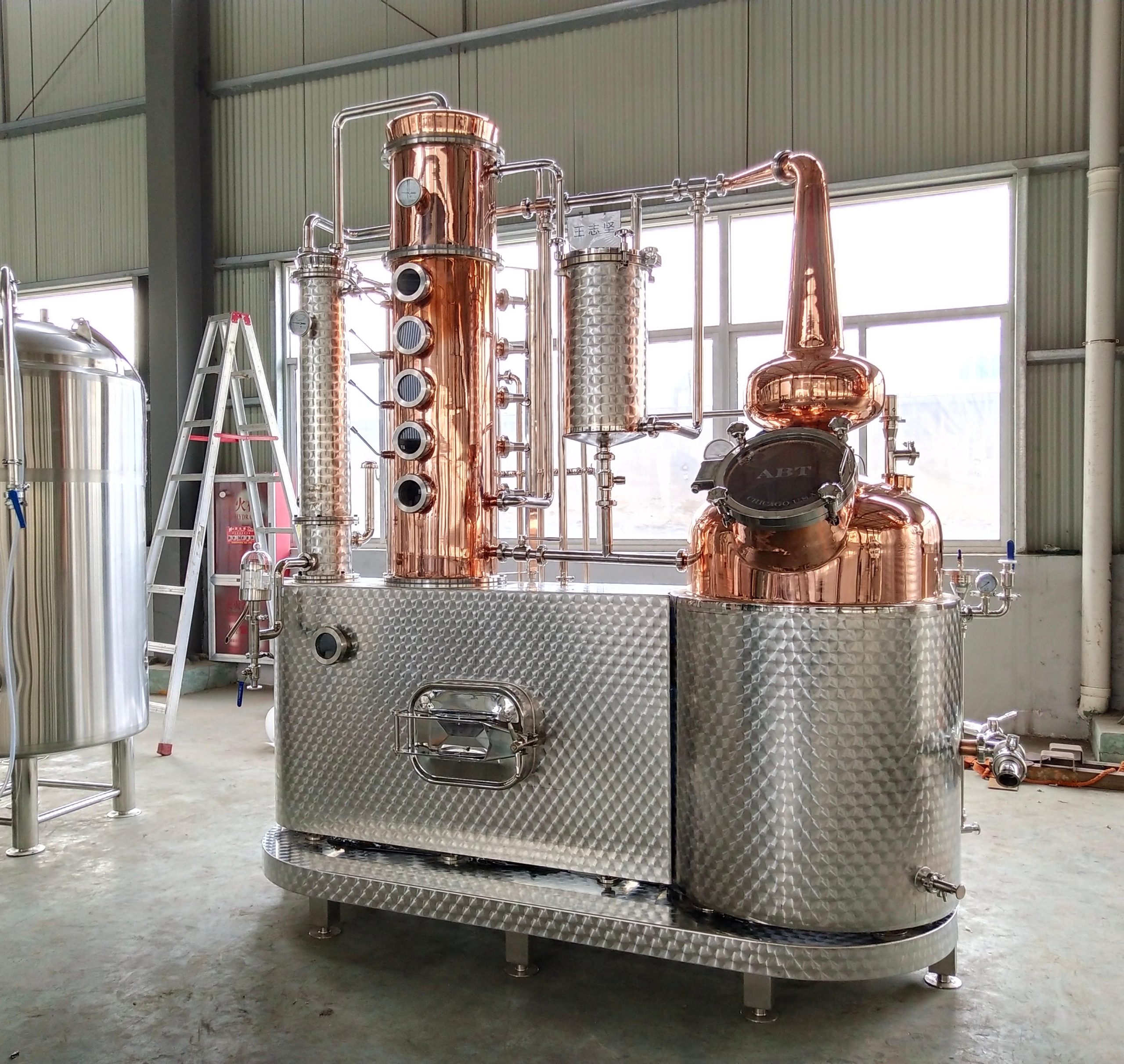

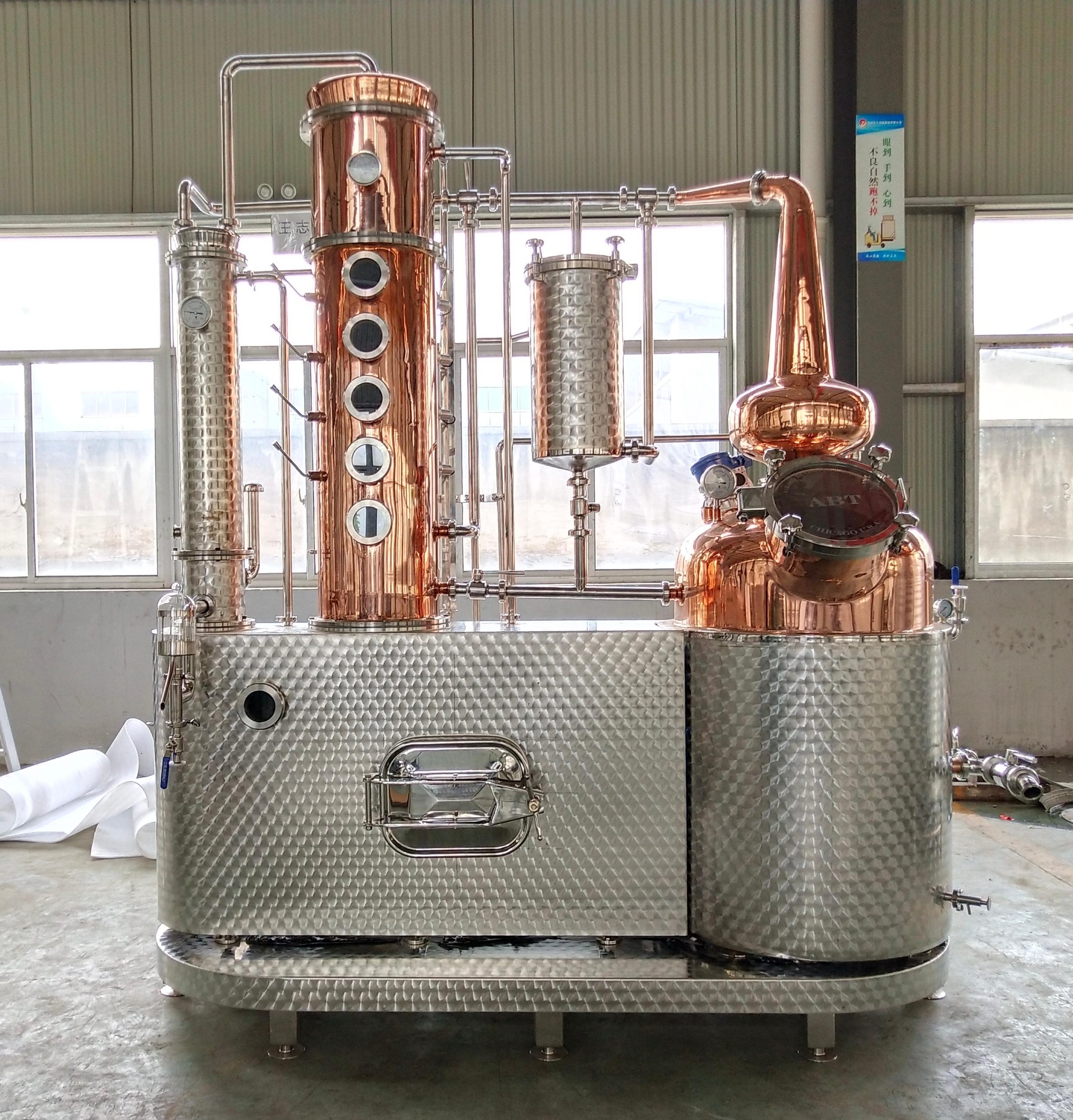

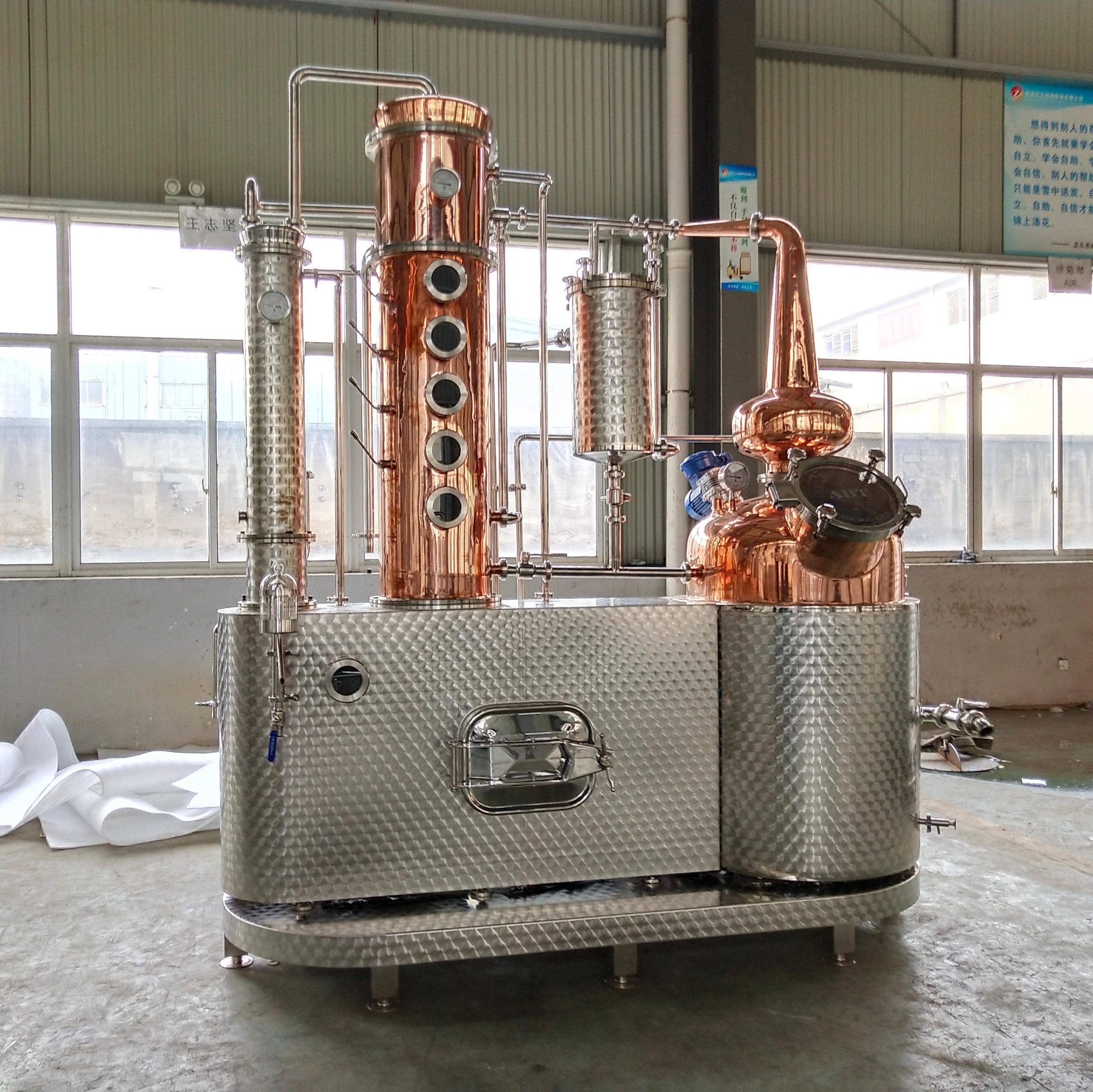

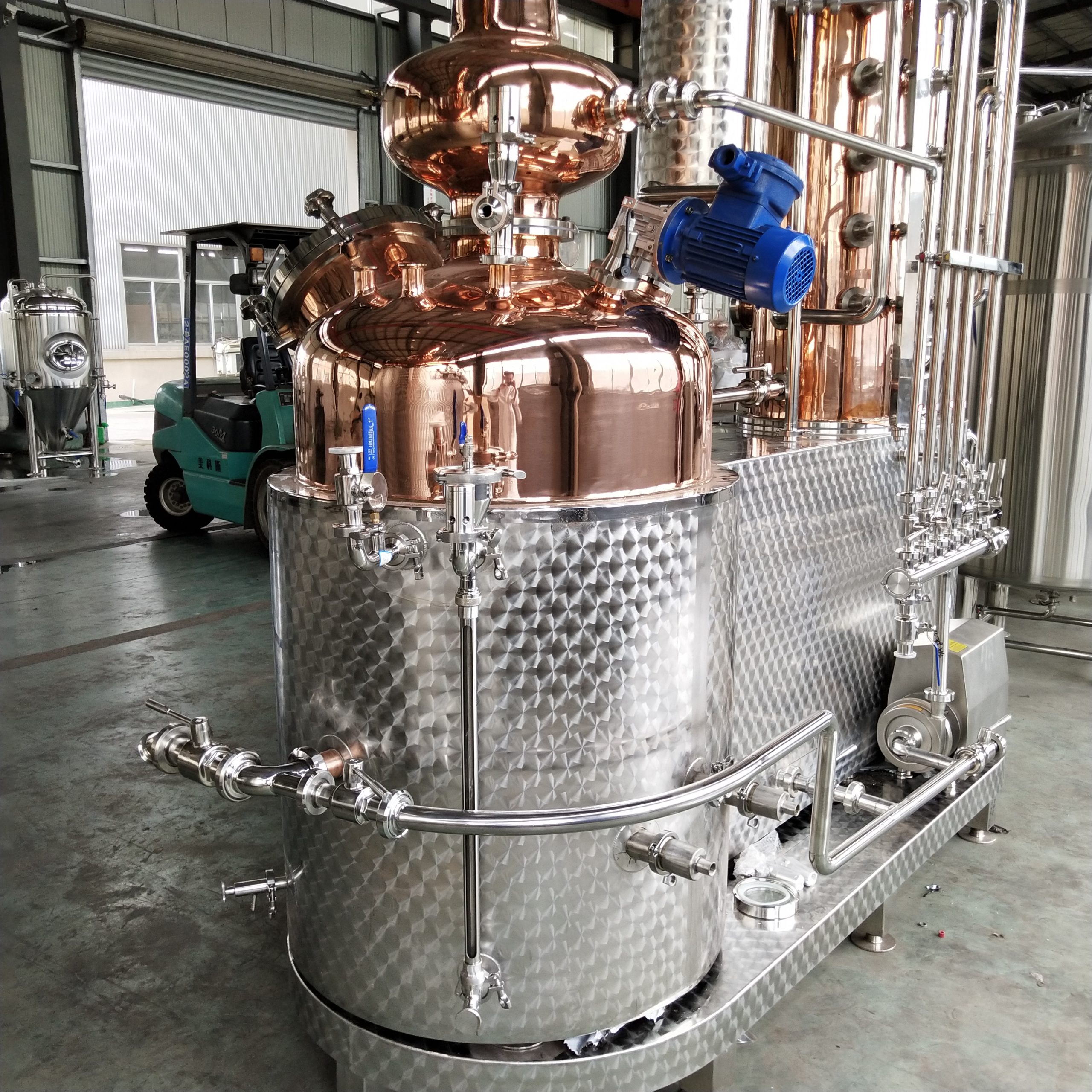

The 200L Multi‑Functional Distiller is a dual‑mode pot‑column system designed for commercial craft distilleries. Featuring a 200‑liter capacity, red copper pot still with onion helmet, 5‑plate copper fractionating column with sight glasses, integrated gin basket, and stainless steel condenser — all on a compact diamond‑plate stainless steel skid. The full‑copper vapor path ensures clean, characterful spirit production, while dual‑mode operation allows traditional pot‑still runs for whiskey and brandy or high‑proof column runs for vodka and neutral spirits. Built with sanitary tri‑clamp fittings and a front manway for easy cleaning.

Get Free Quote

Product Paramenters

Model ZR‑DT‑200L
Capacity Effective volume:200L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey,Vodka,Grappa,Brandy,Rum,Gin,Tequila,Essential oil,Hydrosol,Others
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

200L Commercial Capacity
200L pot volume delivers professional-scale batch yields for established craft distilleries requiring higher output while maintaining artisanal quality and flavor integrity.

Hybrid Copper & Stainless Steel Construction
Premium copper alembic dome and reflux column provide catalytic sulfur removal for smooth-tasting spirits. Stainless steel pot body, condenser, and base cabinet ensure durability, corrosion resistance, and easy maintenance.

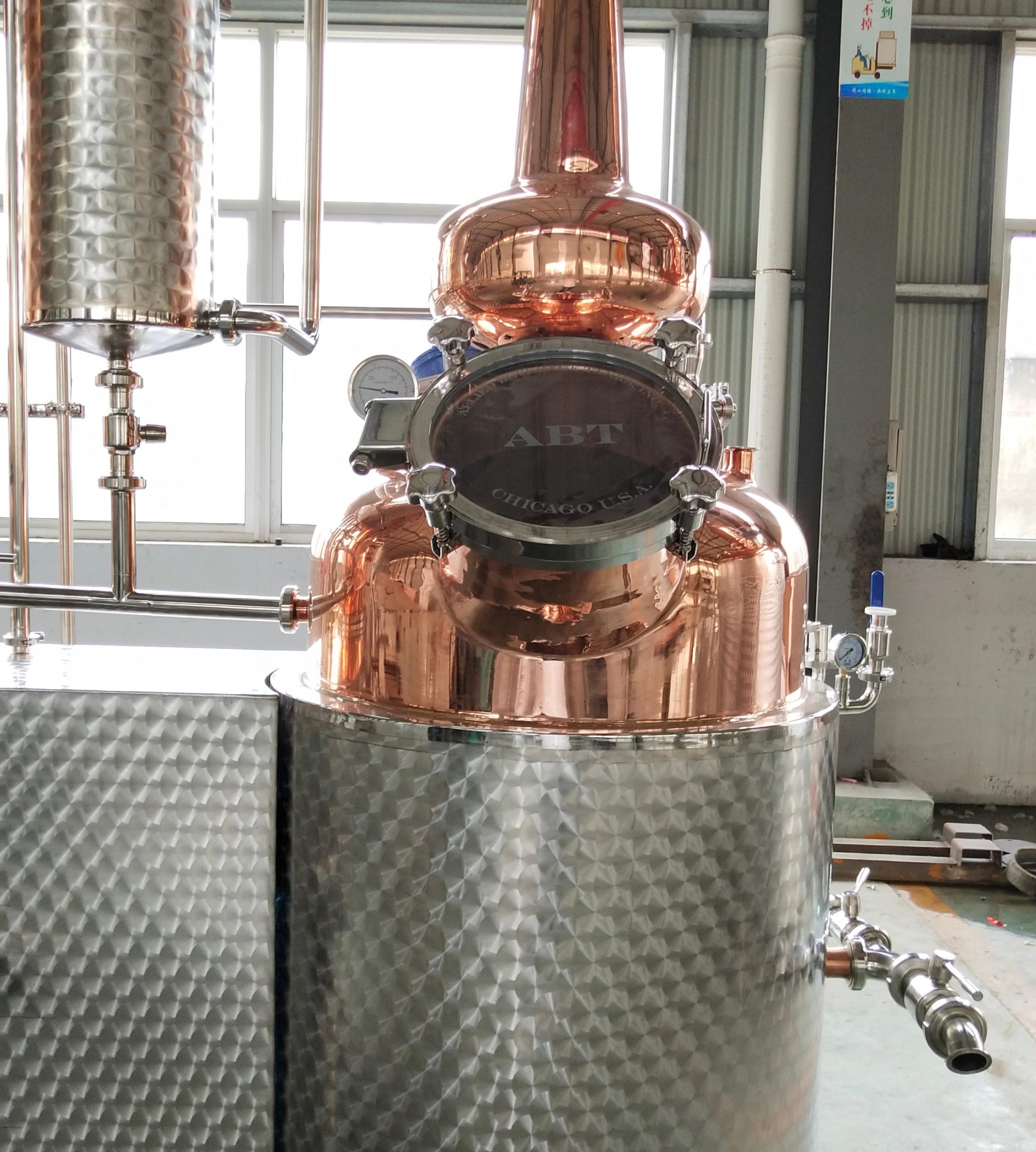

Traditional Copper Swan Neck Alembic
Classic onion-shaped copper helmet with curved swan neck lyne arm delivers proven vapor dynamics essential for whiskey, bourbon, and brandy character development.

Multi-Plate Copper Reflux Column
Copper column with 5-6 sight glasses enables real-time process monitoring. Configurable for pot still or reflux operation — supporting whiskey, gin, vodka, rum, and brandy from one system.

Integrated Gin Basket
Stainless steel botanical basket in the vapor path enables premium gin infusion. Steam extracts delicate aromatics without over-extraction for London Dry or contemporary styles.

Stainless Steel Cabinet Base
Professional cabinet housing protects condenser and auxiliary components. Clean, enclosed design maintains sanitary conditions while providing storage for tools and accessories.

Professional Parrot Collection System
Built-in parrot device enables continuous proof monitoring during distillation, allowing precise separation of heads, hearts, and tails for optimal spirit quality.

Related product display

Frequently Asked Questions

  • What is the capacity of the 200L Multi-Functional Distillation Still?

    The 200L Multi-Functional Distillation Still features a 200-liter boiler capacity. With the recommended 50-60% fill rate, you can process 100-120L of mash per batch, yielding approximately 20-30L of high-proof spirit per run.

  • Is the 200L Multi-Functional Distillation Still suitable for commercial use?

    Yes. The 200L Multi-Functional Distillation Still is designed for medium to large-scale commercial distilleries. It features professional ABT-grade construction, motorized stirring, and premium copper components, making it perfect for craft spirit brands and established distilleries looking for superior quality equipment.

  • What heating options are available for the 200L Multi-Functional Distillation Still?

    The 200L Multi-Functional Distillation Still offers multiple heating options:

    • Electric heating (recommended): 30-48 kW with digital temperature control
    • Gas/diesel burner
    • Steam heating
      The large integrated utility cabinet houses all heating controls and pumps for organized, professional operation.

  • Can I control the alcohol proof with the 200L Multi-Functional Distillation Still?

    Yes. The 200L Multi-Functional Distillation Still allows you to produce spirits ranging from 40% ABV to 95% ABV. The multi-plate copper rectification column gives you precise control over the final proof, and the multiple sight glasses let you monitor the distillation process in real-time.

  • Can I customize the configuration of the 200L Multi-Functional Distillation Still?

    Yes. The 200L Multi-Functional Distillation Still can be customized to meet your specific needs:

    • Column height and number of plates
    • Heating method (electric/gas/steam)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Additional columns for higher purity
    • Gin basket size and configuration
    • Stirrer speed and control options
    • Additional safety features
    • Custom color and finish
    • PLC control system upgrade
