100L Multifunctional Craft Spirits Distiller

Get a Quote
Stainless Steel Conical Fermenters

100L Multifunctional Distiller

100L Multifunctional Distiller
100L-Multifunctional-Distillation-Machine
00L Multifunctional Copper Distillation Machine
100L multifunctional still suitable for small-batch rum distillation
100L Multifunctional Distiller
100L-Multifunctional-Distillation-Machine
00L Multifunctional Copper Distillation Machine
100L multifunctional still suitable for small-batch rum distillation
ZR-DT-100L

100L Multifunctional Craft Spirits Distiller

Multifunctional:Whisky，Vodka，Brandy，Grappa，Tequila，Rum，Gin，Essential oil Heating method: Electric heating, steam heating (optional) Equipment Material：SUS304 / SUS316 / Red Copper — Selectable Material

Product Description:

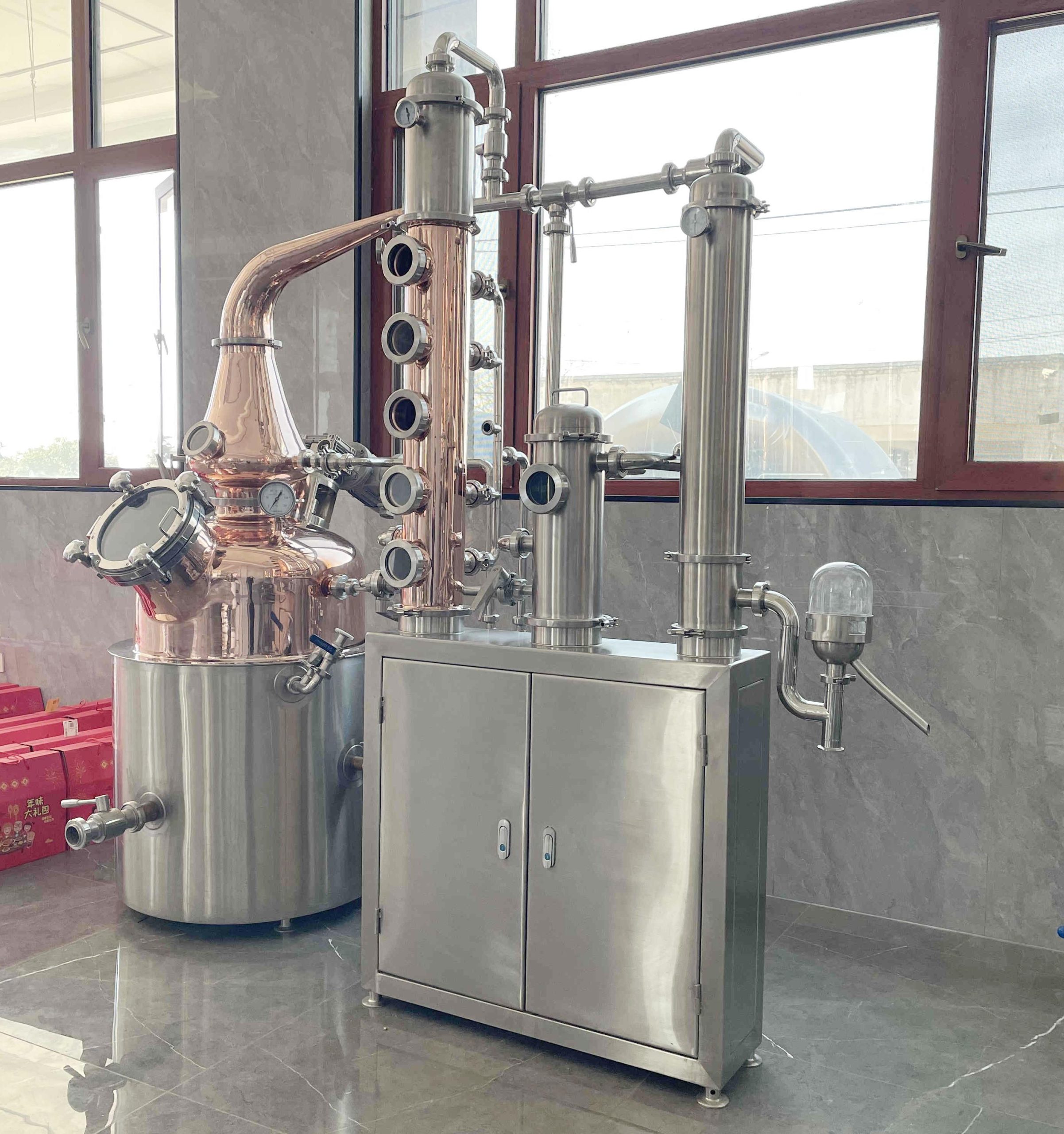

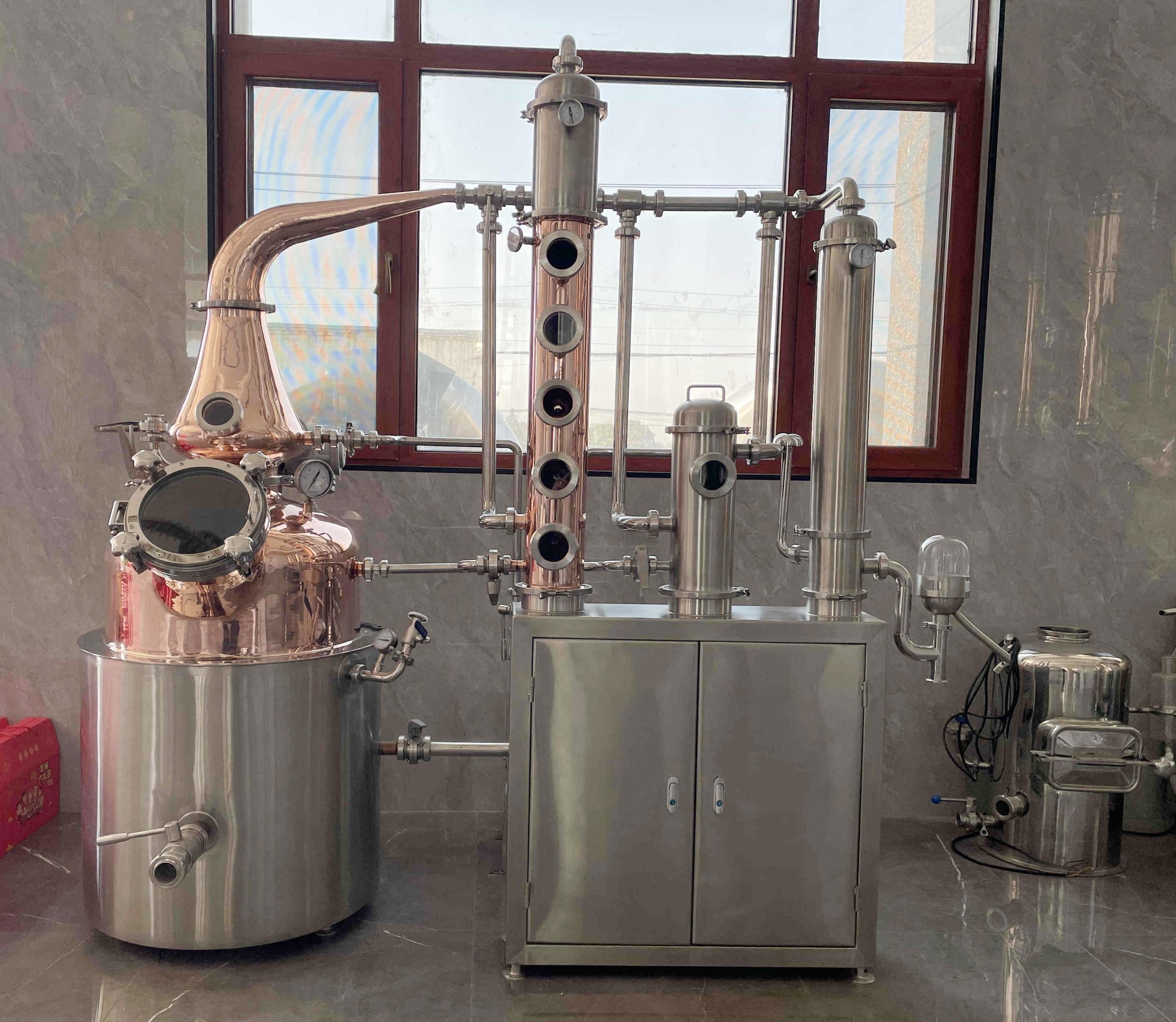

The 100L Multifunctional Distiller (Model: ZR-DT-100L) is a compact, versatile spirits distillation system designed for small commercial distilleries, craft spirits producers, and serious pilot-scale distilling operations. With an effective volume of 100 liters and a configurable still design featuring a 5-plate copper and stainless steel fractionating column, this unit supports the production of whiskey, brandy, rum, gin, and vodka within a single, adaptable system. The boiler is constructed with a red copper dome and neck for superior catalytic removal of sulfur compounds, paired with a food-grade 304 stainless steel jacket for durability and easy maintenance. Equipped with a large sight glass on the boiler, multiple observation ports along the column, precision pressure and temperature gauges, and dual condensers, the system offers full process visibility and control. Built from food-grade stainless steel and red copper based on buyer specification, it is particularly well-suited for craft distillery startups, brewpubs exploring spirits production, and investors establishing a small-scale distilling facility.

Get Free Quote

Product Parameters

Model ZR‑DT‑100L
Capacity Effective volume:100L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey,Vodka,Grappa,Brandy,Rum,Gin,Tequila,Essential oil,Hydrosol,Others
Application Home Use/Commercial
Heating Method Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

All-in-One Multi-Spirit Distillation
One hybrid copper & stainless steel system makes vodka, whiskey, brandy, rum and gin. Supports pot, reflux and column distillation modes to meet diverse flavor and high-purity production needs.

Premium Copper-SUS304 Hybrid Build
Food-grade stainless steel ensures durability; pure copper vapor-contact parts catalyze purification, remove sulfides, and deliver smoother, cleaner spirit taste for commercial-grade quality.

Visual & Adjustable Reflux Column
Sight glass windows enable real-time distillation monitoring. Modular multi-plate column offers high separation efficiency and quick adjustment for different alcohol proofs and spirit types.

Stable Heating & Precise Control
Dual electric/steam heating ensures even, scorch-free distillation. Built-in temperature and pressure gauges support precise fraction cutting for consistent batch quality and yield.

Sanitary & Low-Maintenance Design
Full tri-clamp fittings allow fast disassembly and CIP cleaning, reducing downtime and meeting commercial sanitary standards.

Compact Commercial Size
100L integrated space-saving design fits small distilleries, pilot lines, hotels and restaurants perfectly.

Multi-Purpose Usage
Capable of spirits distillation, botanical extracts, essential oils and herbal tinctures, maximizing equipment utilization and ROI.

00L Multifunctional Copper Distillation Machine

Related product display

Frequently Asked Questions

  • What is the total capacity of the 100L Multifunctional Distiller?

    The 100L Multifunctional Distiller has a boiler capacity of 100 liters. With the typical 50-60% fill rate, you can process 50-60L of mash per batch, yielding approximately 10-15L of high-proof spirit per run.

  • What materials are used in the 100L Multifunctional Distiller?

    The 100L Multifunctional Distiller features:

    • Boiler body: T2 red copper inner pot with 304 stainless steel outer jacket
    • Distillation column: 304 stainless steel with copper plates and sight glasses
    • Condenser: 304 stainless steel
    • All contact parts are made from food-grade materials, ensuring safety and quality

  • What is the alcohol yield per batch for the 100L Multifunctional Distiller?

    The 100L Multifunctional Distiller produces approximately 10-15L of 90-95% ABV neutral spirit (vodka) per 100L mash, depending on the original sugar content of your wash and fermentation efficiency. For whiskey or brandy, the yield may vary based on your recipe.

  • Can I adjust the alcohol proof when using the 100L Multifunctional Distiller?

    Yes, the 100L Multifunctional Distiller allows you to produce spirits ranging from 40% ABV up to 95% ABV. The rectification column with multiple plates gives you precise control over the final proof. By using more plates, you achieve higher alcohol concentration; fewer plates produce a lower-proof, more flavorful spirit.

  • Can I customize the configuration of the 100L Multifunctional Distiller?

    Yes. The 100L Multifunctional Distiller can be customized to meet your specific needs, including:

    • Column height and number of plates
    • Heating method (electric/gas/steam)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Copper or stainless steel columns
    • Additional safety features (overheat protection, pressure relief valves)
    • Custom color and surface finish
    • Digital or PLC control systems
