100L Gin Distiller

ZR-DT-100L

100L Gin Distiller

100L Spirits per Batch Electric / Steam / Direct Fire Heating Turnkey Distillation Project

Product Description:

The 100L Gin Distiller is a compact copper distillation system designed for small-batch and craft gin production. It is suitable for craft distilleries, boutique spirit producers, and small-scale producers looking to make premium gin with distinctive botanical profiles. Equipped with a gin basket for botanical infusion, the system allows botanicals such as juniper, herbs, spices, and citrus peels to contribute their natural aromas and flavors during distillation. Its 100L capacity provides a practical solution for flexible, small-batch gin production while maintaining the traditional character of copper distillation.

Get Free Quote

Product Paramenters

Model ZR‑DT‑100L
Capacity Effective volume:100L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Gin
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

100L Compact Capacity
The 100L working capacity is ideal for craft distilleries, boutique gin producers, pilot production, and small-batch spirit development, offering flexibility without requiring a large production footprint.

Premium Copper Construction
The copper still body provides excellent heat transfer and helps promote the traditional character of gin and other spirits while delivering a durable and professional appearance.

Dedicated Gin Basket
The integrated gin basket allows botanicals such as juniper, herbs, spices, and citrus peels to be infused during distillation, helping preserve their delicate natural aromas and flavors.

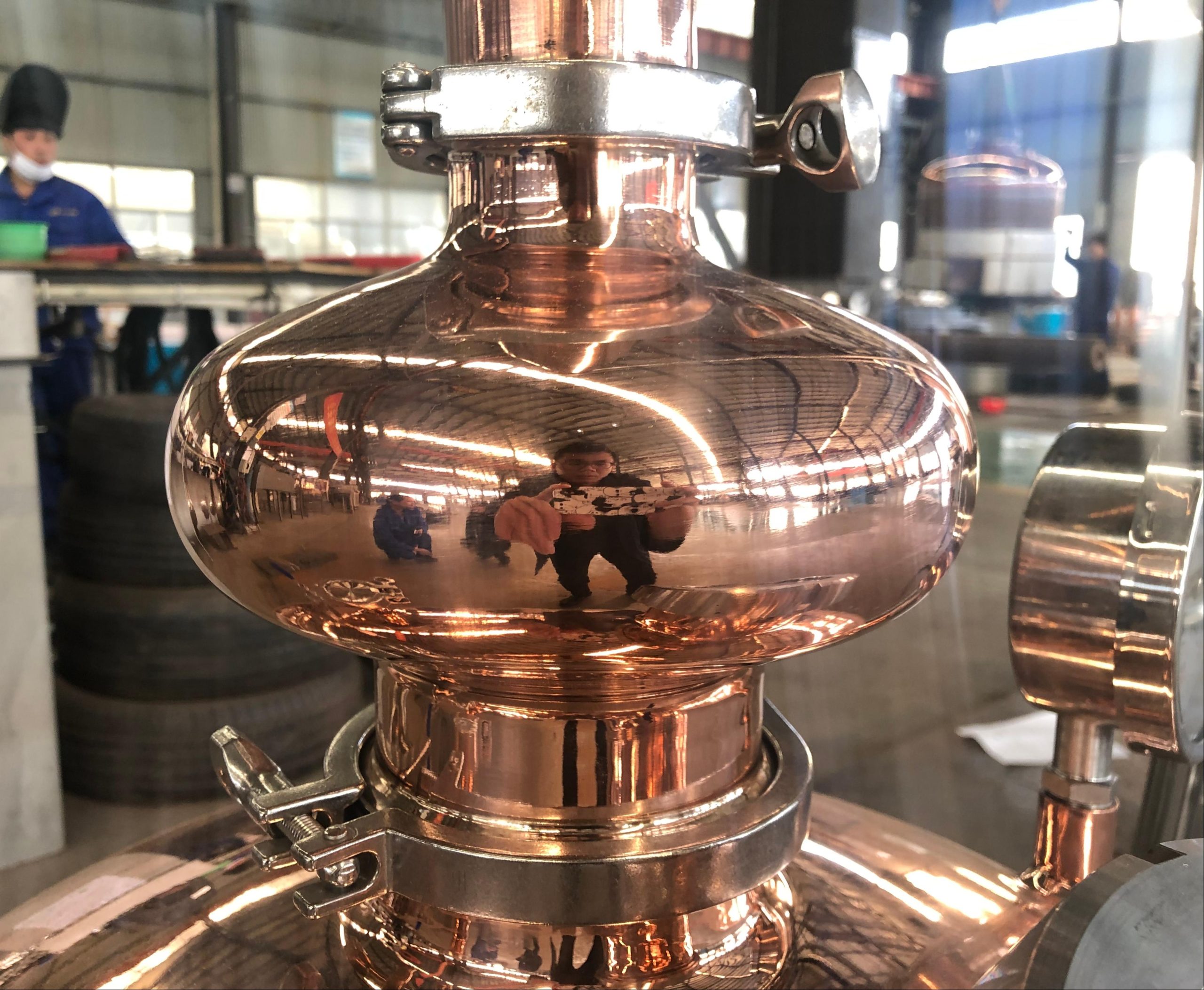

Onion Head Design
The onion-shaped still head provides additional vapor space and promotes smoother vapor circulation, contributing to better separation and a refined spirit profile.

Efficient Condensation System
The matching condenser efficiently converts alcohol vapor into liquid spirit, supporting stable and consistent distillation performance.

Flexible Heating Options
The system can be configured with electric heating, steam heating, or optional gas direct-fire heating, allowing customers to select a heating method according to their production conditions and energy availability.

CIP-Ready Configuration
The cleaning-in-place (CIP) pipe system simplifies internal cleaning and maintenance, helping improve production efficiency and hygiene between batches.

Small-Batch Production Flexibility
The compact configuration is suitable for recipe development, seasonal gin production, experimental batches, and commercial craft distilling.

Expandable Distillation System
The configuration can be customized with additional columns, condensers, piping, valves, and other components to meet different gin production and process requirements.

Related product display

Frequently Asked Questions

  • What is the exact capacity of this gin still, and what is the expected yield?

    The boiler has a working capacity of 100 liters. For gin production, you typically fill the pot with the wash (or neutral spirit and water) up to about 80% of the total volume to allow for boiling expansion (around 80L). The final yield depends on the ABV of your base spirit and your desired cut points, but generally, a 100L batch can produce approximately 10 to 20 liters of high-proof gin concentrate, which will be diluted down to bottling strength (usually 40-45% ABV).

  • What are the specific components visible in this setup, and what are their functions?

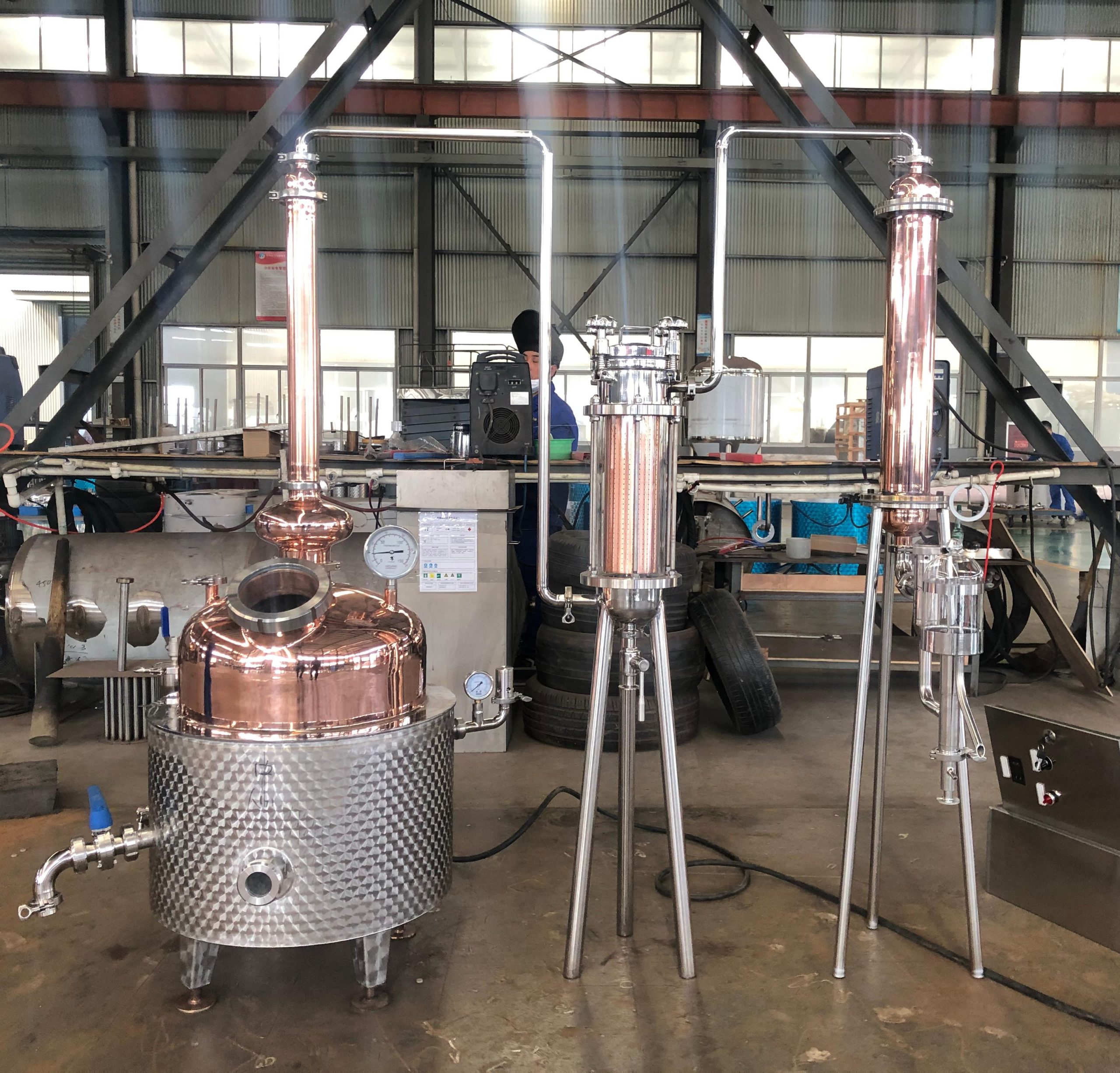

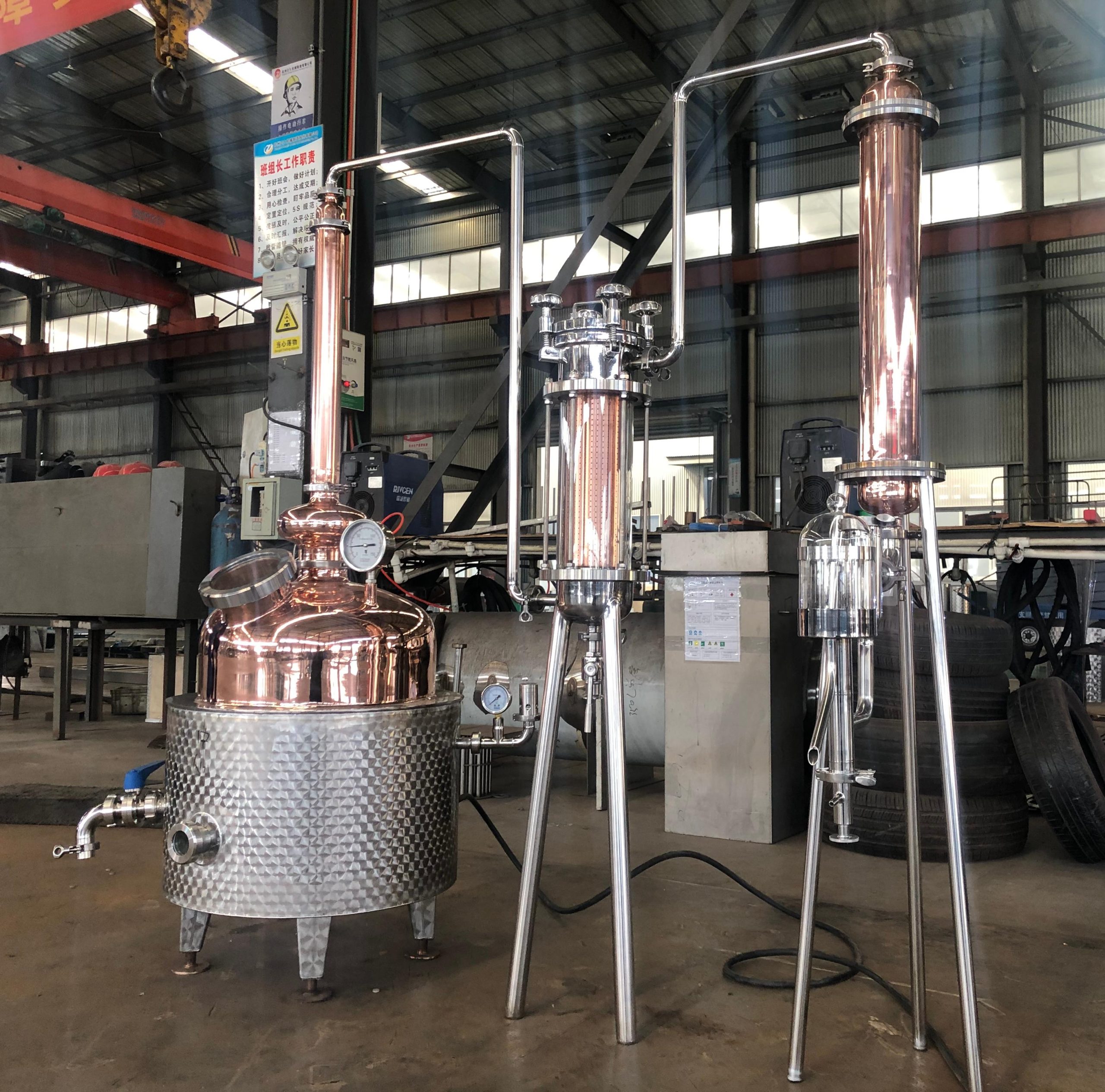

    This unit features a “multi-column” design specifically for flavor extraction:

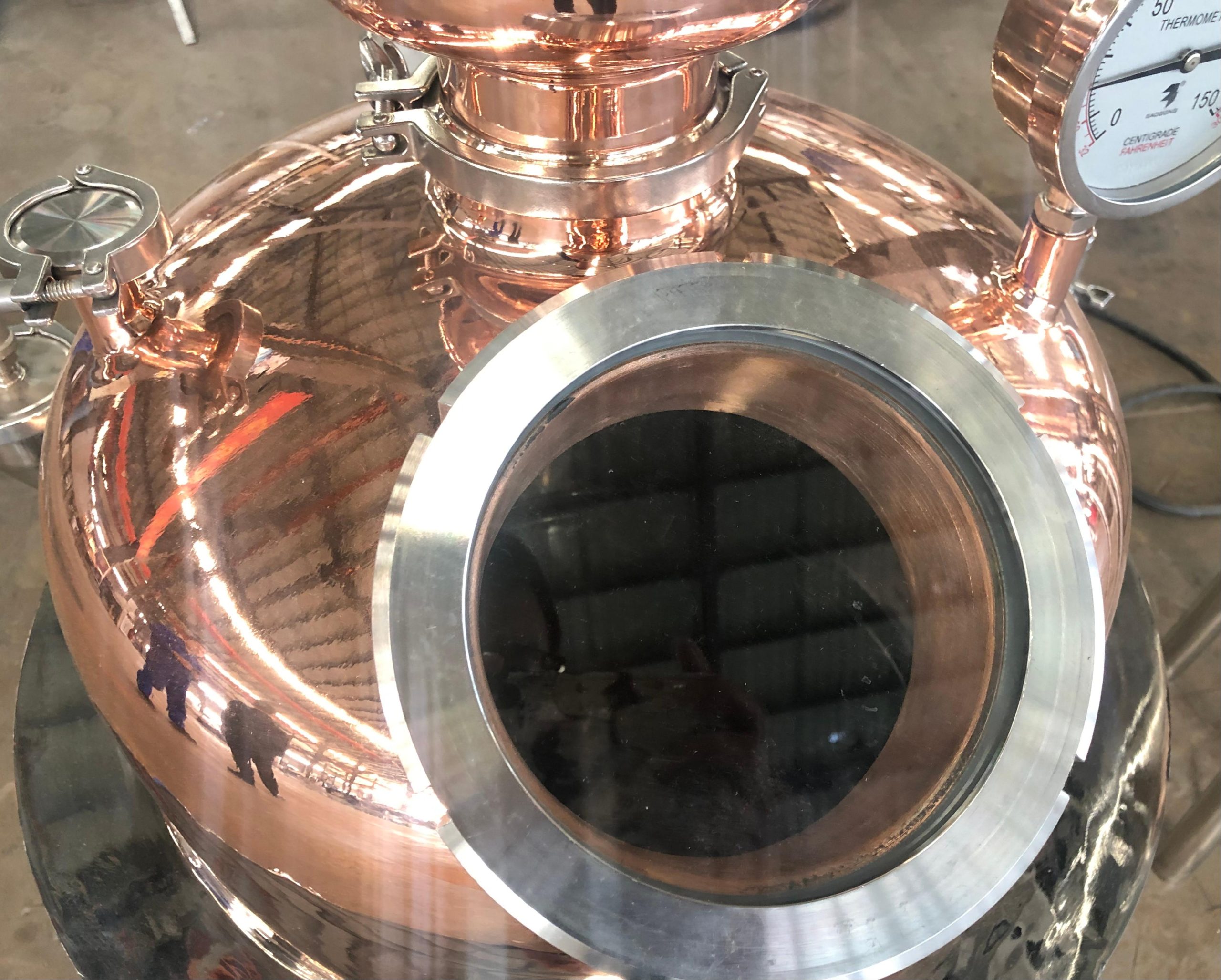

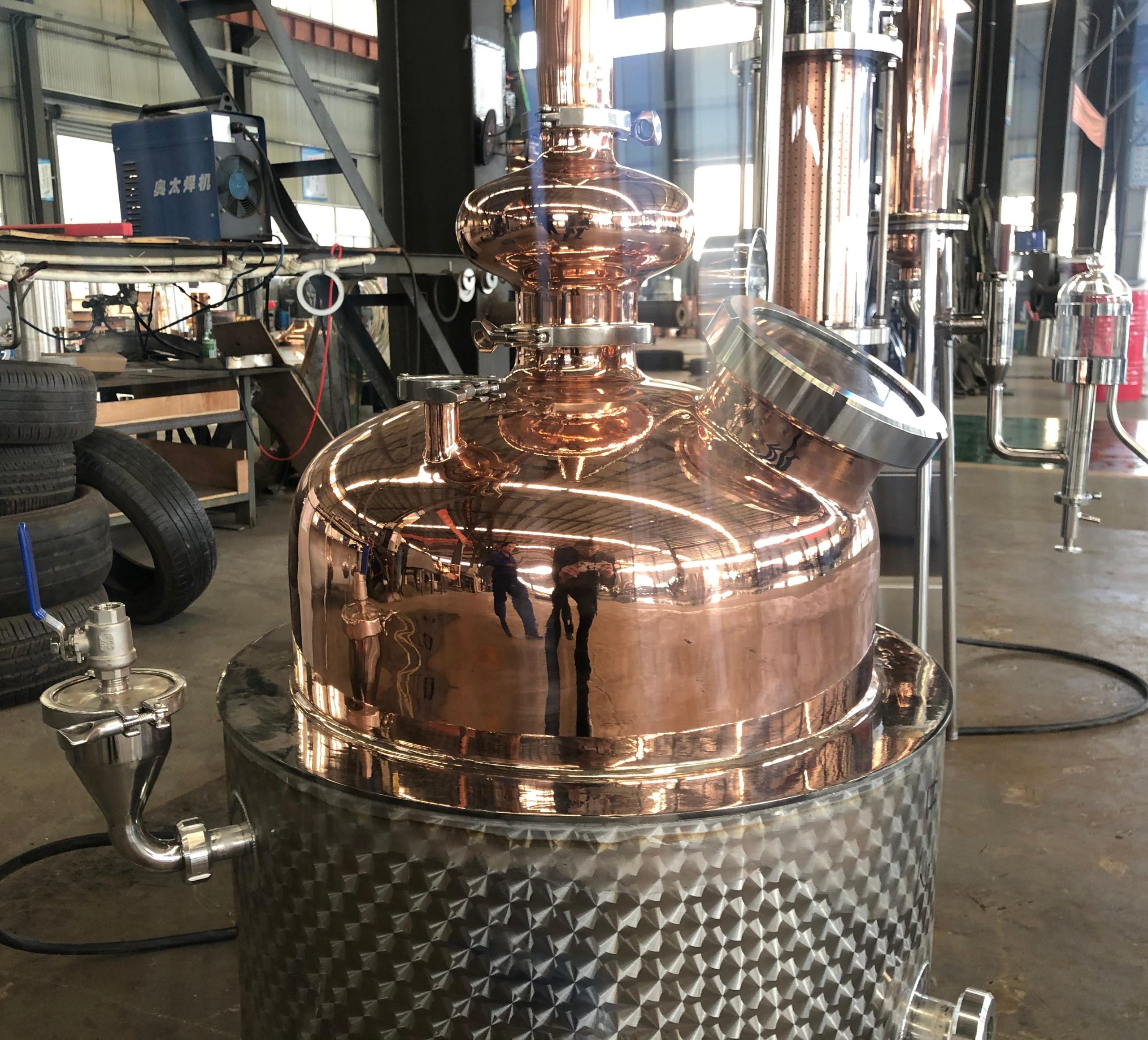

    • The Boiler (Pot): Made of copper and wrapped in a stainless steel insulated jacket, it holds the base liquid and provides even heating.

    • The Gin Basket (Column 1): A glass-column mounted on a tripod. This is where you place your botanicals (juniper, coriander, citrus peel, etc.). The alcohol vapor passes through this basket to extract the essential oils and flavors.

    • The Rectification Column / Condenser (Column 2): A tall copper column that allows for reflux (re-condensing vapor back into the pot) to increase the purity of the vapor before it hits the final condenser and drips out as a clear liquid.

  • What are the available heating options for this 100L still?

    We offer three main heating methods:

    1. Electric Heating: Built-in electric heating rods inside the boiler (requires 220V or 380V power).

    2. Steam Heating: A steam jacket that requires an external steam generator.

    3. Direct Fire (Gas): A burner system at the bottom (often used for traditional whisky-style distillation).

  • What is the minimum order quantity (MOQ) and packaging for shipping?

    MOQ is 1 set. The equipment will be securely packed in a standard exporting wooden case, with fragile glass components wrapped in foam and plastic. We can arrange sea freight, air freight, or express shipping depending on your location.

  • Can you customize the capacity, voltage, or even the column height based on my specific recipe?

    Absolutely. We offer OEM/ODM services. We can adjust the heating power to match your local voltage (e.g., 110V/60Hz for the US, 380V/50Hz for Europe). We can also increase the size of the Gin Basket or add extra sight glasses (for observing the distillate) based on your specific production requirements.
