100L Column Still for Whiskey Distillation

ZR-DT-100L

100L Column Still for Whiskey Distillation

Compact Pure Column Still Design Ideal for Small Distilleries & Pilot Brewing Flexible Electric/Steam/Gas Heating

Product Description:

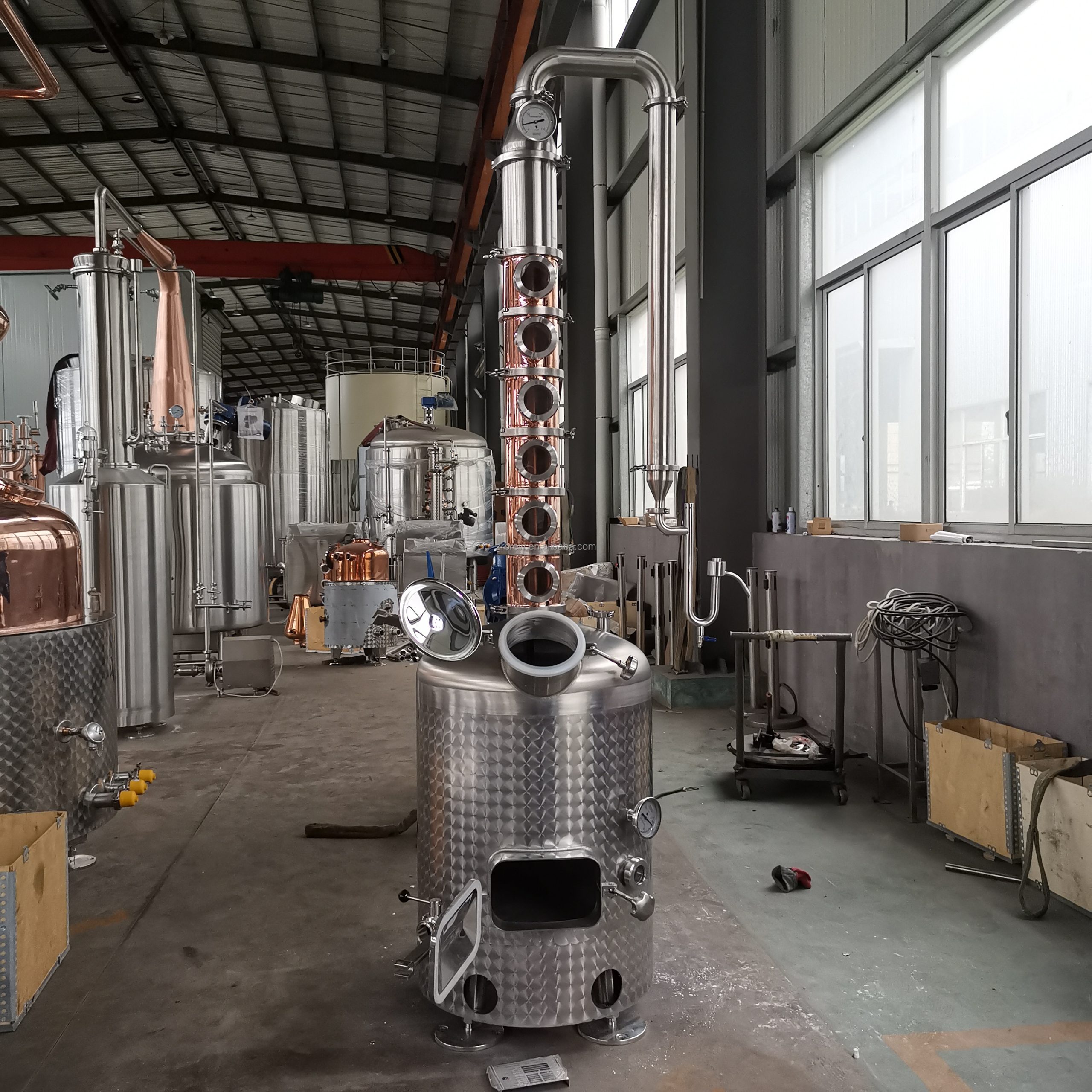

The 100L Column Still (Direct Fire) is a compact, vertical column distillation system with a traditional gas/wood fire heating option, ideal for small‑batch whiskey production and craft distilling. Featuring a 100‑liter diamond‑plate stainless steel boiler with dome sight glass and bottom firebox, a tall copper‑and‑stainless‑steel fractionating column (6 sight glasses), a U‑tube condenser with pressure gauge, and a side drain valve. The 6‑plate column provides superior separation efficiency compared to simpler designs, enabling precise reflux control for producing a wide range of spirit profiles — from rich, characterful whiskey to high‑proof neutral spirits. The direct fire heating option offers flexibility for locations without reliable electric supply, or for distillers preferring traditional flame‑heated operation.

Get Free Quote

Product Paramenters

Model ZR‑DT‑100L
Capacity Effective volume:100L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

Direct Fire Heating System
Gas or wood-fired heating design provides traditional distillation experience with high heat output and no electrical requirements — ideal for outdoor operations, off-grid locations, and facilities without electrical infrastructure.

100L Compact Entry-Level Capacity
100L pot volume ideal for craft distillery startups, pilot operations, and experimental whiskey production. Perfect entry point for learning distillation techniques before scaling to larger systems.

Tall Multi-Plate Reflux Column
Extended column with 5-6 sight glasses and copper plates enables high-purity distillation while maintaining flexibility for whiskey character. Visual monitoring allows precise process control at each plate level.

Integrated Fire Box Design
Dedicated fire box compartment at pot base contains the heating source — improving safety, directing heat efficiently, and allowing use of gas burners or wood fuel.

Dual Top Openings
Two large openings on pot top provide versatile access for charging, cleaning, and ingredient additions — enhancing operational flexibility during production.

Side Manway for Easy Cleaning
Large side access door enables easy internal cleaning and grain removal — essential for maintaining hygiene and preventing flavor carryover between batches.

Robust Industrial Construction
Heavy-duty stainless steel construction with hammered finish provides durability for direct fire applications and demanding distillery environments.

Related product display

Frequently Asked Questions

  • What is the capacity of the 100L Column Still for Whiskey Distillation (Direct Fire)?

    The 100L Column Still for Whiskey Distillation (Direct Fire) features a 100-liter boiler capacity. With the recommended 70-80% fill rate, you can process 70-80L of wash or mash per batch, yielding approximately 10-20L of high-proof spirit per run.

  • What makes the direct fire heating version different from electric models?

    The 100L Column Still for Whiskey Distillation (Direct Fire) differs from electric models in several ways:

    • Uses gas (propane/natural gas) burner instead of electric elements
    • Provides more traditional heating method favored by some distillers
    • Can produce slightly different flavor profile due to heat distribution
    • No electrical requirements (ideal for off-grid locations)
    • Lower operating cost in areas with cheap gas
    • Traditional moonshine still design

  • What type of burner is used for the 100L Column Still for Whiskey Distillation (Direct Fire)?

    The 100L Column Still for Whiskey Distillation (Direct Fire) can use:

    • Propane (LP gas) burner: most common for mobile or outdoor operations
    • Natural gas burner: for fixed installations with gas supply
    • Butane burner: alternative option
    • The still includes a burner mounting area at the bottom
    • Adjustable flame control for temperature management
    • Burner not typically included (sold separately to allow customer choice)

  • Can I control the alcohol proof with the 100L Column Still for Whiskey Distillation (Direct Fire)?

    Yes. The 100L Column Still for Whiskey Distillation (Direct Fire) offers multiple proof control options:

    • Use all plates for maximum proof (90-95% ABV)
    • Bypass some plates for lower-proof, more flavorful spirits
    • Traditional cut management (foreshots, heads, hearts, tails)
    • Parrot/spout for real-time ABV monitoring
    • Flame control affects distillation speed and proof
    • Can produce everything from 40% ABV to 95% ABV

  • Can the 100L Column Still for Whiskey Distillation (Direct Fire) produce authentic moonshine?

    Yes. The 100L Column Still for Whiskey Distillation (Direct Fire) is ideal for producing:

    • Traditional moonshine and white whiskey
    • High-proof neutral spirits
    • Corn whiskey
    • The direct fire heating method is traditional for moonshine production
    • Column design allows for high-proof output
    • Perfect for craft distillers seeking traditional methods
