150L Hybrid Pot & Column Still for Whiskey Distillation

Get a Quote
Stainless Steel Conical Fermenters

150L Pot and Column Still Whiskey Distiller

ZR-DT-150L

150L Pot and Column Still Whiskey Distiller

150L Medium-Batch Production Red Copper Pot & Column with SS Base Classic Pot & Column Hybrid System

Product Description:

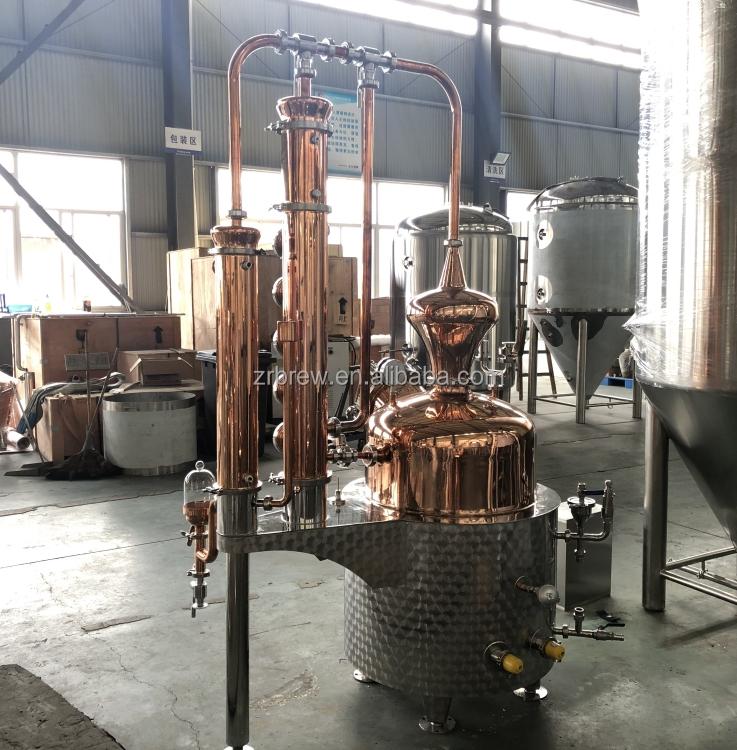

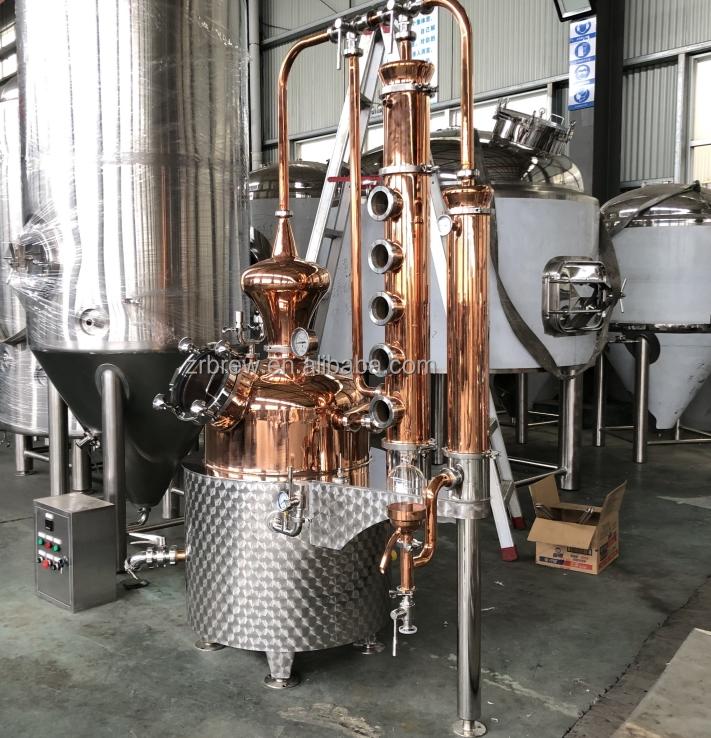

The 150L Pot and Column Still is a compact, dual‑mode whiskey distillation system combining traditional pot‑still character with column distillation efficiency. Featuring a 150‑liter diamond‑plate stainless steel boiler with a polished copper dome, onion helmet, and sight glass, connected to a tall copper fractionating column (4 sight glasses) and a copper condenser — all with full copper piping and precision gauges. The copper dome and helmet promote catalytic sulfur removal for clean, characterful spirit production, while the 4‑plate column provides adjustable reflux control. Dual‑mode operation allows traditional pot‑still runs for rich, complex whiskey, or column‑assisted distillation for higher‑proof spirits. Ideal for small‑batch craft distilleries and tasting rooms.

Get Free Quote

Product Paramenters

Model ZR‑DT‑150L
Capacity Effective volume:150L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

Dual-Mode Pot and Column Design
Versatile hybrid configuration combines traditional copper pot still with reflux column — enabling operators to switch between pot still mode (for whiskey character) and reflux mode (for higher purity) in a single system.

150L Craft-Scale Capacity
150L pot volume delivers increased batch yields for growing craft distilleries — bridging the gap between pilot-scale 50L systems and larger commercial operations.

Premium Copper Alembic with Swan Neck
Traditional copper alembic dome with curved swan neck delivers authentic vapor dynamics for whiskey flavor development. Copper’s catalytic properties remove sulfur compounds for smooth, complex spirits.

Multi-Plate Copper Reflux Column
Copper column with 3-4 sight glasses enables visual monitoring of reflux action — allowing operators to achieve high-purity spirits when reflux mode is selected for vodka or neutral spirits.

Full Copper Condenser & Spirit Safe
Premium copper condenser and spirit safe maintain maximum copper contact throughout the entire vapor path — enhancing spirit quality and consistency beyond stainless steel alternatives.

Hammered Stainless Steel Pot Base
Premium dimpled stainless steel pot body provides durability and professional aesthetic while the copper top delivers maximum spirit quality — the best of both worlds.

Oversized Manway for Easy Cleaning
Large manway opening enables easy internal access for cleaning — essential for maintaining hygiene and preventing flavor carryover between different spirit production runs.

Related product display

Frequently Asked Questions

  • What makes the 150L Pot and Column Still Whiskey Distiller unique?

    The 150L Pot and Column Still Whiskey Distiller features several unique design elements:

    • Hybrid pot still and column still design in one system
    • Professional copper construction for premium quality
    • Copper onion head for traditional character
    • Multiple sight glasses for visual monitoring
    • Versatility to produce any spirit type
    • Compact design suitable for small commercial spaces
    • Beautiful artisanal appearance for tours and tastings

  • What heating options are available for the 150L Pot and Column Still Whiskey Distiller?

    The 150L Pot and Column Still Whiskey Distiller offers multiple heating options:

    • Electric heating (recommended): 12-18 kW immersion elements
    • Steam jacket heating: for more even heat distribution
    • Gas burner: propane or natural gas
    • Induction heating: efficient and precise
      Electric heating provides consistent temperature control and is easiest to install.

  • Can I control the alcohol proof with the 150L Pot and Column Still Whiskey Distiller?

    Yes. The 150L Pot and Column Still Whiskey Distiller offers multiple proof control options:

    • Pot still mode: 60-70% ABV (traditional whiskey character)
    • Column mode: 90-95% ABV (vodka-quality neutral spirit)
    • Hybrid mode: variable proof depending on column plates used
    • Parrot/spout for real-time ABV monitoring
    • Traditional cut management (foreshots, heads, hearts, tails)

  • What utilities do I need for the 150L Pot and Column Still Whiskey Distiller?

    The 150L Pot and Column Still Whiskey Distiller requires:

    • Electricity: 3-phase, 380V/50Hz (for electric heating option)
    • Cooling water: continuous flow of 300-500 L/hour for condenser
    • Drainage: floor drain for cleaning and waste water
    • Ventilation: adequate airflow for safe operation
    • Water source for cooling system (recirculating chiller recommended)

  • Can I customize the 150L Pot and Column Still Whiskey Distiller?

    Yes. The 150L Pot and Column Still Whiskey Distiller can be customized:

    • Number of plates (more or fewer than standard 4-5)
    • Column height and diameter
    • Heating method (electric/steam/gas)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Addition of botanical basket for gin production
    • Control panel upgrades
    • Custom finishes and branding
      Contact us for custom configurations.
