750L Column Still for Whiskey Distillation

ZR-DT-750L

750L Column Still for Whiskey Distillation

Whisky Type: Single Malt Whisky, Grain Whisky, Craft Whisky, Whisky Base Spirit Column Configuration: Copper Column, Distillation Column, Onion Head, Dephlegmator, Condenser, Vapor Pipe Equipment Material: Red Copper, SUS304 Stainless Steel, SUS316 Stainless Steel — Customized

Product Description:

This 750L Column Still for Whiskey Distillation is a commercial column distillation system dedicated to whiskey production. It is engineered for mid-to-large craft distilleries to run high-volume, stable whiskey batches. Equipped with copper dome and copper column for sulfur removal to deliver clean and flavourful whiskey spirit. It adopts dimpled stainless steel boiler, shell-and-tube condenser with thermometers, multi-compartment collection tank, triclamp fittings and comprehensive gauge monitoring. Adjustable reflux control supports flexible spirit profile tuning, ranging from rich whiskey to higher-proof spirits. Multiple sight glasses, thermometers and pressure gauges provide full process visibility. Built-in stirrer ensures uniform heating and consistent distillation results for continuous commercial whiskey manufacturing.

Get Free Quote

Product Paramenters

Model ZR‑DT‑750L
Capacity Effective volume:750L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

750L Large Commercial Capacity
750L pot volume delivers substantial batch yields for established distilleries — positioned between 500L and 1000L systems for flexible high-volume production scaling.

Premium Copper Alembic & Reflux Column
Large copper alembic dome with reflux column featuring 4-5 sight glasses — combining traditional copper contact for flavor development with modern reflux capability for spirit purity control.

Integrated Motor Stirrer
Built-in motor stirrer ensures efficient wash mixing and uniform heat distribution — critical for consistent extraction and optimal distillation performance at 750L commercial scale.

Integrated Multi-Compartment Collection System
Built-in stainless steel collection cabinet with multiple compartments and valves enables simultaneous collection of different distillate fractions — streamlining the whiskey production workflow.

Professional Temperature Monitoring
Multiple gauges at critical points (pot, column, condenser) provide comprehensive process visibility — enabling precise cut decisions and repeatable batch consistency.

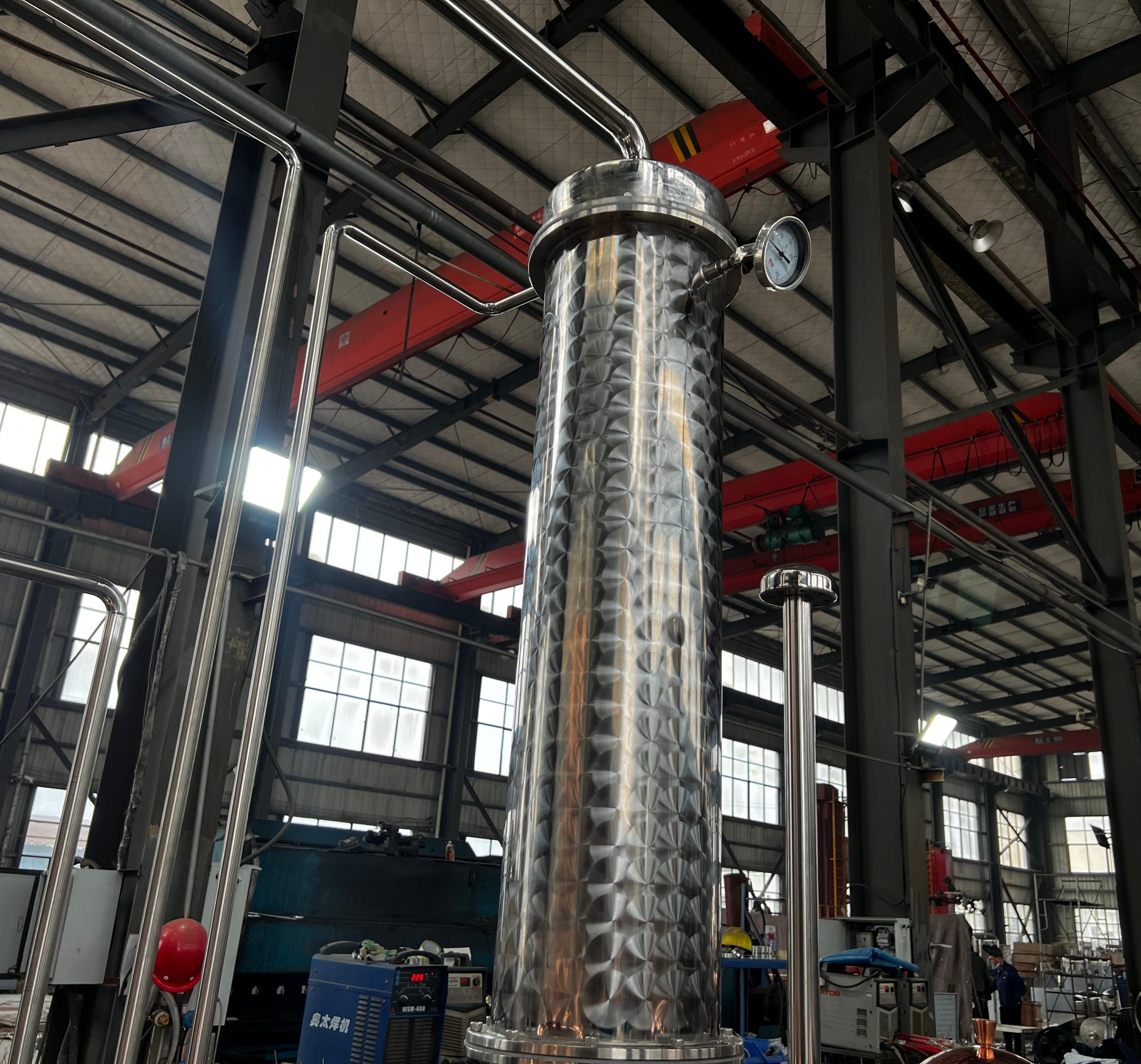

Tall Stainless Steel Condenser
Hammered stainless steel condenser provides efficient cooling for high-volume distillation runs while matching the professional aesthetic of the overall system.

Industrial-Grade Construction
Heavy-duty stainless steel base, frame, and collection cabinet provide durability and reliability for continuous commercial operation in demanding distillery environments.

Related product display

Frequently Asked Questions

  • What makes the 750L Column Still for Whiskey Distillation unique?

    The 750L Column Still for Whiskey Distillation features several unique design elements:

    • Large 750L capacity for high-volume production
    • Integrated collection/receiving vessel system
    • Separate dedicated condenser column
    • Copper dome and column for quality spirit production
    • Professional hammer finish on stainless steel
    • Complex valve system for precise control
    • Motorized stirring for consistent results
    • Complete turnkey distillation solution

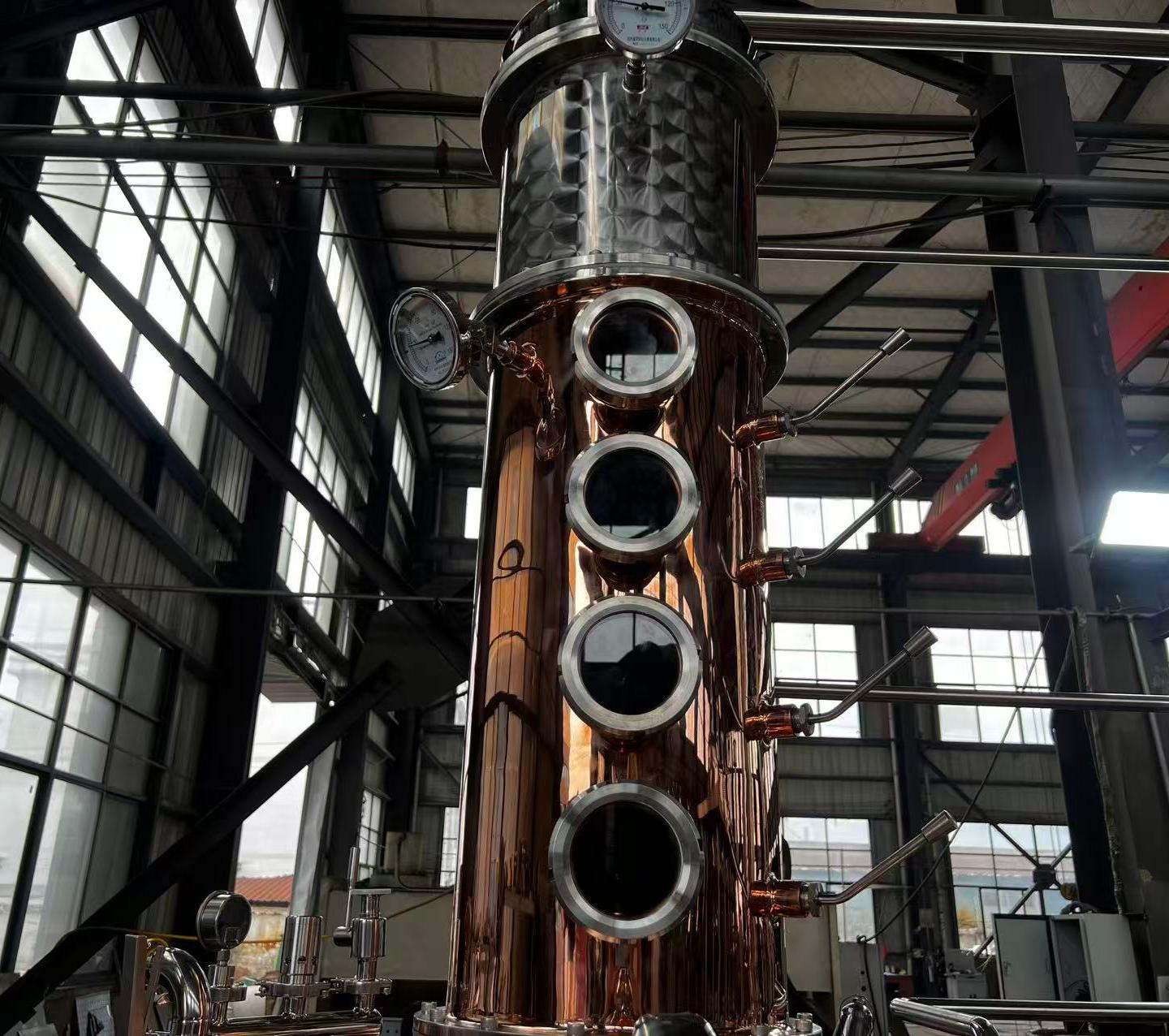

  • How many plates does the 750L Column Still for Whiskey Distillation have?

    The 750L Column Still for Whiskey Distillation features approximately 4-5 copper plates with sight glasses:

    • Each plate provides an additional distillation stage
    • Sight glasses allow visual monitoring of plate activity
    • Plates can be bypassed for lower-proof, more flavorful spirits
    • Copper plates help remove sulfur compounds
    • The plate configuration is optimized for commercial whiskey production

  • What heating options are available for the 750L Column Still for Whiskey Distillation?

    The 750L Column Still for Whiskey Distillation offers multiple heating options:

    • Electric heating (recommended): 60-80 kW immersion elements
    • Steam jacket heating: for most even heat distribution
    • Gas burner: propane or natural gas
    • External steam coils: cost-effective option
      The small stainless steel control cabinet houses the heating controls.

  • Can I control the alcohol proof with the 750L Column Still for Whiskey Distillation?

    Yes. The 750L Column Still for Whiskey Distillation offers multiple proof control options:

    • Use all plates for maximum proof (90-95% ABV)
    • Bypass some plates for lower-proof, more flavorful spirits
    • Traditional cut management using collection vessels
    • Multiple parrot/spouts for real-time ABV monitoring
    • Temperature control affects proof output
    • Can produce everything from 40% ABV to 95% ABV

  • Can I customize the 750L Column Still for Whiskey Distillation?

    Yes. The 750L Column Still for Whiskey Distillation can be customized:

    • Number of plates (more or fewer than standard 4-5)
    • Column height and diameter
    • Heating method (electric/steam/gas)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Collection vessel configuration
    • Additional columns or/gin basket
    • Control panel and automation upgrades
    • Custom finishes and branding
    • PLC/SCADA automation systems
      Contact us for custom configurations.
