300L Gin Distiller

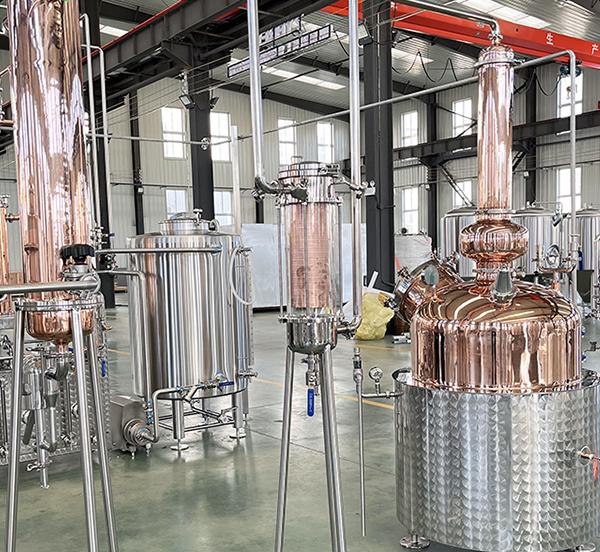

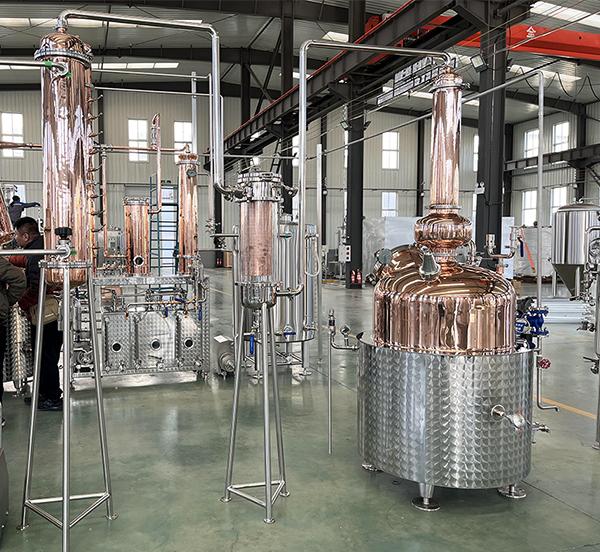

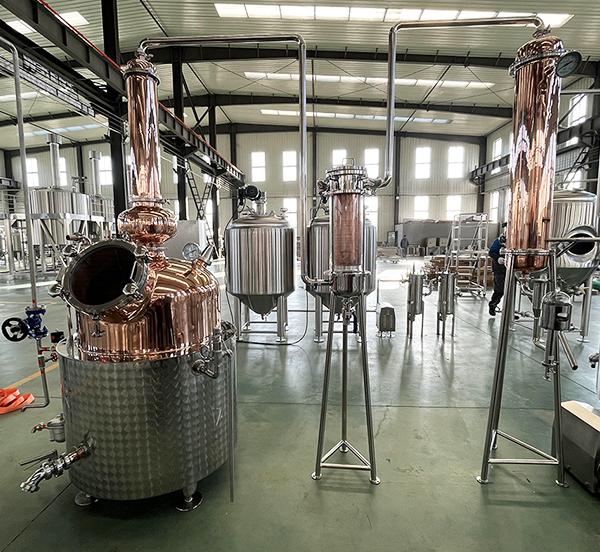

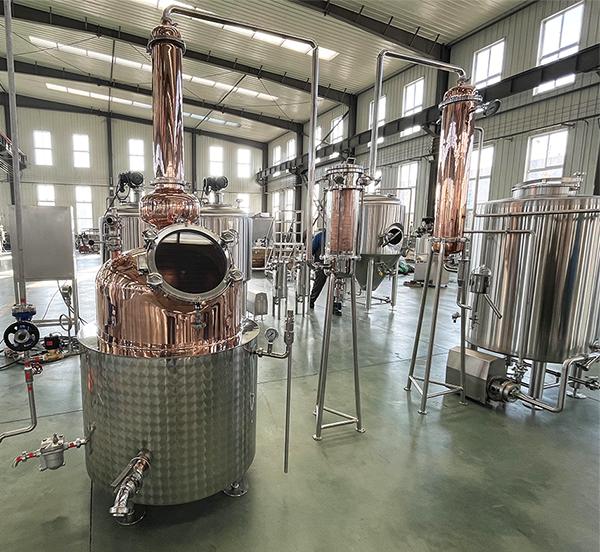

300L gin distiller for botanical spirit production
300L gin distiller for botanical spirit production
ZR-DT-300L

300L Gin Distiller

Commercial & Craft Distillery Customized Voltage & Plug Available High Purity Alcohol Extraction

Product Description:

This 300L Gin Distiller is a high-capacity, modular distillation system featuring a separate copper gin basket and condenser, specifically engineered for established mid-sized craft distilleries and expanding commercial micro-distilleries ready to scale up production. Designed to handle larger volumes while maintaining intense flavor purity, this unit utilizes a premium botanical infusion process to produce high-quality craft gin, vodka, and white spirits with exceptional consistency and speed.

Get Free Quote

Product Paramenters

Model ZR‑DT‑100L
Capacity Effective volume:100L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Gin
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

Mid-to-Large Scale Production
With a 300L working capacity, this system is purpose-built for commercial distilleries scaling up from pilot or craft operations, delivering higher throughput while preserving the agility needed for seasonal batches and new recipe trials.

Copper Craftsmanship for Flavor Purity
The copper still body and column actively catalyze the removal of harsh sulfur-based off-flavors during distillation. The result is a noticeably rounder, more refined spirit with enhanced aromatic clarity and mouthfeel.

Independent Gin Basket for Vapor-Phase Infusion
The separate copper gin basket exposes botanicals to alcohol vapor rather than liquid wash, enabling a cleaner, more vibrant extraction of essential oils. This method delivers bright, true-to-botanical flavors with exceptional batch-to-batch reproducibility.

Precision Reflux Control via Dephlegmator
The dephlegmator (partial condenser) installed atop the column gives distillers fine-grained control over reflux ratio. This feature allows seamless switching between heavily flavored gins and neutral, high-purity vodkas without reconfiguring the entire system.

High-Efficiency Tubular Condenser
The matched condenser provides rapid and stable vapor-to-liquid conversion, ensuring consistent output rates even during extended production runs, with minimal temperature fluctuation.

Adaptable Energy Inputs
Choose from electric heating for precision and cleanliness, steam heating for rapid temperature response, or direct gas firing for traditional craft appeal—whichever best fits your facility setup and energy costs.

Automated CIP for Streamlined Turnaround
The built-in CIP plumbing system enables thorough, automated cleaning between batches. This eliminates flavor carryover, reduces manual intervention, and shortens changeover time, keeping production lines running smoothly.

Versatile Spirit Portfolio
One still, multiple spirits. Produce gin, vodka, white whiskey, or other neutral spirits with simple operational adjustments, giving you the freedom to respond to market trends and customer demand without additional capital investment.

Scalable Modular Architecture
The system’s modular design supports future expansion. Additional rectifying sections, condensers, or automated control valves can be integrated as your production needs evolve, protecting your investment over the long term.

Related product display

Frequently Asked Questions

  • What is the actual working capacity of this 300L unit?

    The total volume of the copper pot is 300 liters. However, for safety and to allow for liquid expansion during boiling, the recommended working capacity is about 240L to 270L (80% to 90% of total volume).

  • What is the large stainless steel tank next to the still for?

    This is a Receiving Tank (or Collection Tank). Since 300L is a commercial scale, you need a safe place to collect the final distillate. This tank is usually equipped with a level gauge and a bottom discharge valve. It simplifies the collection process, protects the spirit from evaporation, and allows you to mix the hearts cut properly before bottling.

  • What is the difference between the "Gin Basket" in this setup compared to smaller models?

    The function remains the same (vapor infusion of botanicals), but on a 300L scale, the basket is significantly larger to hold the higher quantity of botanicals needed for a 300L batch. Because it is mounted on a sturdy three-legged stand, it provides better structural stability and can be easily removed, cleaned, and refilled with fresh botanicals.

  • What kind of heating options are available for this 300L still?

    For a 300L capacity, efficient heating is crucial. Common options include:

    Electric heating rods (requires significant power, often 380V/3Phase).

    Steam jacket heating (highly recommended for large volumes, provides even heat distribution and prevents scorching of the wash).

    Direct fire (Gas or Wood) for traditional styles (requires a specialized insulated bottom and burner system).

  • What electrical voltage is required? Can it be customized?

    Yes, we customize the electrical system to match your local grid. We can manufacture the control panel and heating elements for 110V/60Hz, 220V/60Hz, or 380V/50Hz (3-phase) standards (e.g., US, EU, UK standard plugs).
