300L Pot and Column Still Whiskey Distiller

ZR-DT-300L

300L Pot and Column Still Whiskey Distiller

Modular Split-Stand Design Advanced Multi-Valve Piping System Integrated Spirit Safe & Collection

Product Description:

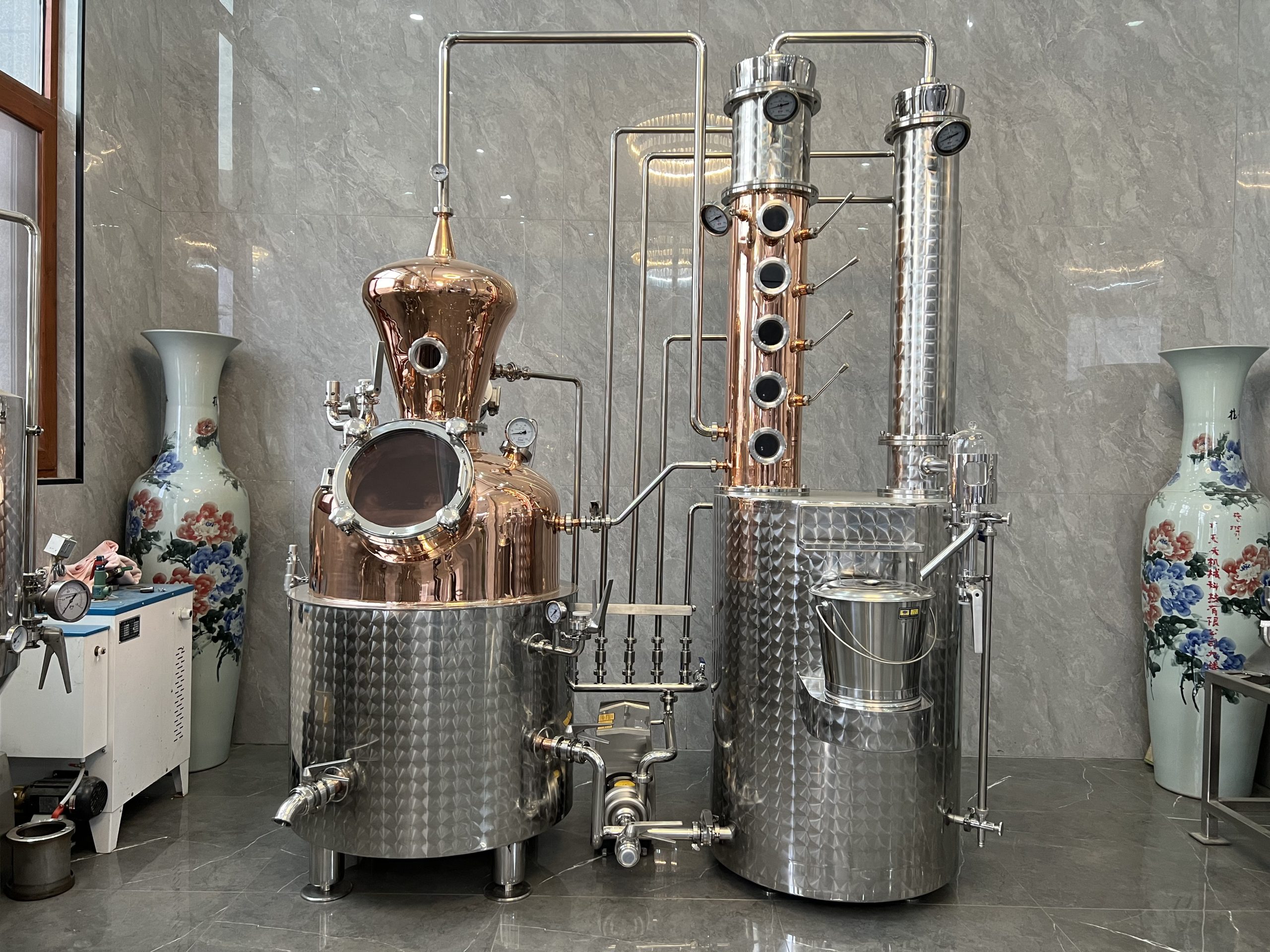

The 300L Pot and Column Still is a versatile, dual‑mode whiskey distillation system combining traditional pot‑still character with column distillation efficiency. Featuring a 300‑liter diamond‑plate stainless steel boiler with a polished copper dome, onion helmet, and oversized sight glass, connected to a tall copper fractionating column (5 sight glasses) and a dimpled stainless steel condenser — all with comprehensive gauge monitoring and sanitary tri‑clamp fittings. The copper dome and helmet deliver catalytic sulfur removal for clean, complex spirit character, while the 5‑plate column provides exceptional separation efficiency for higher‑proof production. Dual‑mode operation supports traditional pot‑still runs for rich, full‑bodied whiskey, or column‑assisted distillation for vodka and neutral spirits. The integrated collection bucket and bottom drain enable clean operation.

Get Free Quote

Product Paramenters

Model ZR‑DT‑300L
Capacity Effective volume:300L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

Dual-Mode Pot and Column Design
Versatile hybrid configuration combines traditional copper pot still with reflux column — enabling operators to switch between pot still mode (for whiskey character) and reflux mode (for higher purity) in a single system.

300L Commercial Craft Capacity
300L pot volume delivers substantial batch yields for established craft distilleries — bridging the gap between smaller craft systems and larger commercial operations.

Premium Copper Alembic with Swan Neck
Traditional copper alembic dome with curved swan neck delivers authentic vapor dynamics for whiskey flavor development. Copper’s catalytic properties remove sulfur compounds for smooth, complex spirits.

Multi-Plate Copper Reflux Column with 5 Sight Glasses
Copper column with 5 sight glasses enables precise visual monitoring of reflux action — allowing operators to optimize separation efficiency for different spirit types.

Integrated Transfer Pump System
Built-in pump enables efficient liquid movement between vessels — reducing manual handling and supporting continuous production workflows at commercial scale.

Integrated Collection System
Convenient collection bucket/container integrated into the system design — streamlining the distillation workflow and reducing setup time between batches.

Complex Multi-Valve Piping System
Sophisticated valve arrangement enables precise control of flow paths — allowing seamless switching between pot still and reflux modes for maximum operational flexibility.

Professional Temperature Monitoring
Multiple gauges at critical points provide comprehensive process visibility — enabling precise cut decisions and repeatable batch consistency.

Related product display

Frequently Asked Questions

  • What is the capacity of the 300L Pot and Column Still Whiskey Distiller?

    The 300L Pot and Column Still Whiskey Distiller features a 300-liter boiler capacity. With the recommended 70-80% fill rate, you can process 210-240L of wash or mash per batch, yielding approximately 30-50L of high-proof spirit per run, depending on the desired proof and spirit type.

  • What heating options are available for the 300L Pot and Column Still Whiskey Distiller?

    The 300L Pot and Column Still Whiskey Distiller offers multiple heating options:

    • Electric heating (recommended): 24-36 kW immersion elements
    • Steam jacket heating: for most even heat distribution
    • Gas burner: propane or natural gas
      Electric heating provides consistent temperature control and is easiest to install.

  • What utilities do I need for the 300L Pot and Column Still Whiskey Distiller?

    The 300L Pot and Column Still Whiskey Distiller requires:

    • Electricity: 3-phase, 380V/50Hz (for heating, pump, and controls)
    • Cooling water: continuous flow of 800-1200 L/hour for condenser
    • Drainage: floor drain for cleaning and waste water
    • Ventilation: adequate airflow for safe operation
    • Water source for cooling system (recirculating chiller recommended)

  • Can I customize the 300L Pot and Column Still Whiskey Distiller?

    Yes. The 300L Pot and Column Still Whiskey Distiller can be customized:

    • Number of plates (more or fewer than standard 5-6)
    • Column height and diameter
    • Heating method (electric/steam/gas)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Addition of botanical basket for gin production
    • Control panel upgrades
    • Additional collection vessels
    • Custom finishes and branding
      Contact us for custom configurations.

  • What type of whiskey is best suited for the 300L Pot and Column Still Whiskey Distiller?

    The 300L Pot and Column Still Whiskey Distiller is ideal for producing:

    • Single malt whiskey (pot still mode)
    • Irish-style whiskey (triple distillation possible)
    • Bourbon and Tennessee whiskey (column mode for efficiency)
    • Rye whiskey
    • Craft and experimental whiskeys
    • Moonshine and white whiskey
      The hybrid design allows you to produce multiple whiskey styles with one system.
