60L Home Brewing Equipment & Pilot Brewery System

ZR-60

60L Home Brewing Equipment & Pilot Brewery System

Skid-Mounted 2-Vessel + 3 Fermenters PID Semi-Auto

Product Description:

The 60L home brewing equipment is a compact, turnkey pilot brewery system that integrates a 2-vessel brewhouse, 3 conical fermenters, and chiller on a skid-mounted stainless steel frame. It is designed for advanced homebrewers, nano brewery startups, brewpubs, and commercial brewers needing a reliable solution for recipe experimentation and small-batch production with precise temperature control and sanitary design.

Get Free Quote

Product Paramenters

Item	Specification
Model	ZR-60
Production Capacity	60L / Batch
Capacity	Effective volume: 60L; Nominal volume: 90L
Material	SUS304
Combination Method	2-Vessel Brewhouse with 3 Fermenters and Chiller
Application	Brewery Experiment, Home
Heating Way	Electric Heating
Control System	Semi-Automated with PID Schneider
Voltage	Three-phase: 380V (220, 415, 480…) / 50(60)Hz
Power	6KW
Water Consumption	240L
Floor Space	5–10 m²
Note	1 Barrel (BBL) ≈ 117 Liter 1 HL = 100 Liter 1 Gallon ≈ 3.7854 Liter

Item	Production Capacity	Power (KW)	Water Consumption (L)	Floor Space (m²)
ZR-50	50L / Batch	4	200	5–10
ZR-60	60L / Batch	6	240	5–10
ZR-100	100L / Batch	8	400	5–10
ZR-150	150L / Batch	12	600	8–15

Advantage of Configuration

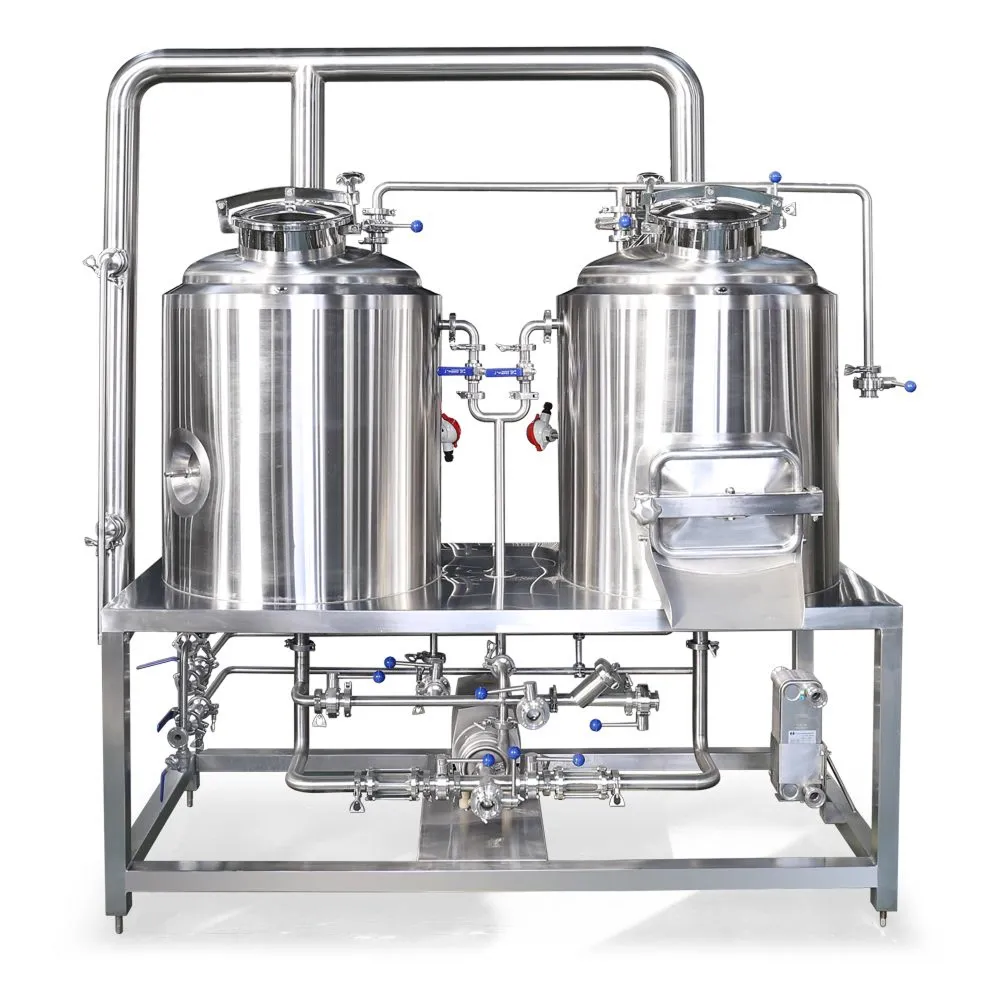

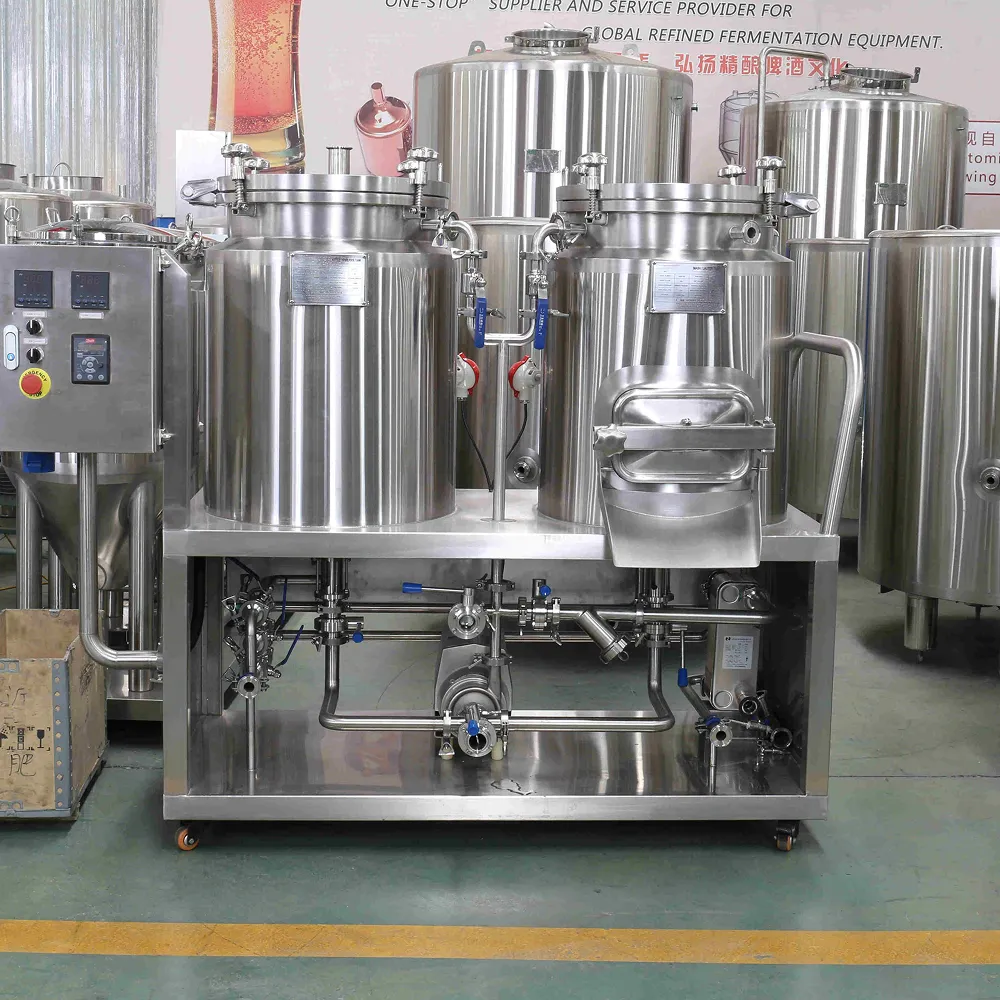

Skid-Mounted Design: The complete system is pre-assembled on a stainless steel frame with integrated piping, enabling fast installation and easy relocation within limited workshop or lab spaces.

Electric Heating System: Uses a clean 6KW electric heating method that eliminates the need for a separate steam boiler, simplifying setup and reducing infrastructure requirements.

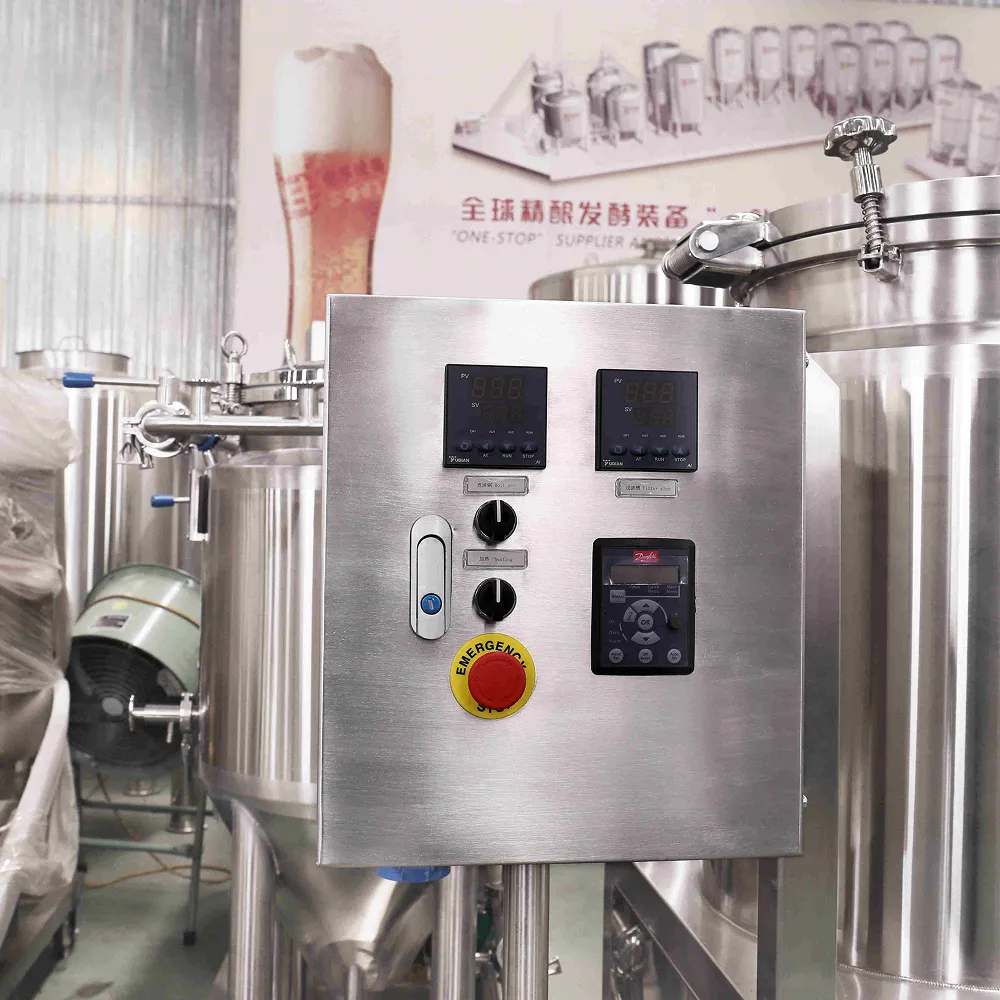

PID Semi-Automatic Control: Equipped with Schneider components for precise and repeatable temperature management during mashing and fermentation.

Complete 2+3 Configuration: Combines a functional 2-vessel brewhouse with three independent conical fermenters, supporting professional multi-batch brewing and yeast handling in one compact system.

Sanitary SUS304 Construction: All product-contact surfaces are fabricated from food-grade SUS304 stainless steel, facilitating thorough cleaning and maintaining consistent beer quality.

Compact Footprint: Requires only 5–10 m² of floor space, making it practical for nano brewery startups, brewery experiment labs, and small commercial operations.

Related product display

50L Pilot & Home Brewing Equipment

The ZR-50 50L pilot brewery system is a highly integrated, professional-grade brewing solution designed for both commercial brewery recipe testing and high-end homebrewing. Built completely from food-grade SUS304 stainless steel, this compact skid-mounted brewery system combines one multifunctional brewhouse vessel and two conical fermenters on a single movable frame. Equipped with an electric brewhouse system and a precise PID Schneider semi-automated control panel, it delivers the exact commercial brewing experience in a miniature, plug-and-play format.

Learn More

Frequently Asked Questions

Is the 60L home brewing equipment suitable for commercial pilot testing?

Yes. It is specifically built for brewery experiment and recipe development. The system replicates key parameters of larger commercial brewhouses, making it an effective pilot brewery system for professional brewers and nano brewery startups.
Does this system require an external steam boiler?

No. It uses a built-in 6KW electric heating system, making it simpler to install and operate in locations without steam infrastructure.
What control system is used in the 60L home brewing equipment?

The standard configuration is Semi-Automated with PID Schneider components. Full PLC automation is available as a factory customization option.
How much space is required to install the equipment?

The skid-mounted design needs only 5–10 m² of floor space, allowing installation in small workshops, garages, or brewpub back rooms.
Can the configuration be customized?

Yes. As a direct manufacturer, we can adjust vessel quantities, upgrade control systems, modify voltage options, or redesign the layout to match your specific site and brewing process requirements.
