1000L Column Still for Whiskey Distillation

ZR-DT-1000L

1000L Column Still for Whiskey Distillation

Distillation Process: Whisky Distillation, Column Distillation, Double Distillation, Fractional Distillation Equipment Material: Red Copper, SUS304 Stainless Steel, SUS316 Stainless Steel — Customized Customization: Capacity, Material, Column Height, Condenser, Heating Method, Control System — Customizable

Product Description:

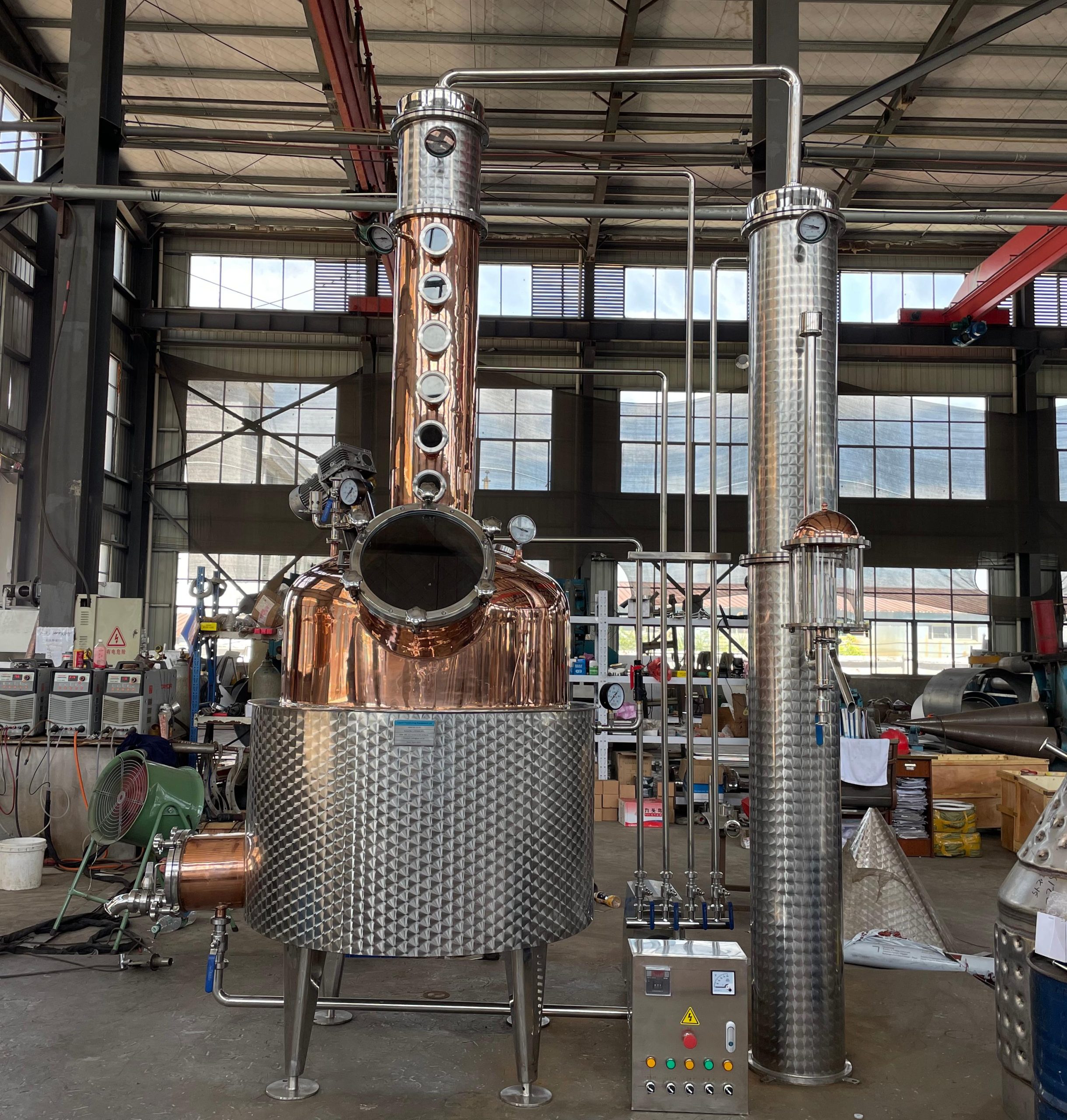

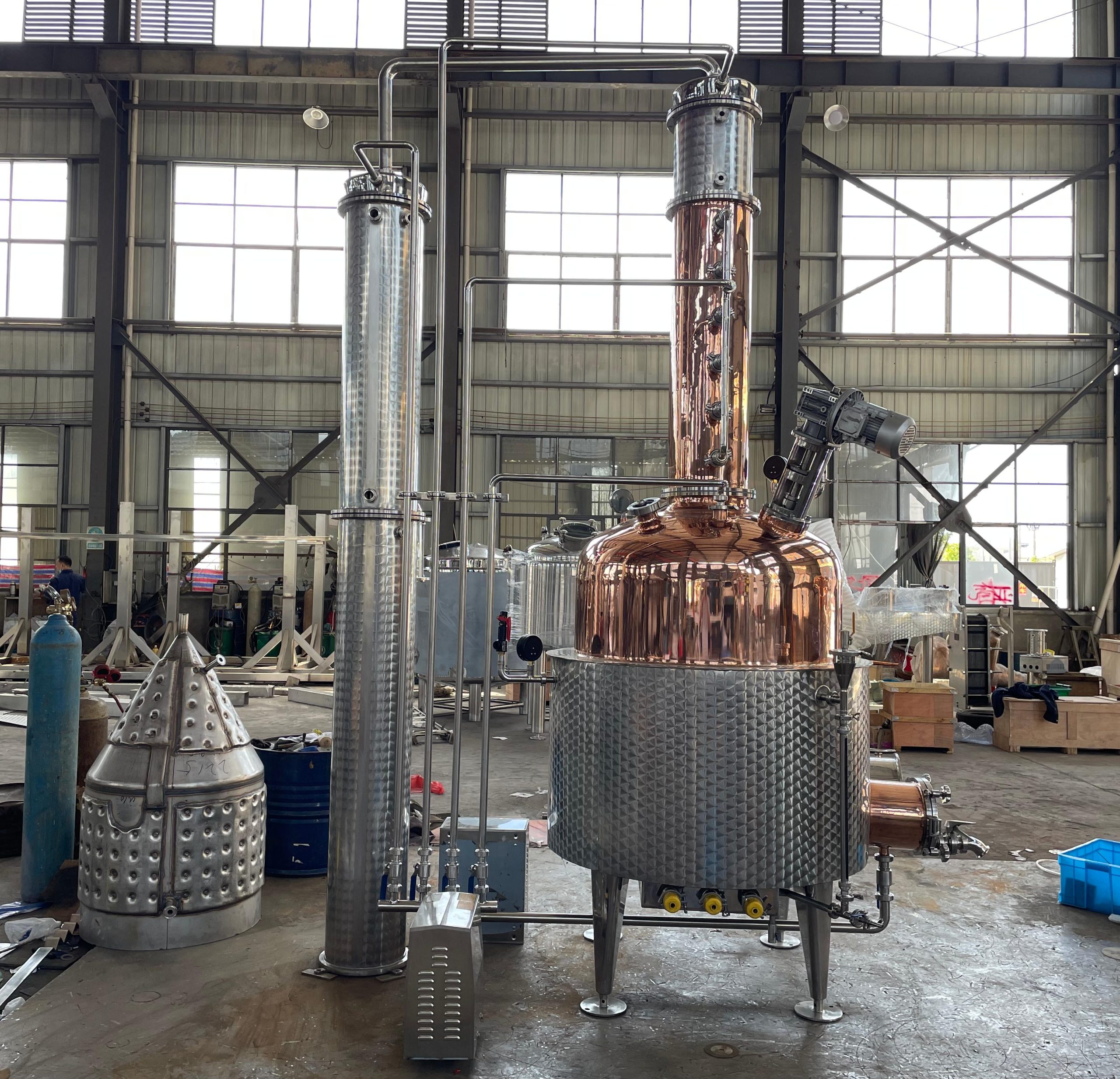

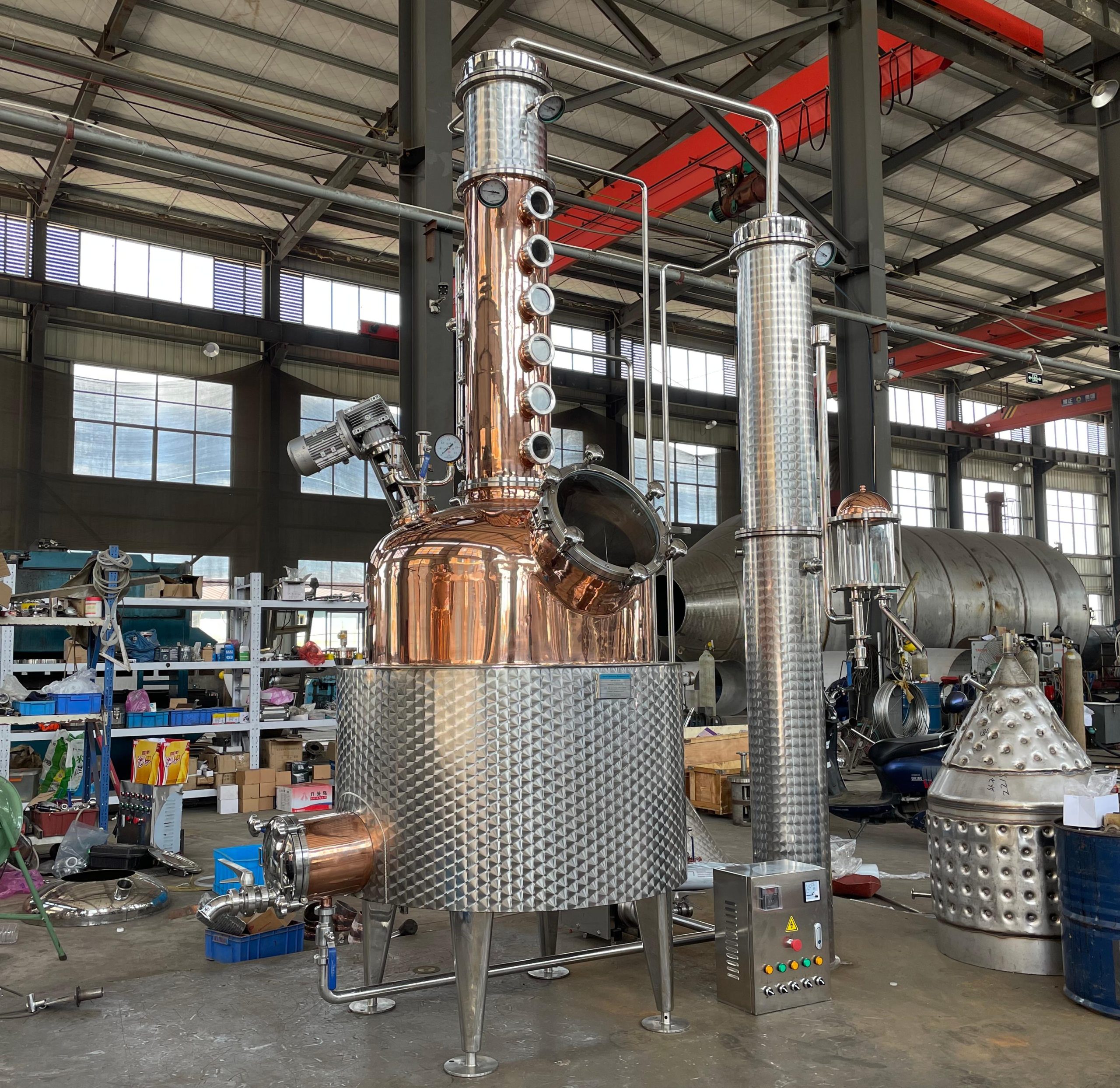

This 1000L Column Still for Whiskey Distillation is an industrial column distillation system dedicated to whiskey production. It is designed for large commercial distilleries for high-volume continuous whiskey manufacturing. It features polished copper dome, oversized sight glass, tall copper fractionating column with 6 sight glasses, dimpled stainless steel boiler and shell-and-tube condenser with thermometers. The 6-plate copper column delivers catalytic sulfur removal to produce clean, flavourful high-purity whiskey spirits. Equipped with dedicated industrial control panel, multi-zone heating and emergency stop. Built-in agitator ensures even heat distribution across the boiler for stable and repeatable distillation batches.

Get Free Quote

Product Paramenters

Model ZR‑DT‑1000L
Capacity Effective volume:1000L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

1000L Maximum Column Still Capacity
1000L pot volume — the largest in the column still series. Delivers maximum commercial batch yields for large-scale distilleries requiring high-volume whiskey production with reflux capability.

Premium Copper Reflux Column with 6 Sight Glasses
Tall copper reflux column with 6 sight glasses — the highest plate count in the series. Enables ultra-precise monitoring of separation efficiency for optimal spirit purity and character control.

Professional Control Panel System
Standalone industrial control panel with comprehensive temperature monitoring and safety features provides precise process control — reducing operator skill requirements while ensuring consistent batch results.

Premium Copper Spirit Safe
Copper-framed glass spirit safe enables real-time visual monitoring of distillate proof and flow — allowing precise separation of heads, hearts, and tails for optimal whiskey quality.

Integrated Motor Stirrer
Built-in motor stirrer ensures efficient wash mixing and uniform heat distribution — critical for consistent extraction and optimal distillation performance at 1000L commercial scale.

Large Copper Alembic with Sight Glass
Premium copper alembic dome with oversized viewing window provides maximum copper contact for sulfur removal while enabling visual monitoring of vapor dynamics during distillation.

Industrial-Grade Construction
Heavy-duty hammered stainless steel pot base and tall condenser provide durability and reliability for continuous commercial operation in demanding distillery environments.

Related product display

Frequently Asked Questions

  • Is the 1000L Column Still for Whiskey Distillation suitable for commercial use?

    Yes. The 1000L Column Still for Whiskey Distillation is designed for:

    • Large commercial distilleries
    • High-volume spirit producers
    • Established brands with significant production demands
    • Industrial-scale production facilities
    • The 1000L capacity offers excellent efficiency for large-scale commercial operations.

  • How many plates does the 1000L Column Still for Whiskey Distillation have?

    The 1000L Column Still for Whiskey Distillation features approximately 6-7 copper plates with sight glasses:

    • Each plate provides an additional distillation stage
    • Large sight glasses allow easy visual monitoring of plate activity
    • Plates can be bypassed for lower-proof, more flavorful spirits
    • Copper plates help remove sulfur compounds
    • The plate configuration is optimized for commercial whiskey production

  • Can I control the alcohol proof with the 1000L Column Still for Whiskey Distillation?

    Yes. The 1000L Column Still for Whiskey Distillation offers multiple proof control options:

    • Use all plates for maximum proof (90-95% ABV)
    • Bypass some plates for lower-proof, more flavorful spirits
    • Traditional cut management (foreshots, heads, hearts, tails)
    • Parrot/spout for real-time ABV monitoring
    • Temperature control via control panel
    • Can produce everything from 40% ABV to 95% ABV

  • Is the 1000L Column Still for Whiskey Distillation easy to operate?

    Yes, for trained commercial operators. The 1000L Column Still for Whiskey Distillation is designed for professional operation:

    • Professional control panel for easy operation
    • Large sight glasses for visual monitoring
    • Temperature gauges and displays
    • Parrot/spout for real-time ABV monitoring
    • Motorized stirring for consistent results
    • Complete operation manual and training available

  • Can I customize the 1000L Column Still for Whiskey Distillation?

    Yes. The 1000L Column Still for Whiskey Distillation can be customized:

    • Number of plates (more or fewer than standard 6-7)
    • Column height and diameter
    • Heating method (electric/steam/gas)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Control panel upgrades (PLC/SCADA systems)
    • Additional columns or/gin basket
    • Custom finishes and branding
    • Automation systems
      Contact us for custom configurations.
