50L Pot and Column Still Whiskey Distiller

ZR-DT-50L

50L Pot and Column Still Whiskey Distiller

100% Premium Red Copper Build Classic Pot & Column Combination Craft & Small-Batch Distillation

Product Description:

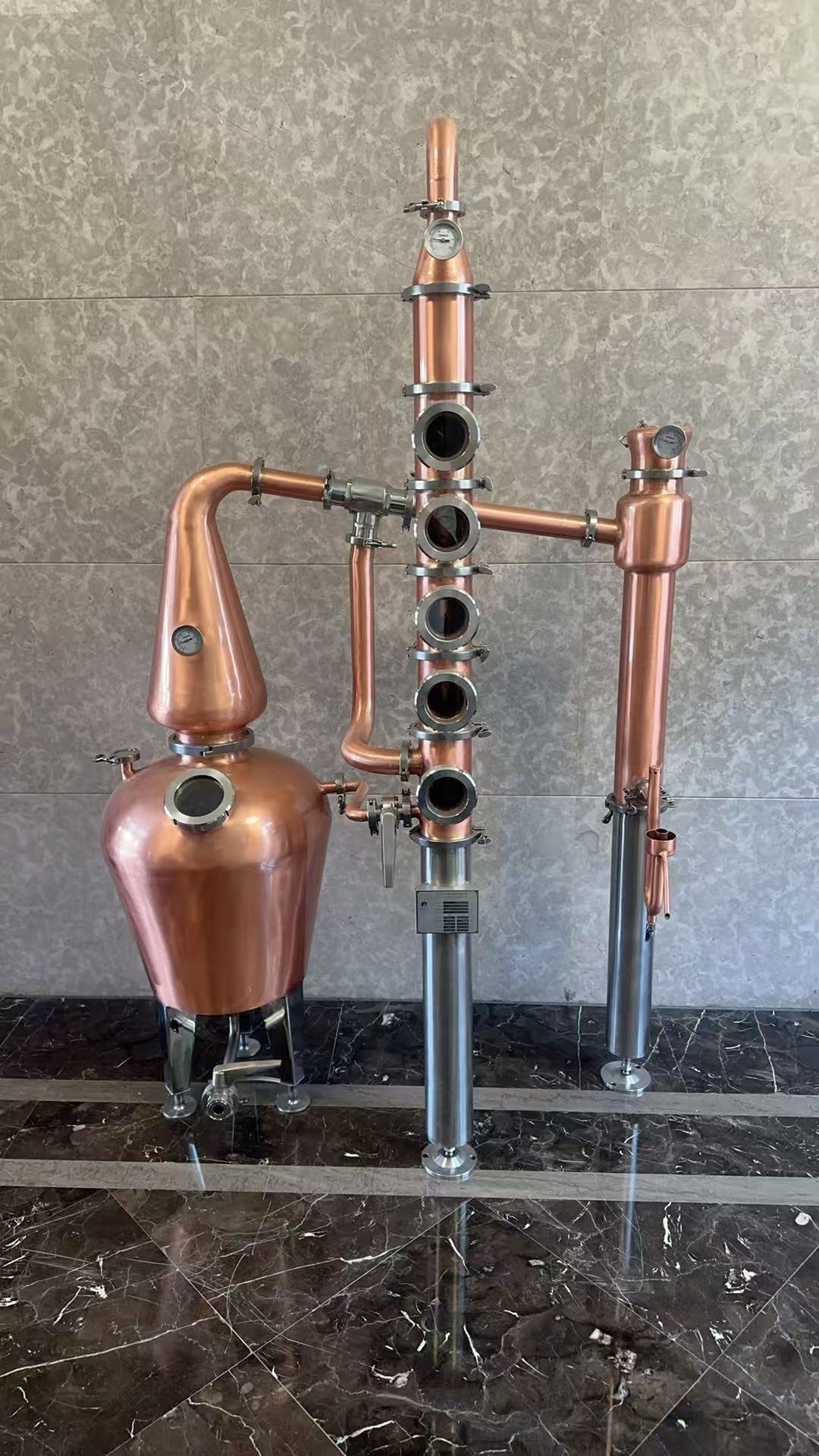

The 50L Pot and Column Still is a compact, dual‑mode whiskey distillation system combining traditional pot‑still craftsmanship with column distillation flexibility. Featuring a 50‑liter full‑copper pot with an elegant onion helmet, dome sight glass, and copper lyne arm, connected to a tall copper fractionating column (5 sight glasses) and a copper condenser with thermometers — all in a beautiful, space‑saving design. The full‑copper construction throughout — pot, helmet, column, and condenser — maximizes catalytic sulfur removal for clean, premium spirit character. The dual‑mode design allows traditional pot‑still runs for rich, complex whiskey, or column‑assisted distillation for higher‑proof, cleaner spirits. Ideal for small‑batch craft production, tasting rooms, and pilot operations.

Get Free Quote

Product Paramenters

Model ZR‑DT‑50L
Capacity Effective volume:50L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

Dual-Mode Pot and Column Design
Unique hybrid configuration combines traditional pot still with reflux column — enabling operators to switch between pot still mode (for whiskey character) and reflux mode (for higher purity) in a single system.

50L Pilot/Hobby Scale Capacity
50L pot volume ideal for pilot operations, recipe development, craft hobbyists, and small-batch premium whiskey production. Perfect entry point for learning both pot still and column distillation techniques.

All-Copper Vapor Path Construction
Every vapor-contact component crafted from pure copper — pot body, alembic dome, neck, column, condenser, and spirit safe. Maximum catalytic contact ensures superior sulfur removal and smooth spirit character.

Traditional Pot Still Shape with Swan Neck
Classic onion-shaped copper pot with tall tapered swan neck delivers authentic vapor dynamics for traditional whiskey flavor development — the same geometry used by Scotland’s finest distilleries.

Multi-Plate Copper Reflux Column
Copper column with 4-5 sight glasses enables visual monitoring of reflux action — allowing operators to achieve high-purity spirits when reflux mode is selected.

Premium Copper Condenser & Spirit Safe
Full copper condenser and spirit safe maintain maximum copper contact throughout the entire vapor path — a premium feature enhancing spirit quality and consistency.

Showroom-Quality Aesthetics
Beautiful copper craftsmanship with polished finish makes this system suitable for display in tasting rooms, distillery tours, and customer-facing operations.

Related product display

Frequently Asked Questions

  • Is the 50L Pot and Column Still Whiskey Distiller suitable for commercial use?

    Yes, for small-scale commercial operations:

    • Micro-distilleries and craft spirit producers
    • Restaurant and bar distillation operations
    • Distillery startups and pilot systems
    • Premium home distilling (where legal)
    • Educational and demonstration purposes
      The 50L capacity is ideal for small batch, premium spirit production.

  • How many plates does the 50L Pot and Column Still Whiskey Distiller have?

    The 50L Pot and Column Still Whiskey Distiller features approximately 4-5 copper plates with sight glasses:

    • Each plate provides an additional distillation stage
    • Sight glasses allow visual monitoring of plate activity
    • Plates can be bypassed for pot still operation
    • Copper plates help remove sulfur compounds
    • The hybrid design allows for maximum flexibility

  • What is the purpose of the temperature gauges on the 50L Pot and Column Still Whiskey Distiller?

    The 50L Pot and Column Still Whiskey Distiller includes multiple temperature gauges:

    • Onion head gauge: monitors vapor temperature
    • Column top gauge: tracks final vapor temperature
    • Essential for determining when to make cuts
    • Helps ensure optimal distillation efficiency
    • Prevents overheating and potential damage

  • Is the 50L Pot and Column Still Whiskey Distiller easy to operate?

    Yes. The 50L Pot and Column Still Whiskey Distiller is designed for user-friendly operation:

    • Sight glasses allow visual monitoring of the process
    • Temperature gauges for monitoring heat input
    • Parrot/spout for real-time ABV monitoring
    • Simple valve controls for flow management
    • Can switch between pot still and column modes easily
    • Complete operation manual and training available

  • Can I customize the 50L Pot and Column Still Whiskey Distiller?

    Yes. The 50L Pot and Column Still Whiskey Distiller can be customized:

    • Number of plates (more or fewer than standard 4-5)
    • Column height
    • Heating method (electric/induction/gas)
    • Addition of botanical basket for gin production
    • Custom engraving or branding
    • Wall-mount or floor-standing configuration
      Contact us for custom configurations.
