500L All-Copper Multi-Functional Distiller

ZR-DT-500L

500L All-Copper Multi-Functional Distiller

Multifunctional:Whisky,Brandy,Grappa,Gin,Rum,Tequila Base,Baijiu Heating method: Electric heating,steam heating,direct flame heating (optional) Equipment Material：SUS304 / SUS316 / Red Copper — Custom Material

Product Description:

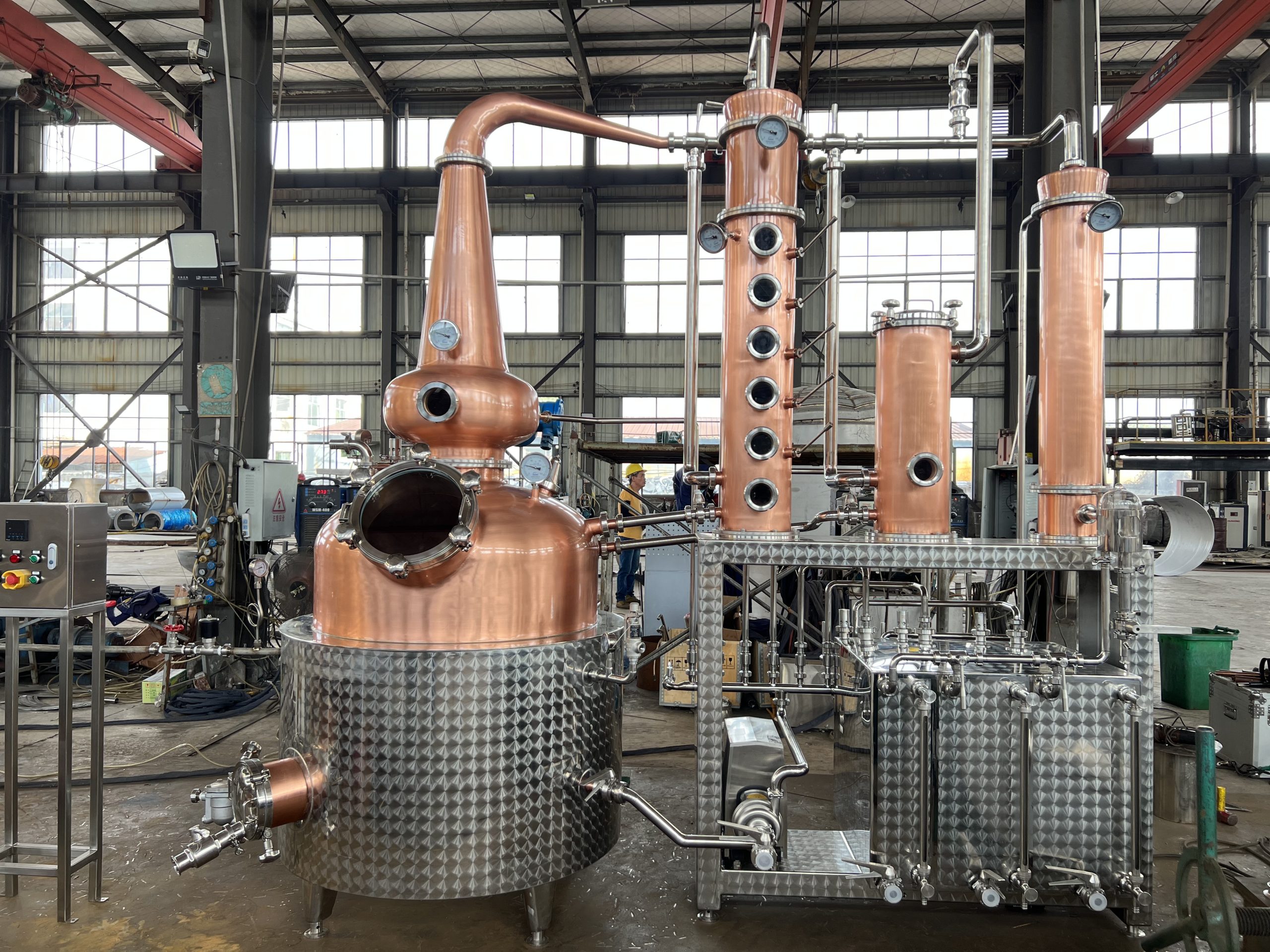

The 500L All‑Copper Multi‑Functional Distiller is a premium, full‑copper production system for commercial distilleries demanding the highest spirit purity. Featuring a 500‑liter red copper pot still with tall conical neck and oversized dome sight glass, a 7‑plate all‑copper fractionating column, an all‑copper gin basket, and an all‑copper condenser — all integrated with a diamond‑plate stainless steel collection tank and an independent control panel. The complete all‑copper vapor path maximizes catalytic sulfur removal for the cleanest, most refined spirit character. The 7‑plate column provides exceptional separation efficiency for high‑proof neutral spirits, while pot‑still mode delivers full‑bodied whiskey, brandy, and rum. Multi‑compartment collection with sight glasses enables precise heads‑hearts‑tails separation, and sanitary tri‑clamp fittings ensure easy CIP cleaning.

Get Free Quote

Product Paramenters

Model ZR‑DT‑500L
Capacity Effective volume:500L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Brandy,Rum,Gin,Tequila,Essential oil,Others
Application Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

500L Maximum Commercial Capacity
500L pot volume delivers the highest batch yields in the series — designed for large-scale craft distilleries and commercial operations requiring maximum production output.

True All-Copper Vapor Path Construction
Every vapor-contact component crafted from pure copper — pot body, alembic dome, swan neck, reflux column, dephlegmator, and condenser. Maximum catalytic contact ensures superior sulfur removal and exceptional spirit smoothness.

Multi-Plate Copper Reflux Column
Copper column with 5-6 sight glasses for real-time process monitoring. High plate count supports high-purity vodka production while maintaining flexibility for whiskey and brandy character distillation.

Copper Condenser & Dehplegmator
Full copper condenser and dephlegmator maintain maximum copper contact throughout the entire vapor path — a premium feature enhancing spirit quality and consistency that surpasses stainless steel alternatives.

Integrated Bottom Collection System
Multi-compartment stainless steel collection tank integrated beneath the frame — enables simultaneous collection of heads, hearts, and tails without interrupting the distillation run.

Professional Control Panel
Standalone electrical control panel with comprehensive temperature monitoring provides precise process control and operational safety for consistent batch results.

Hammered Stainless Steel Base
Premium dimpled stainless steel pot base provides durability and professional aesthetic while the copper upper body delivers maximum spirit quality — the best of both worlds.

Related product display

Frequently Asked Questions

  • What is the capacity of the 500L Multi-functional Distiller?

    The 500L Multi-functional Distiller features a 500-liter boiler capacity. With the recommended 50-60% fill rate, you can process 125-150L of mash per batch, yielding approximately 25-35L of high-proof spirit per run. The included fermentation tank allows seamless integration of the complete production process.

  • Is the 500L Multi-functional Distiller suitable for commercial use?

    Yes. The 500L Multi-functional Distiller is designed for medium to large-scale commercial distilleries. It offers professional-grade construction, complete fermentation and distillation capabilities, and premium copper components, making it ideal for craft spirit brands and established distilleries seeking a comprehensive production system.

  • What heating options are available for the 500L Multi-functional Distiller?

    The 500L Multi-functional Distiller offers multiple heating options:

    • Electric heating (recommended): 36-48 kW with digital temperature control
    • Gas/diesel burner
    • Steam heating
      The integrated utility cabinet houses all heating controls and pumps for organized, professional operation.

  • Can I control the alcohol proof with the 500L Multi-functional Distiller?

    Yes. The 500L Multi-functional Distiller allows you to produce spirits ranging from 40% ABV to 95% ABV. The multi-plate copper rectification column gives you precise control over the final proof, and the multiple sight glasses let you monitor the distillation process in real-time.

  • Can I customize the configuration of the 500L Multi-functional Distiller?

    Yes. The 500L Multi-functional Distiller can be customized to meet your specific needs:

    • Column height and number of plates
    • Heating method (electric/gas/steam)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Fermentation tank size and features
    • Additional columns for higher purity
    • Gin basket size and configuration
    • Additional safety features
    • Custom color and finish
    • PLC control system upgrade
