50L Red Copper Essential Oil Distiller

ZR-DT-50L

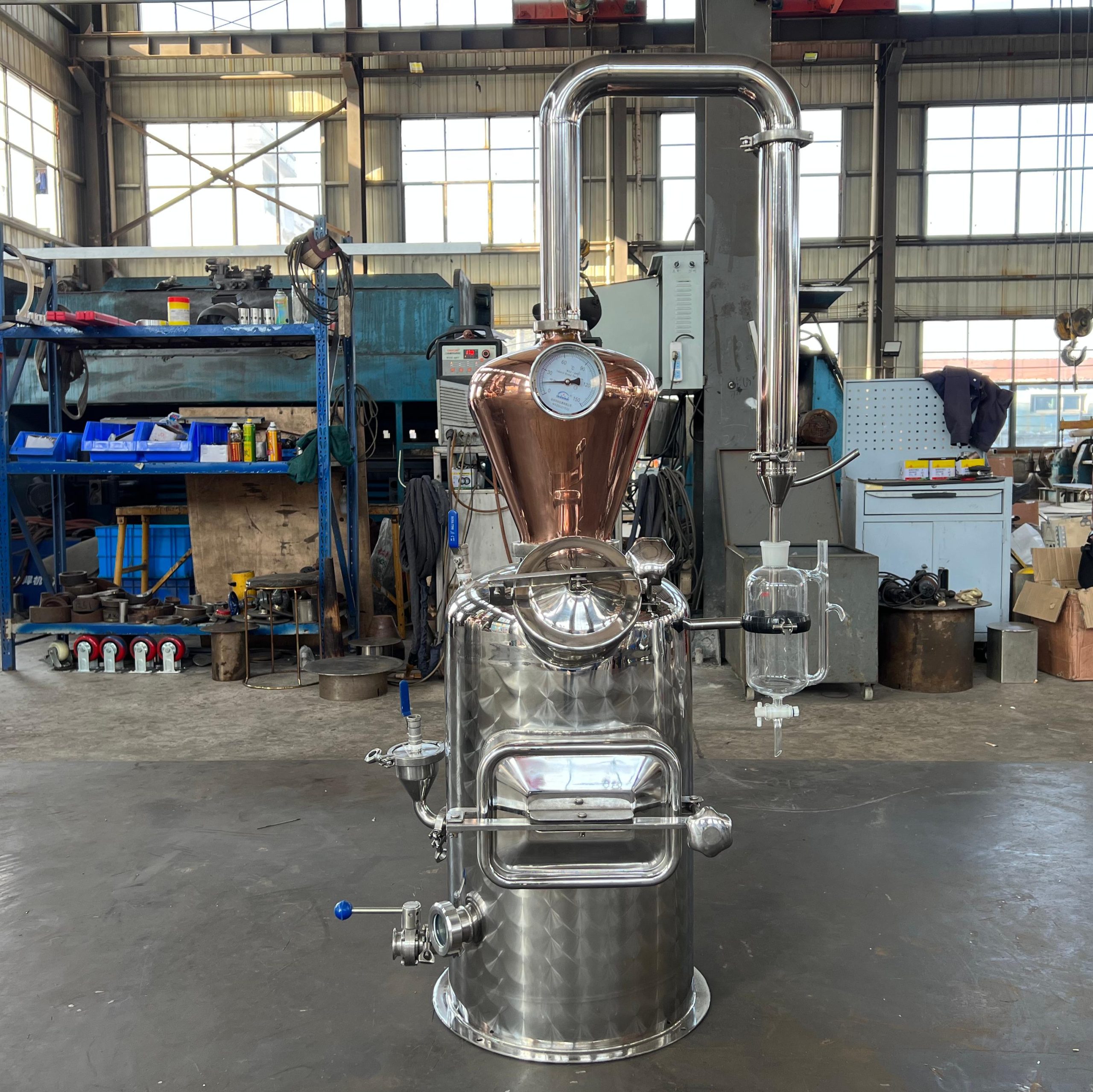

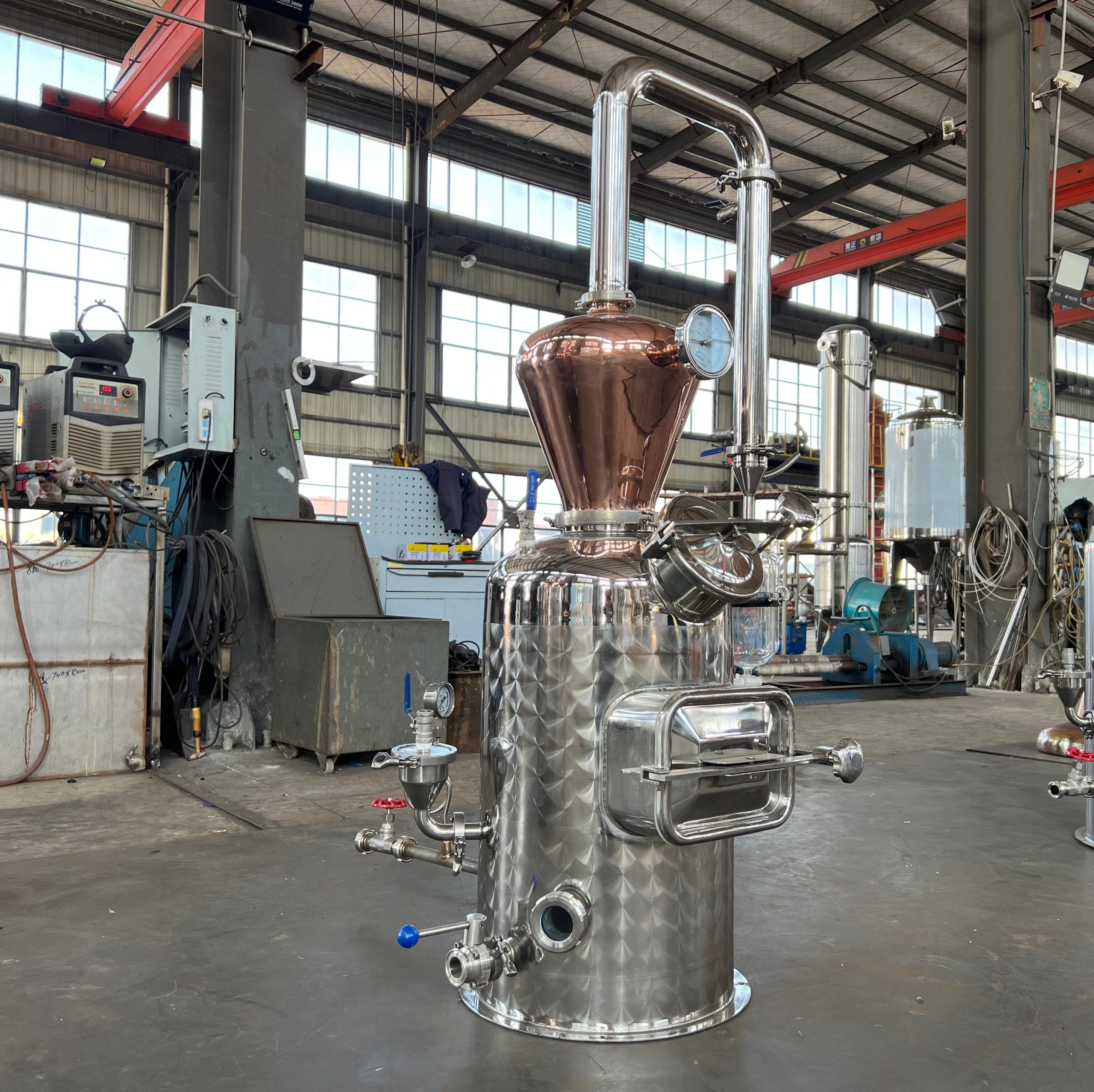

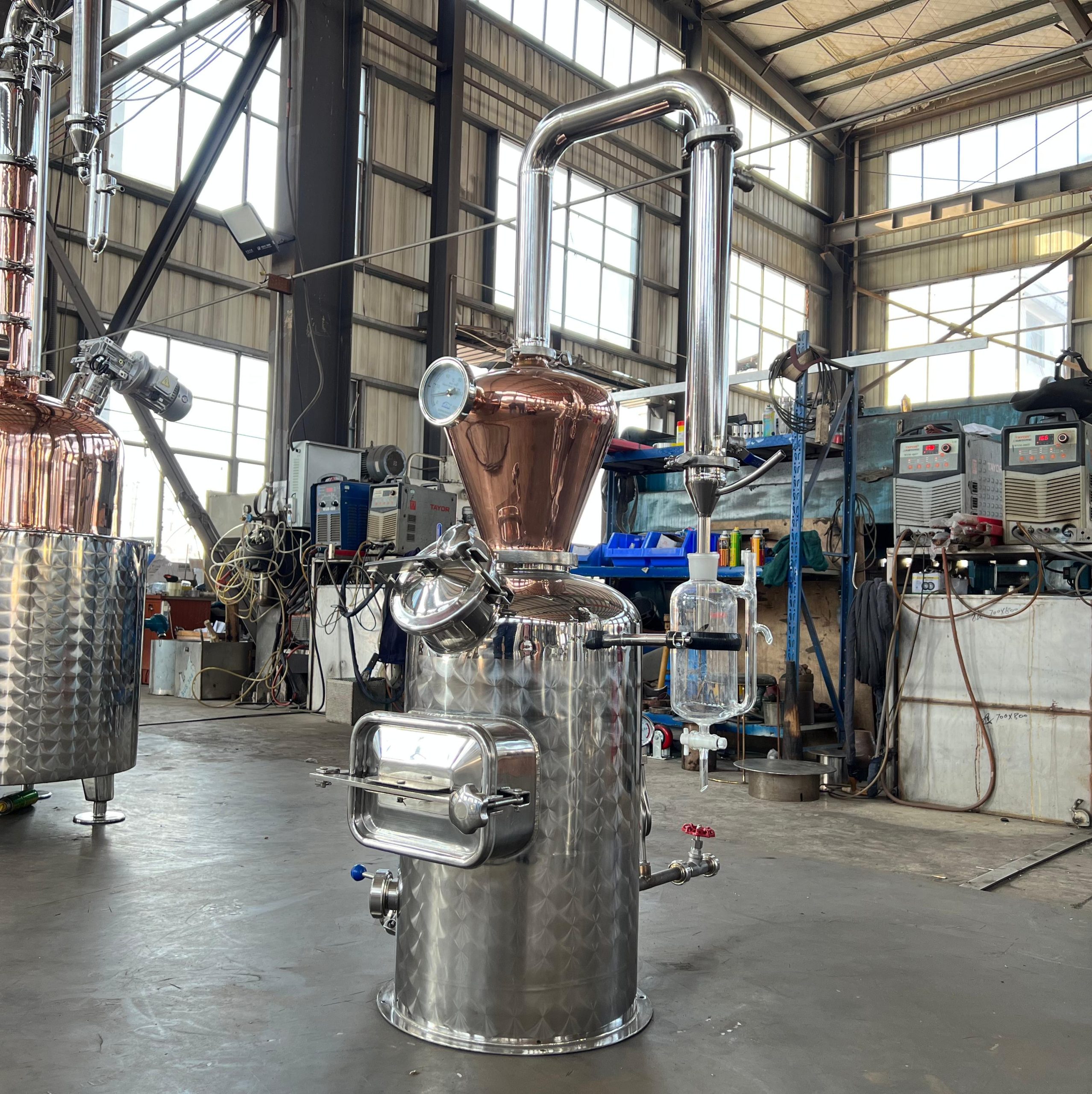

50L Red Copper Essential Oil Distiller

High-Purity Essential Oil Extraction Dual Output: Essential Oil & Hydrosol Safe Copper & SS Material for Botanicals

Product Description:

This 50L Red Copper Essential Oil Distiller is a precision-built, compact steam distillation unit, specifically designed for boutique botanical farms, craft herbalists, and small-scale cosmetic laboratories looking to extract high-quality natural essences. Featuring a solid red copper pot, swan neck, and condenser, this small-batch system effectively processes fresh or dried botanicals, delivering pure, untainted essential oils and floral waters with exact temperature control and maximum aromatic retention

Get Free Quote

Product Paramenters

Model ZR‑DT‑50L
Capacity Effective volume:50L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Essential Oil
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

Precision-Built Steam Distillation
Engineered specifically for essential oil extraction, this system utilizes steam distillation to gently release volatile compounds from botanicals. The result is pure, untainted essential oils and floral waters with maximum aromatic integrity.

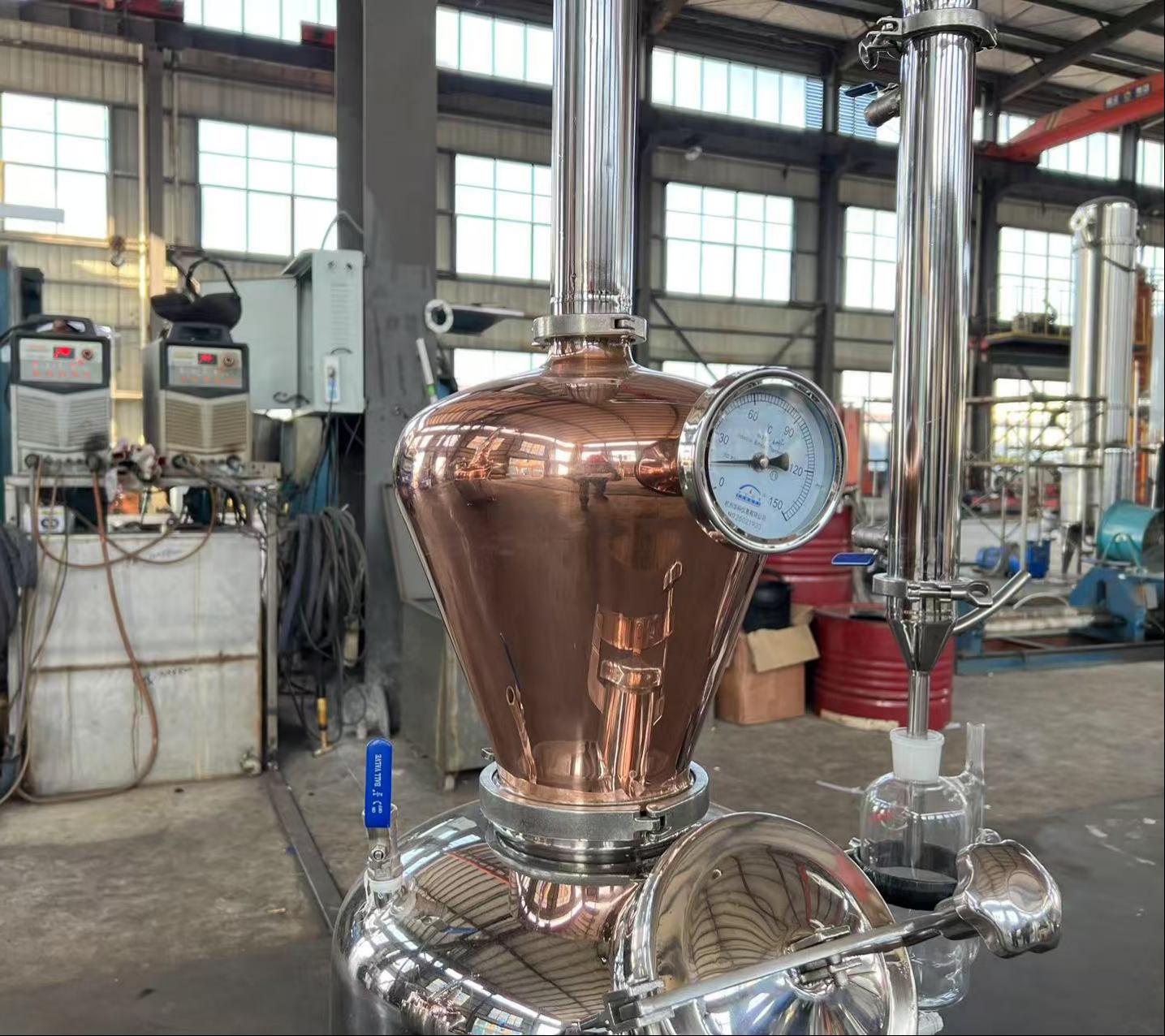

Solid Red Copper Pot
The premium red copper pot provides superior and uniform heat distribution, ensuring gentle and consistent extraction. Copper also actively removes sulfur compounds, preserving the delicate true-to-plant aroma of your essential oils.

Elegant Swan Neck Design
The swan neck creates additional vapor space and promotes smooth, even vapor flow. This design minimizes carryover and ensures clean separation, yielding high-purity essential oils with exceptional clarity.

Efficient Condensation System
The matched copper condenser efficiently converts vapor back to liquid, ensuring maximum oil yield while maintaining precise temperature control throughout the extraction process.

Small-Batch Precision
With a 50L working capacity, this compact system is ideal for boutique botanical farms, craft herbalists, and small-scale cosmetic laboratories. It allows for precise control over each batch, perfect for recipe development and small-scale production.

Fresh & Dried Botanical Compatibility
Effectively processes both fresh and dried botanicals, offering flexibility to work with seasonal harvests and a wide variety of plant materials including flowers, herbs, leaves, roots, and spices.

Versatile Heating Options
Choose from electric heating, steam heating, or gas direct-fire heating (optional) to match your facility setup and energy availability.

Compact Footprint
The space-saving design fits easily into small laboratories, workshops, or boutique production facilities without requiring extensive installation or modifications.

CIP-Ready Hygienic Design
The integrated CIP (Clean-in-Place) compatible piping system simplifies cleaning between batches, preventing cross-contamination between different botanical runs and maintaining product purity.

Related product display

Frequently Asked Questions

  • What materials is the boiler made of, and why is copper important?

    The core of the system is a Solid Red Copper Pot. Copper is preferred for distillation because it provides superior and even heat distribution. Additionally, it actively catalyzes the removal of sulfur compounds and undesirable congeners. For essential oils, this prevents the “burnt” or metallic taste often found in other metals and ensures a purer, more aromatic final product.

  • What is the function of the "Elegant Swan Neck Design"

    The swan neck (lyne arm) is strategically designed to increase the vapor path. This provides additional surface area and promotes smoother vapor flow. It allows heavier molecules to naturally fall back into the pot, resulting in a cleaner, lighter, and more refined extract.

  • How does the system handle both fresh and dried botanicals?

    The system features a “Fresh & Dried Botanical Capability.” You can place fresh plant material (which contains high water content) directly into the pot or basket, or use dried herbs. The precise temperature control (via the efficient condensers) allows for the gentle extraction of delicate volatile compounds found in fresh flowers, leaves, and roots, ensuring maximum aromatic intensity.

  • What is the difference between extracting essential oils and making hydrosols with this machine?

    The Precision Steam Distillation process allows you to collect two products simultaneously. The essential oils (which are lighter than water and float on top) will separate in the oil-water separator and are collected from the top. The remaining water, rich in plant compounds, is the aromatic hydrosol (floral water) and is drained from the bottom, ensuring nothing goes to waste.

  • Can you customize the voltage for my specific country?

    Yes. The electrical parameters are customizable. We can configure the system for standard 220V/50Hz (EU/UK/Asia standard) or 110V/60Hz (US standard) to ensure plug-and-play compatibility in your country.
