500L Pot and Column Still Whiskey Distiller

ZR-DT-500L

500L Pot and Column Still Whiskey Distiller

500L / 5HL Heavy-Duty Production High-Elevated Long Column Design Independent Split-Tank Support System

Product Description:

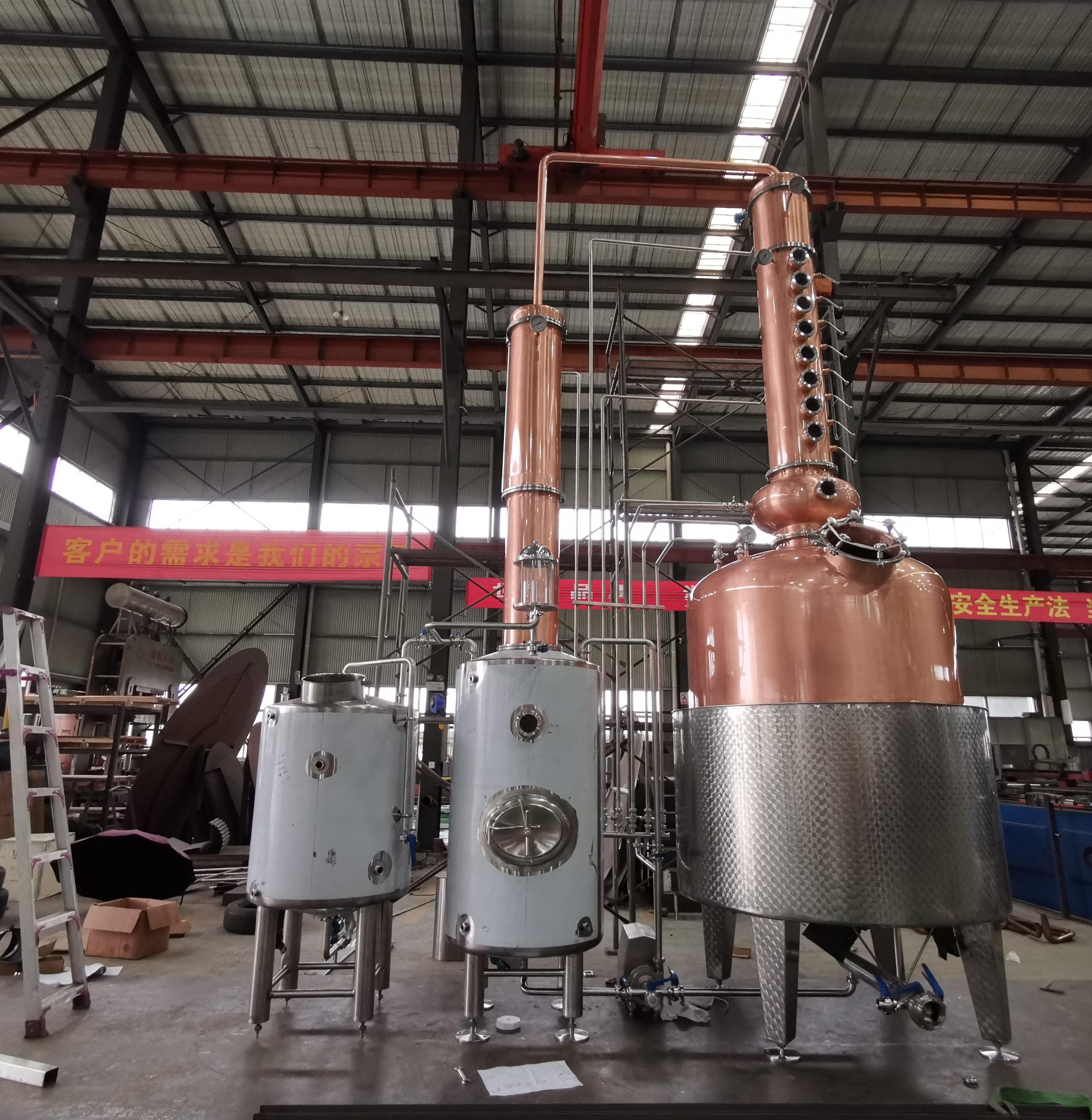

The 500L Pot and Column Still is a comprehensive, medium‑scale hybrid distillation system for commercial whiskey production. Featuring a 500‑liter full‑copper pot still with an integrated tall fractionating column (6+ sight glasses), copper dome with sight glass, and diamond‑plate stainless steel boiler body, connected via copper lyne arm to a copper condenser column and dual stainless steel collection tanks — all with comprehensive gauge monitoring and sanitary tri‑clamp fittings. The integrated column design provides exceptional separation efficiency while maintaining the rich, complex character of pot‑still production. The dual collection tanks enable precise heads‑hearts‑tails separation, while the copper vapor path ensures catalytic sulfur removal for premium spirit quality. The pump‑assisted system enables efficient operation and easy transfer between vessels.

Get Free Quote

Product Paramenters

Model ZR‑DT‑500L
Capacity Effective volume:500L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

Integrated Tall Reflux Column Design
Unique configuration with reflux column integrated directly into the pot neck — combining traditional pot still aesthetics with modern reflux capability. The tall integrated column features 6-7 sight glasses for maximum separation control.

500L Commercial-Scale Capacity
500L pot volume delivers high-volume batch yields for established distilleries — suitable for commercial whiskey production requiring significant output with traditional character.

Traditional Copper Pot Still Shape
Classic large copper pot body with alembic dome delivers authentic vapor dynamics for premium whiskey flavor development — the same geometry used by Scotland’s finest distilleries.

Maximum Copper Contact (6-7 Sight Glasses)
Tall integrated column with 6-7 sight glasses — the highest plate count in the hybrid series. Enables ultra-precise monitoring of separation efficiency for optimal spirit purity and character control.

Dual-Vessel Configuration
System includes main pot still plus additional stainless steel vessel — providing flexibility for different production modes, pre-heating, or collection storage.

Full Copper Condenser & Spirit Safe
Premium copper condenser and spirit safe maintain maximum copper contact throughout the entire vapor path — ensuring superior spirit quality and consistency.

Integrated Pump System
Built-in pump enables efficient liquid transfer between vessels — supporting continuous production workflows and reducing manual handling at commercial scale.

Related product display

Frequently Asked Questions

  • Is the 500L Pot and Column Still Whiskey Distiller suitable for commercial use?

    Yes. The 500L Pot and Column Still Whiskey Distiller is designed for:

    • Medium to large craft distilleries
    • Established commercial spirit producers
    • Distilleries requiring high-volume production
    • Premium whiskey and spirit brands
    • Operations wanting both pot still tradition and column efficiency
    • Professional commercial distillery operations

  • How many plates does the 500L Pot and Column Still Whiskey Distiller have?

    The 500L Pot and Column Still Whiskey Distiller features approximately 7-8 copper plates with sight glasses:

    • Each plate provides an additional distillation stage
    • Large sight glasses allow easy visual monitoring
    • Plates can be bypassed for pot still operation
    • Copper plates help remove sulfur compounds
    • The high plate count provides maximum proof flexibility

  • What heating options are available for the 500L Pot and Column Still Whiskey Distiller?

    The 500L Pot and Column Still Whiskey Distiller offers multiple heating options:

    • Electric heating (recommended): 42-60 kW immersion elements
    • Steam jacket heating: for most even heat distribution
    • Gas burner: propane or natural gas
      Electric heating provides consistent temperature control and is easiest to install.

  • What utilities do I need for the 500L Pot and Column Still Whiskey Distiller?

    The 500L Pot and Column Still Whiskey Distiller requires:

    • Electricity: 3-phase, 380V/50Hz (for heating, pump, and controls)
    • Cooling water: continuous flow of 2000-3000 L/hour for condenser
    • Drainage: floor drain for cleaning and waste water
    • Ventilation: adequate airflow for safe operation
    • Water source for cooling system (recirculating chiller recommended)

  • Can I customize the 500L Pot and Column Still Whiskey Distiller?

    Yes. The 500L Pot and Column Still Whiskey Distiller can be customized:

    • Number of plates (more or fewer than standard 7-8)
    • Column height
    • Heating method (electric/steam/gas)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Addition of botanical basket for gin production
    • Control panel upgrades
    • Additional collection vessels
    • Custom finishes and branding
      Contact us for custom configurations.
