300L Commercial Copper & Stainless Steel Distillation System

Get a Quote
Stainless Steel Conical Fermenters

300L Multi-functional Distiller

ZR-DT-300L

300L Multi-functional Distiller

Multifunctional:Whisky,Brandy,Grappa,Gin,Rum,Tequila Base,Baijiu Heating method: Electric heating,steam heating,direct flame heating (optional) Equipment Material：SUS304 / SUS316 / Red Copper — Custom Material

Product Description:

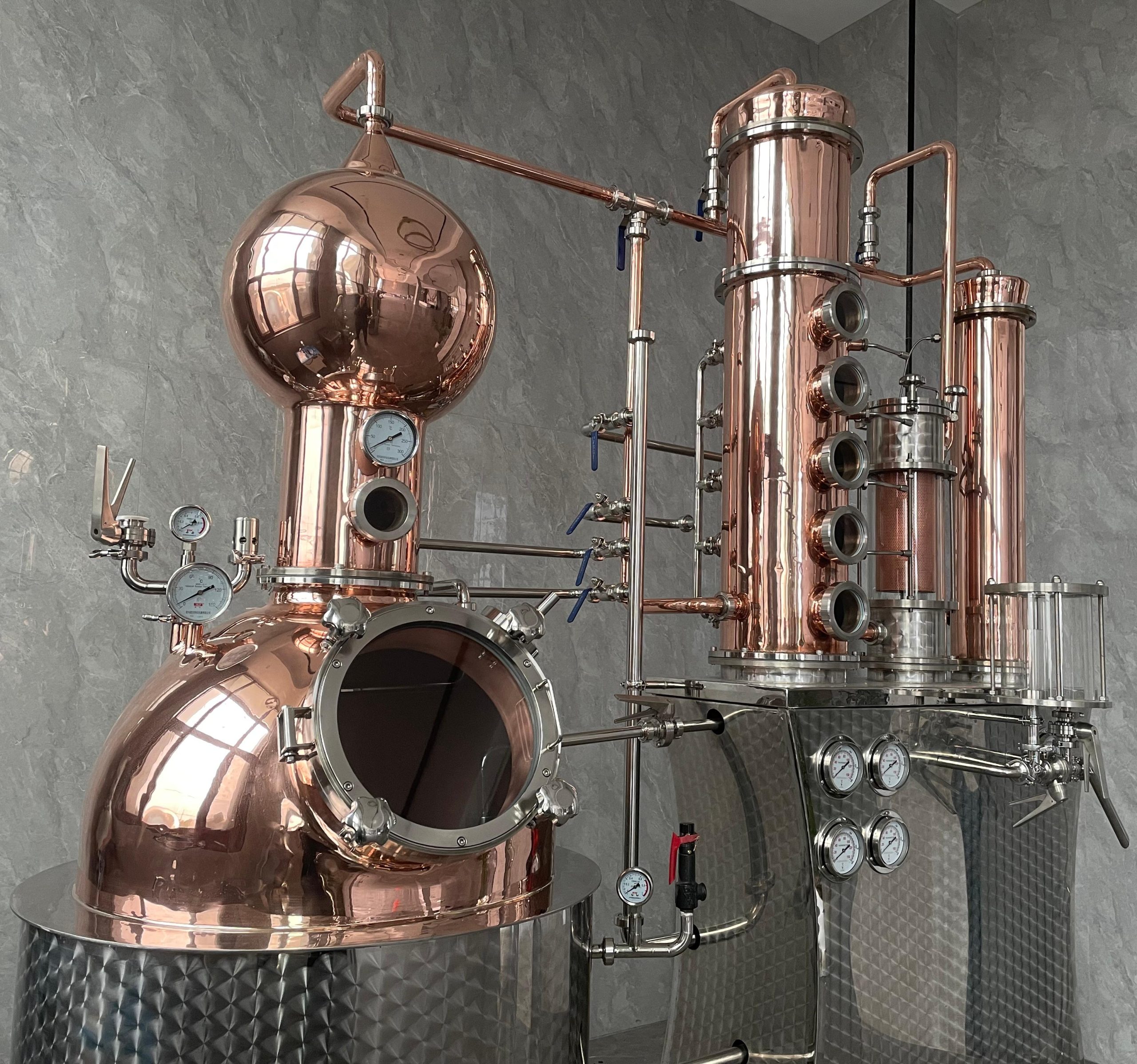

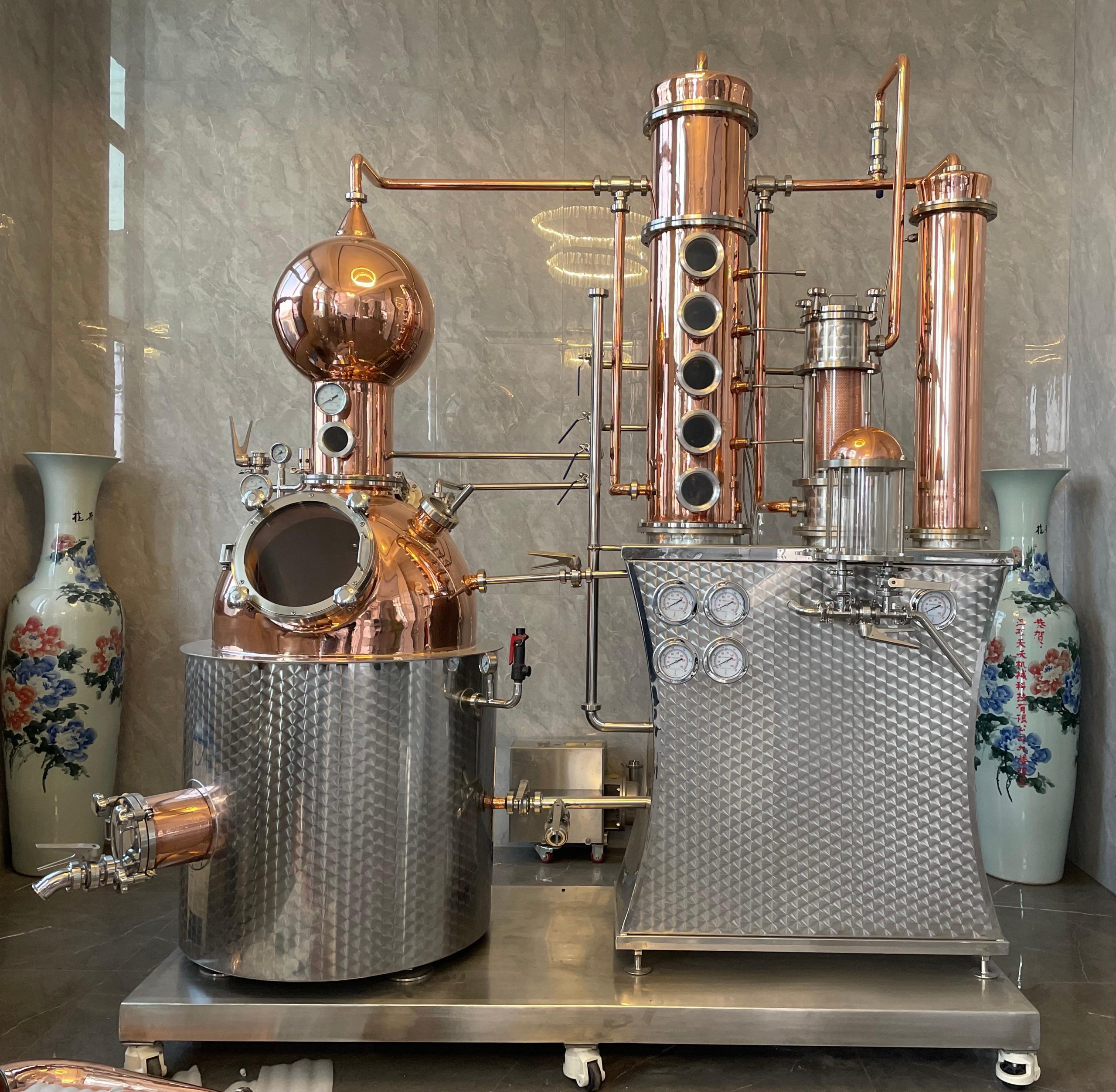

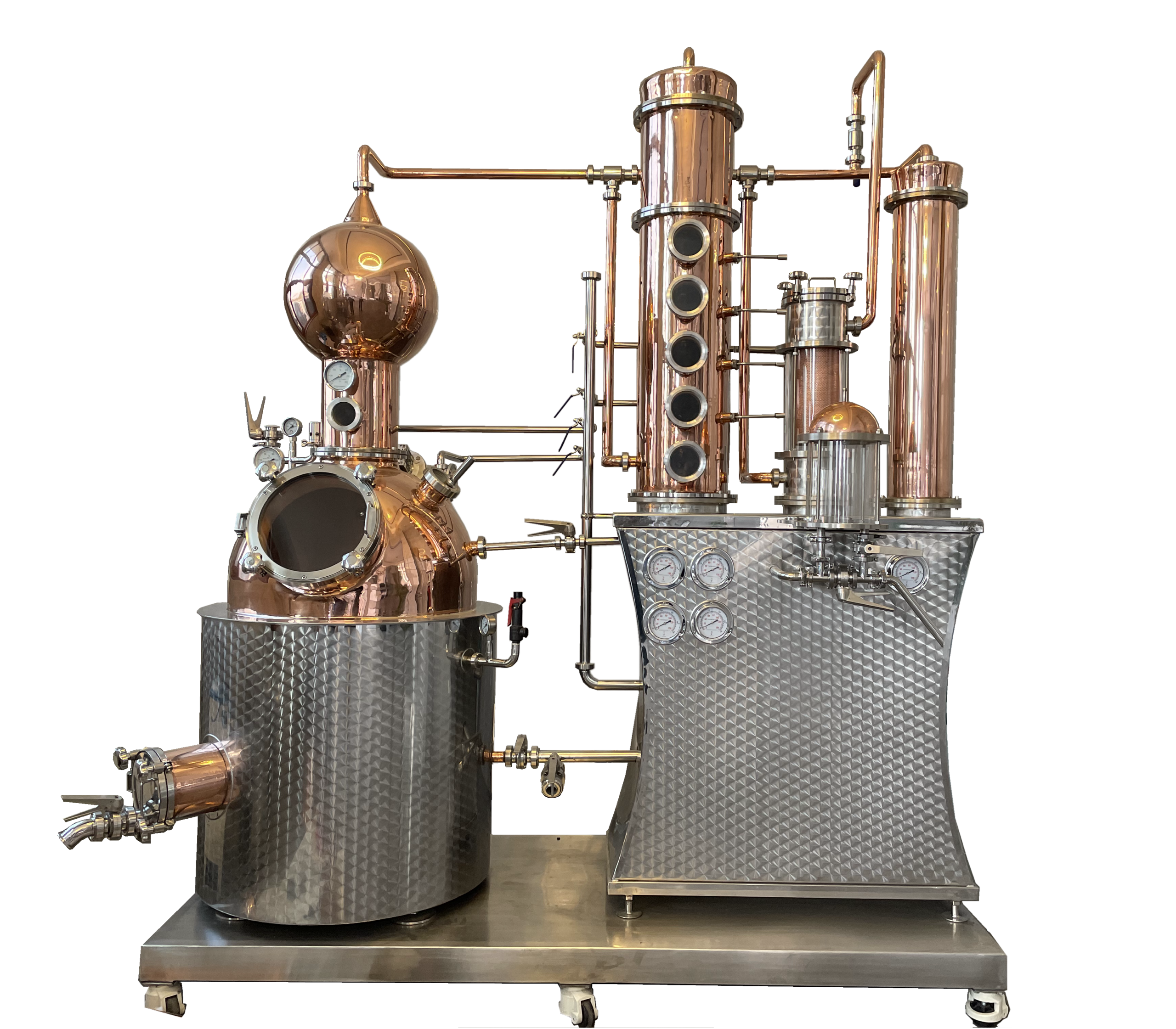

The 300L Multi‑Functional Distiller is a high‑capacity, skid‑mounted commercial system built for serious craft distilleries. With a 300‑liter capacity, it features a red copper pot still with onion helmet, integrated agitator, and oversized sight glass, paired with a 5‑plate copper fractionating column, a stainless steel gin basket, and a dimpled‑surface shell‑and‑tube condenser — all mounted on a diamond‑plate stainless steel frame with a dedicated control panel. The full‑copper vapor path and agitator ensure even heat distribution and optimal catalytic sulfur removal for clean, consistent spirit production. Dual‑mode operation supports pot‑still runs for whiskey, brandy, and rum, as well as column distillation for vodka, gin, and neutral spirits. Sanitary tri‑clamp fittings throughout enable fast disassembly and CIP cleaning.

Get Free Quote

Product Paramenters

Model ZR‑DT‑300L
Capacity Effective volume:300L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey,Vodka,Grappa,Brandy,Rum,Gin,Tequila,Essential oil,Hydrosol,Others
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

300L Large-Capacity Production
300L pot volume delivers high-volume commercial batch yields for established distilleries requiring maximum output while maintaining craft-quality standards and flavor profiles.

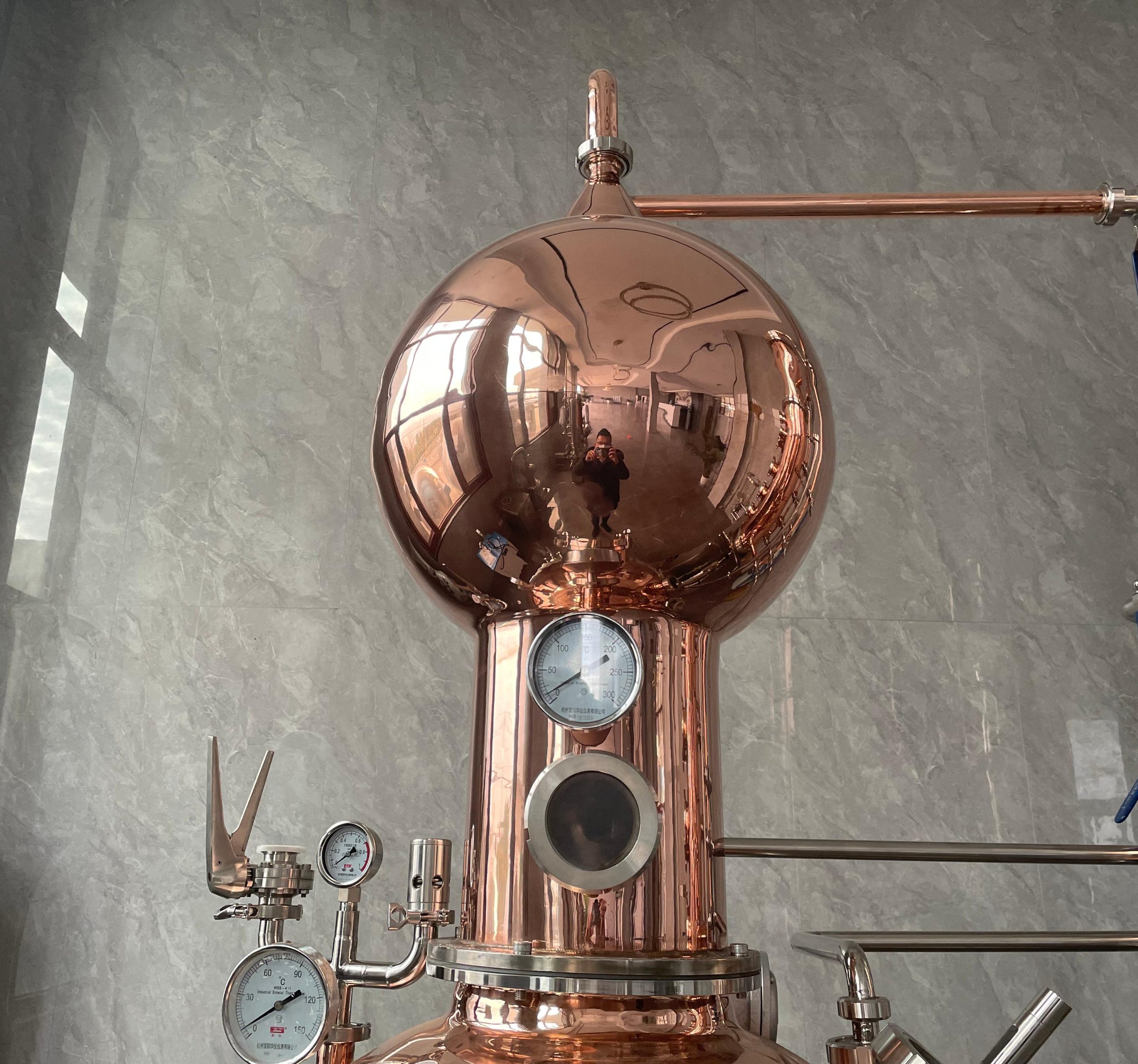

Premium Copper Alembic with Sight Glass
Traditional copper alembic dome with integrated sight glass enables visual monitoring during distillation. Copper’s catalytic properties ensure smooth, sulfur-free spirits with superior character.

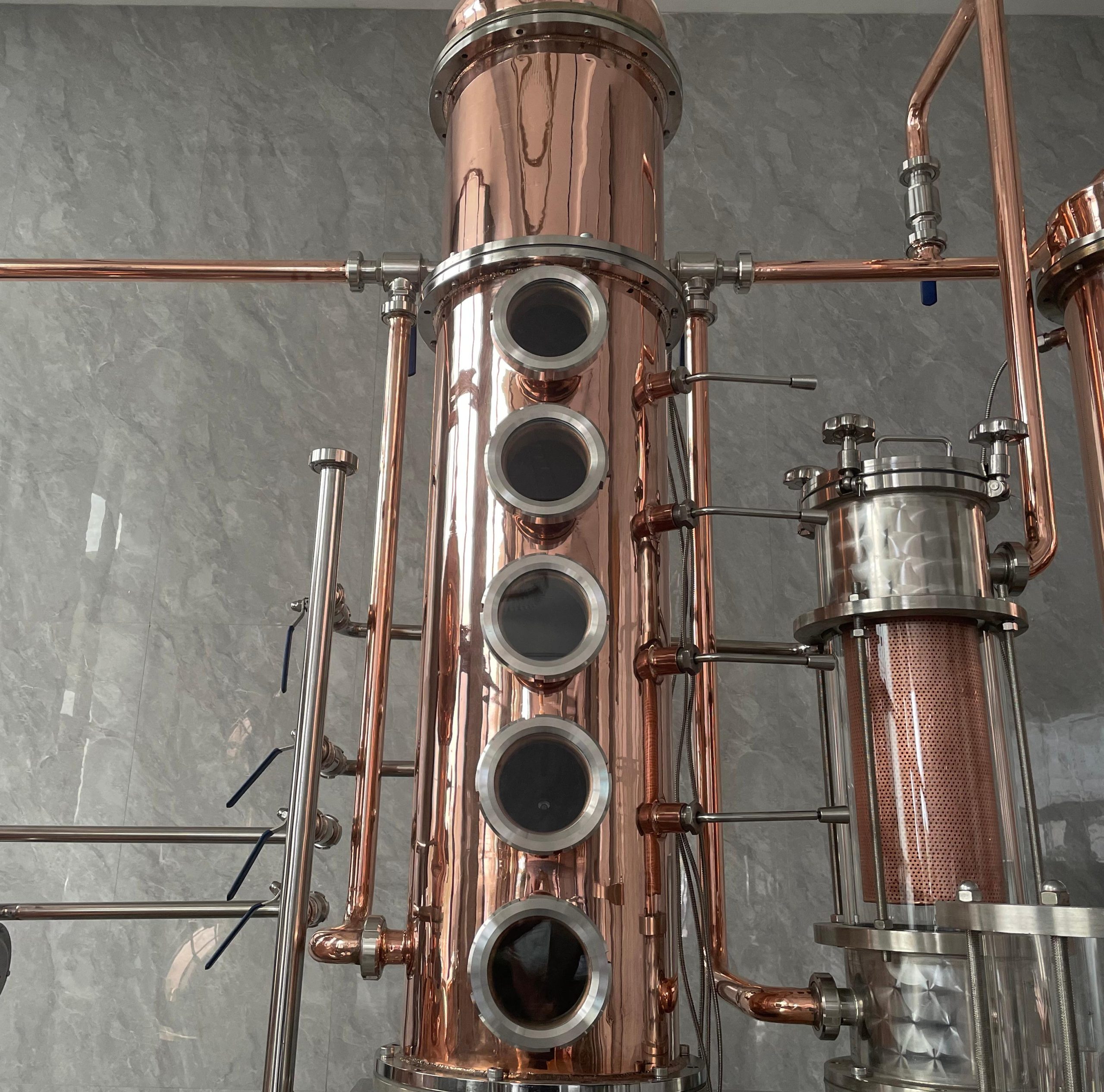

Multi-Plate Copper Reflux Column
Tall copper column with 5-6 sight glasses for real-time process monitoring. High plate count supports ultra-high-purity vodka production while maintaining flexibility for pot still operation.

Hammered Stainless Steel Pot Body
Premium dimpled stainless steel construction provides exceptional durability, corrosion resistance, and professional aesthetic. Elevated leg design allows easy cleaning underneath.

Integrated Heat Exchanger System
Coiled heat exchanger maximizes cooling efficiency while minimizing water consumption — reducing operating costs and supporting sustainable production practices.

Professional Control Panel
Standalone electrical control panel provides precise temperature management across all heating zones. PID-enabled controls ensure batch-to-batch consistency and operational safety.

Integrated Pump System
Built-in transfer pump enables efficient liquid movement between vessels — reducing manual handling and supporting continuous production workflows.

Related product display

Frequently Asked Questions

  • What is the capacity of the 300L Multi-functional Distiller?

    The 300L Multi-functional Distiller features a 300-liter boiler capacity. With the recommended 50-60% fill rate, you can process 125-150L of mash per batch, yielding approximately 25-35L of high-proof spirit per run. The included fermentation tank allows seamless integration of the complete production process.

  • Is the 300L Multi-functional Distiller suitable for commercial use?

    Yes. The 300L Multi-functional Distiller is designed for medium to large-scale commercial distilleries. It offers professional-grade construction, complete fermentation and distillation capabilities, and premium copper components, making it ideal for craft spirit brands and established distilleries seeking a comprehensive production system.

  • What heating options are available for the 300L Multi-functional Distiller?

    The 300L Multi-functional Distiller offers multiple heating options:

    • Electric heating (recommended): 36-48 kW with digital temperature control
    • Gas/diesel burner
    • Steam heating
      The integrated utility cabinet houses all heating controls and pumps for organized, professional operation.

  • Can I control the alcohol proof with the 300L Multi-functional Distiller?

    Yes. The 300L Multi-functional Distiller allows you to produce spirits ranging from 40% ABV to 95% ABV. The multi-plate copper rectification column gives you precise control over the final proof, and the multiple sight glasses let you monitor the distillation process in real-time.

  • Can I customize the configuration of the 300L Multi-functional Distiller?

    Yes. The 300L Multi-functional Distiller can be customized to meet your specific needs:

    • Column height and number of plates
    • Heating method (electric/gas/steam)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Fermentation tank size and features
    • Additional columns for higher purity
    • Gin basket size and configuration
    • Additional safety features
    • Custom color and finish
    • PLC control system upgrade
