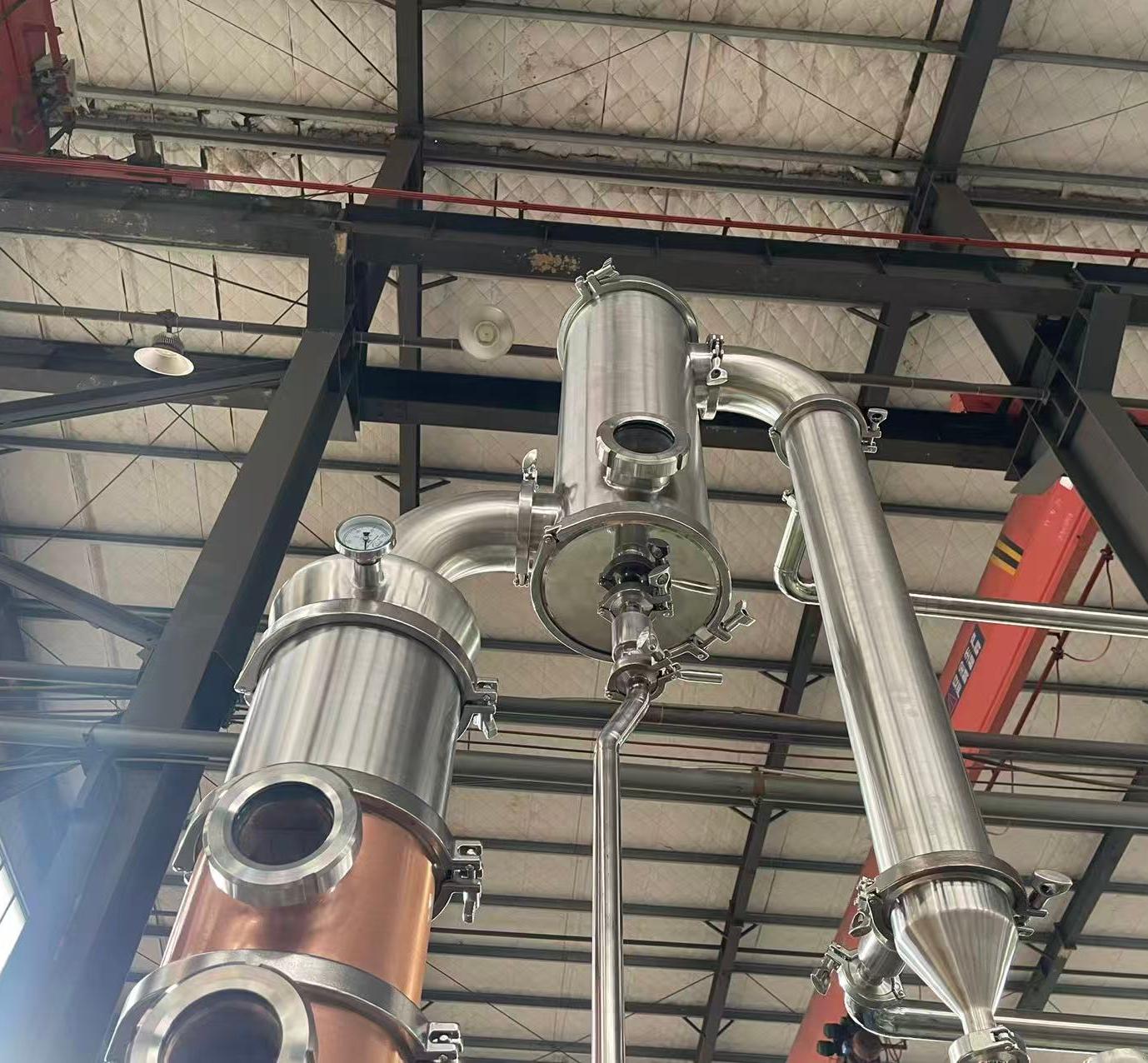

Copper column with stainless steel process vessel in a hybrid distillery system
Hybrid copper and stainless steel distillery equipment
Copper column with stainless steel process vessel in a hybrid distillery system
Hybrid copper and stainless steel distillery equipment
ZR-DT-1000L

1000L Pot and Column Still Whiskey Distiller

Modular Left-Right Split Configuration Space-Saving Modern Distillation Setup 1000L Commercial Production Scale

Product Description:

The 1000L Pot and Column Still is a large‑scale, hybrid distillation system for commercial whiskey production. Featuring a 1000‑liter full‑copper pot still with an integrated tall fractionating column (4 sight glasses), copper dome with sight glass, and diamond‑plate stainless steel boiler body with agitator, connected via copper piping to a tall stainless steel condenser/collection tank with thermometers — all with comprehensive gauge monitoring and sanitary tri‑clamp fittings. The integrated column design provides exceptional separation efficiency while maintaining the rich, complex character of pot‑still production. The agitator ensures even heat distribution across the massive boiler for consistent runs, while the copper vapor path delivers catalytic sulfur removal for premium spirit quality. The pump‑assisted system enables efficient transfer between vessels.

Get Free Quote

Product Paramenters

Model ZR‑DT‑1000L
Capacity Effective volume:1000L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

1000L Maximum Hybrid Capacity
1000L pot volume — the largest in the pot-column hybrid series. Delivers maximum commercial batch yields for large-scale distilleries requiring high-volume whiskey production with both pot still character and reflux capability.

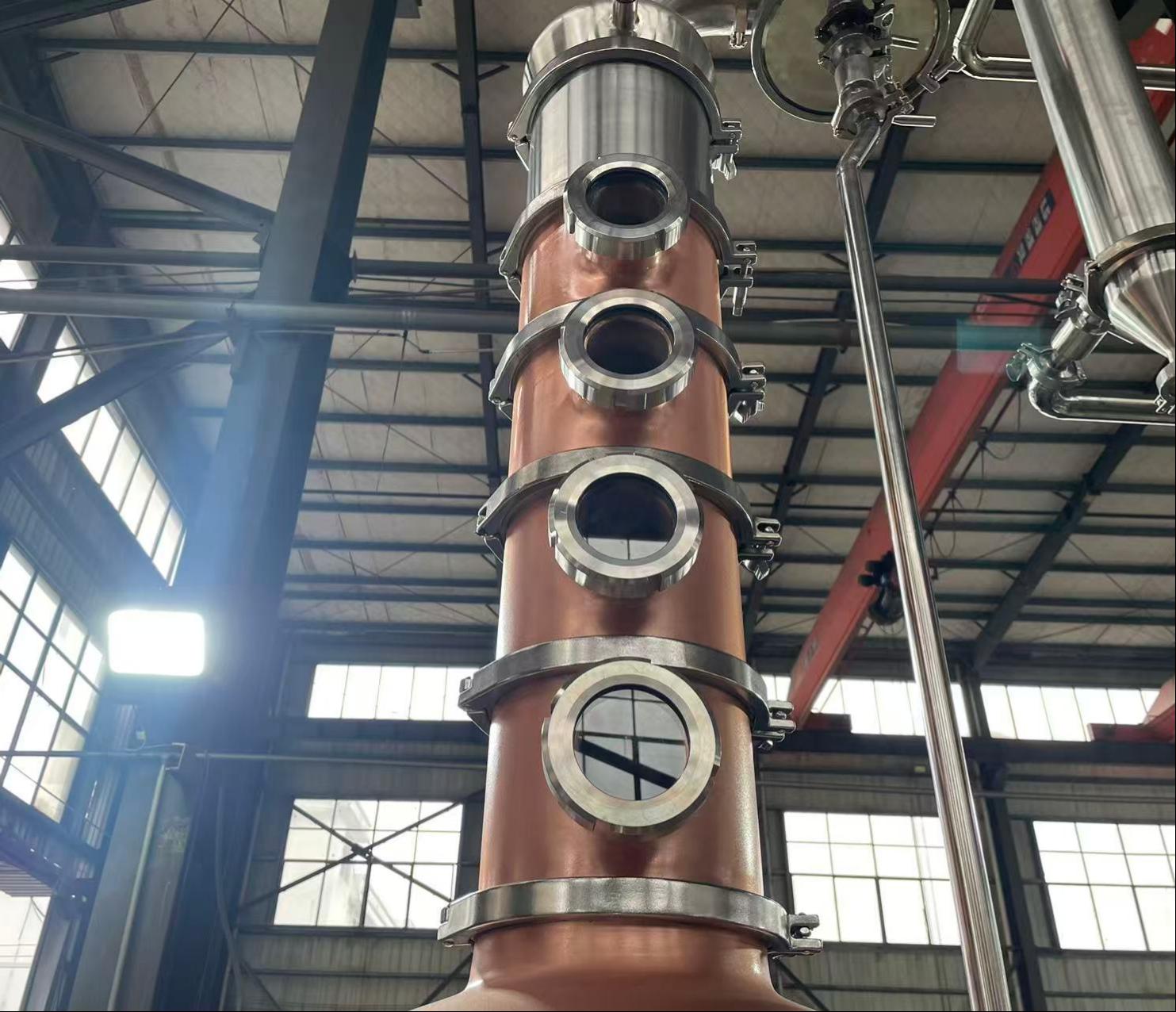

Integrated Reflux Column with Sight Glasses
Tall reflux column integrated into pot neck with 4-5 sight glasses — combining traditional pot still aesthetics with modern reflux capability for precise spirit purity control.

Large Separate Collection Tank
Dedicated stainless steel collection/storage tank provides substantial holding capacity — ideal for continuous production workflows and large-batch whiskey operations.

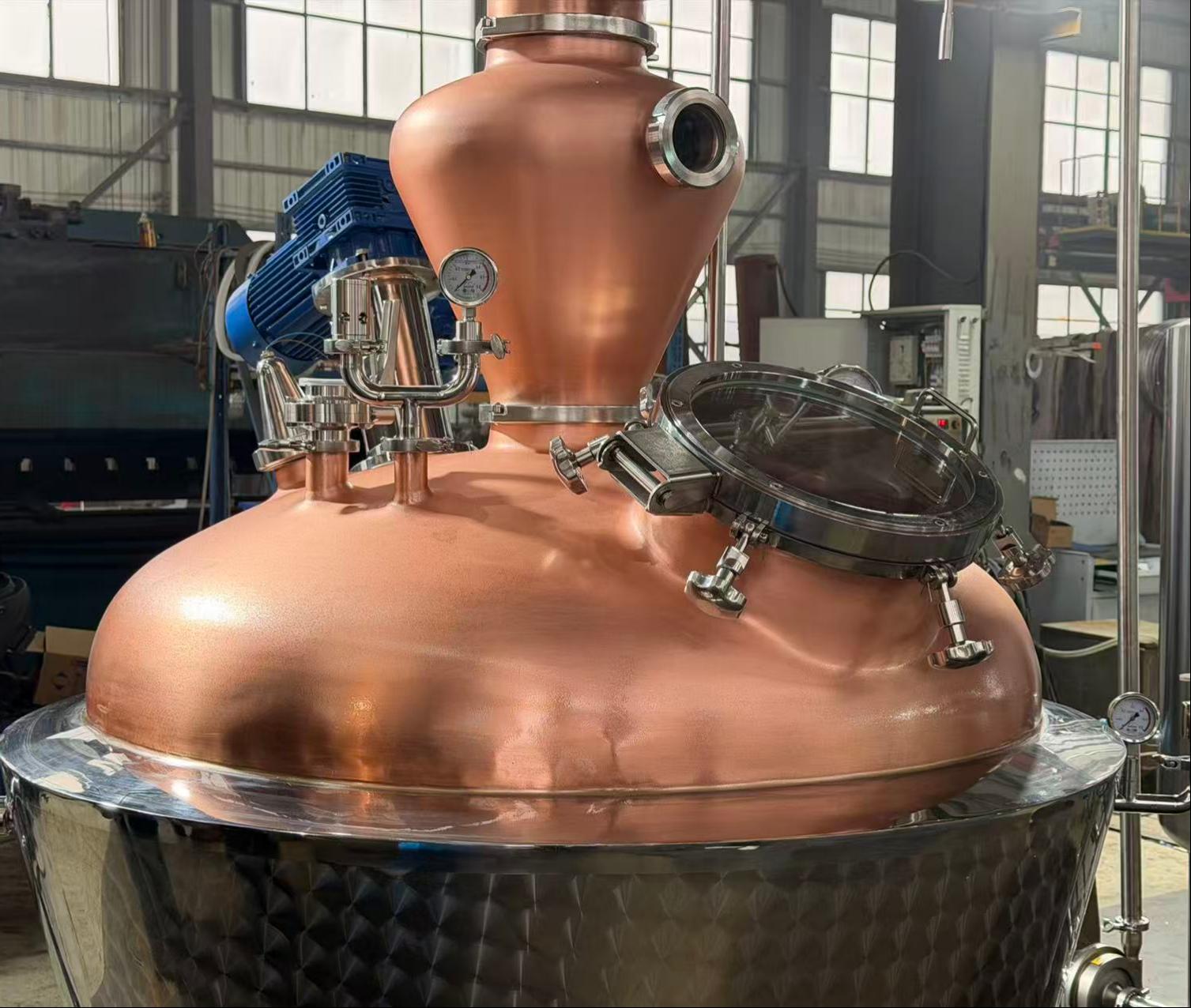

Traditional Copper Pot Still Shape
Classic copper pot body with alembic dome delivers authentic vapor dynamics for premium whiskey flavor development — the same geometry trusted by Scotland’s finest distilleries.

Integrated Pump System
Built-in pump enables efficient liquid transfer between pot and collection tank — supporting continuous production workflows and reducing manual handling at industrial scale.

Professional Temperature Monitoring
Gauges at critical points (pot, column, collection tank) provide comprehensive process visibility — enabling precise cut decisions and repeatable batch consistency.

Industrial-Grade Construction
Heavy-duty hammered stainless steel pot base and collection tank provide durability and reliability for continuous commercial operation in demanding distillery environments.

Hybrid copper and stainless steel distillery equipment

Related product display

Frequently Asked Questions

  • What makes the 1000L Pot and Column Still Whiskey Distiller unique?

    The 1000L Pot and Column Still Whiskey Distiller features several unique design elements:

    • Large 1000L capacity for high-volume production
    • Traditional pot still shape with integrated column
    • Multiple sight glasses for visual monitoring
    • Separate large collection vessel for efficient processing
    • Pump-assisted liquid transfer system
    • Professional commercial-grade construction
    • Complete turnkey distillation solution

  • What is the purpose of the large collection vessel on the 1000L Pot and Column Still Whiskey Distiller?

    The 1000L Pot and Column Still Whiskey Distiller includes a large separate collection vessel:

    • Provides efficient spirit collection and separation
    • Allows for heads, hearts, and tails separation
    • Large capacity reduces the need for frequent emptying
    • Sight glass for monitoring collection level
    • Temperature gauge for monitoring spirit temperature
    • Professional design for commercial operations

  • What is the purpose of the pump on the 1000L Pot and Column Still Whiskey Distiller?

    The 1000L Pot and Column Still Whiskey Distiller includes a pump for:

    • Transferring wash from fermentation tank to pot still
    • Circulating liquid during distillation
    • Draining spent mash after distillation
    • Moving finished spirit to storage
    • Reflux return to column (if configured)
    • Essential for large-scale commercial operations

  • Can I control the alcohol proof with the 1000L Pot and Column Still Whiskey Distiller?

    Yes. The 1000L Pot and Column Still Whiskey Distiller offers multiple proof control options:

    • Pot still mode: 60-70% ABV (traditional whiskey character)
    • Column mode: 90-95% ABV (vodka-quality neutral spirit)
    • Hybrid mode: variable proof depending on column plates used
    • Multiple sight glasses for visual monitoring
    • Temperature gauges for precise control
    • Large collection vessel for efficient fraction separation

  • Can I customize the 1000L Pot and Column Still Whiskey Distiller?

    Yes. The 1000L Pot and Column Still Whiskey Distiller can be customized:

    • Number of plates (more or fewer than standard 5-6)
    • Column height and diameter
    • Heating method (electric/steam/gas)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Addition of botanical basket for gin production
    • Control panel upgrades (PLC/SCADA systems)
    • Additional collection vessels
    • Custom finishes and branding
      Contact us for custom configurations.
