3200L Pot Still Whiskey Distiller

ZR-DT-3200L

3200L Pot Still Whiskey Distiller

Heating Method: Electric Heating, Steam Heating, Direct Flame Heating, Gas Heating Equipment Configuration: Distillation Kettle, Vapor Pipe, Condenser, Collection Tank, Sight Glass, Thermometer, Pressure Gauge Suitable For: Commercial Distillery, Spirit Manufacturer

Product Description:

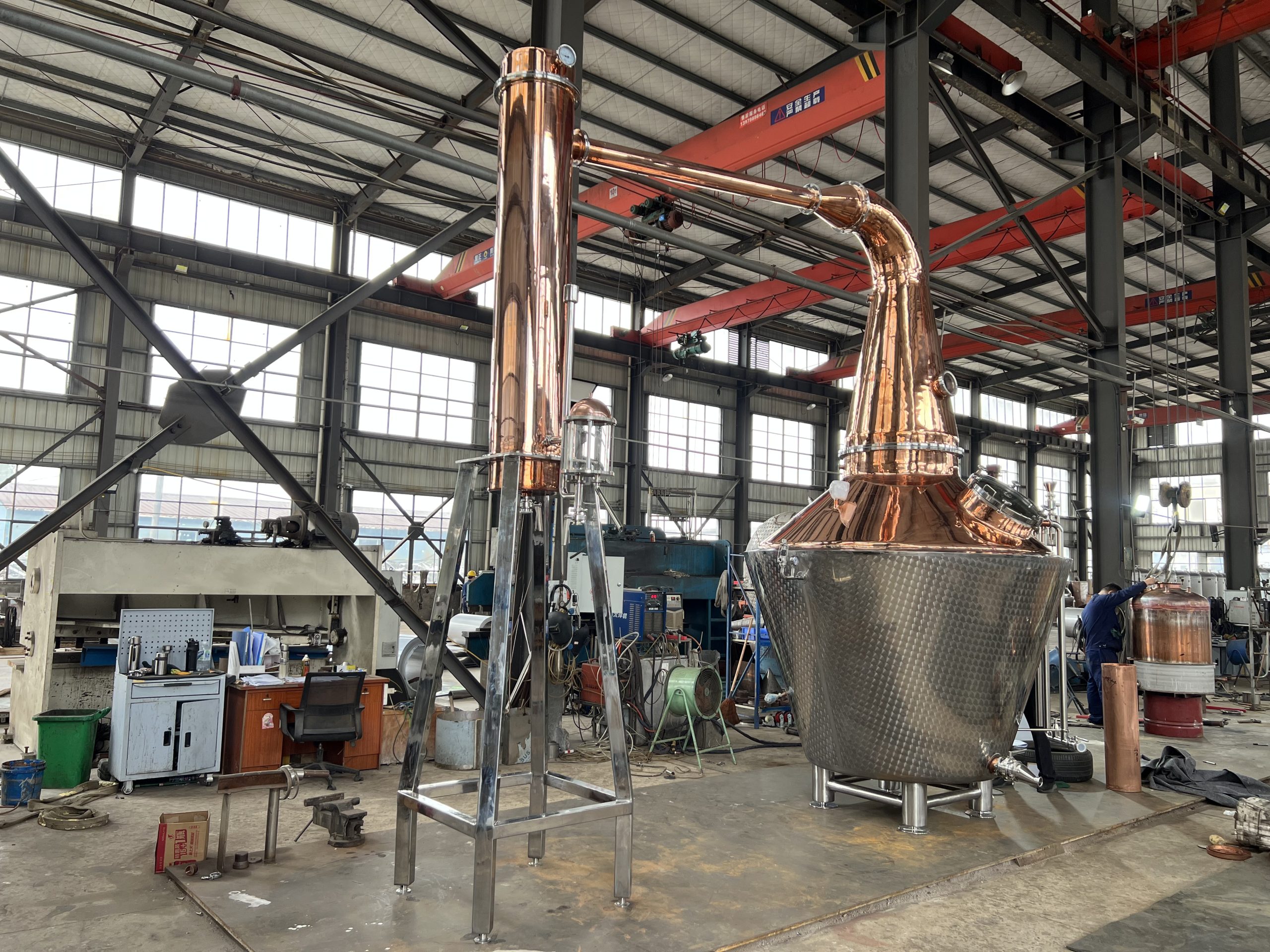

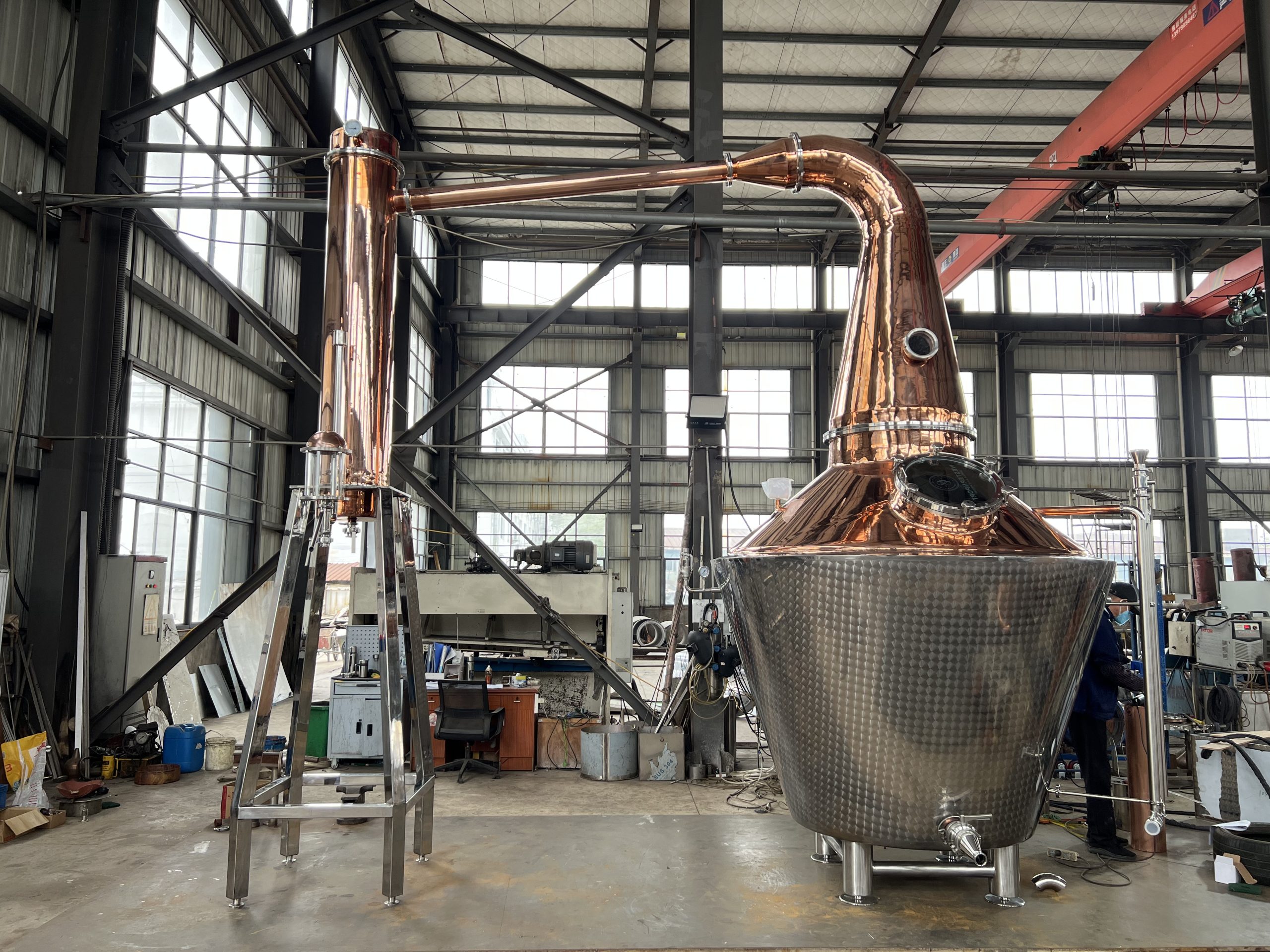

This 3200L Pot Still Whiskey Distiller is a large traditional pot still dedicated to whiskey production. It is engineered for industrial and mid-to-large commercial distilleries to produce premium single malt whiskey. Featuring a 3200-liter red copper pot with tall conical neck, full sight glass, diamond-plate stainless steel base and stainless steel condenser mounted on a sturdy A-frame stand. The full copper pot and lyne arm trigger copper catalytic reactions for smoother, full-bodied whiskey spirit. The tapered boiler body ensures even heat distribution across the massive charge. This is a pure pot-still design — no fractionating column — encouraging natural ester development for authentic traditional whiskey with deep character and complexity.

Get Free Quote

Product Paramenters

Model ZR‑DT‑3200L
Capacity Effective volume:3200L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notes 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

3200L Industrial-Scale Pot Still
3200L pot volume — the largest whiskey pot still in the series. Delivers maximum commercial batch yields for large-scale distilleries and industrial whiskey production operations requiring ultimate capacity.

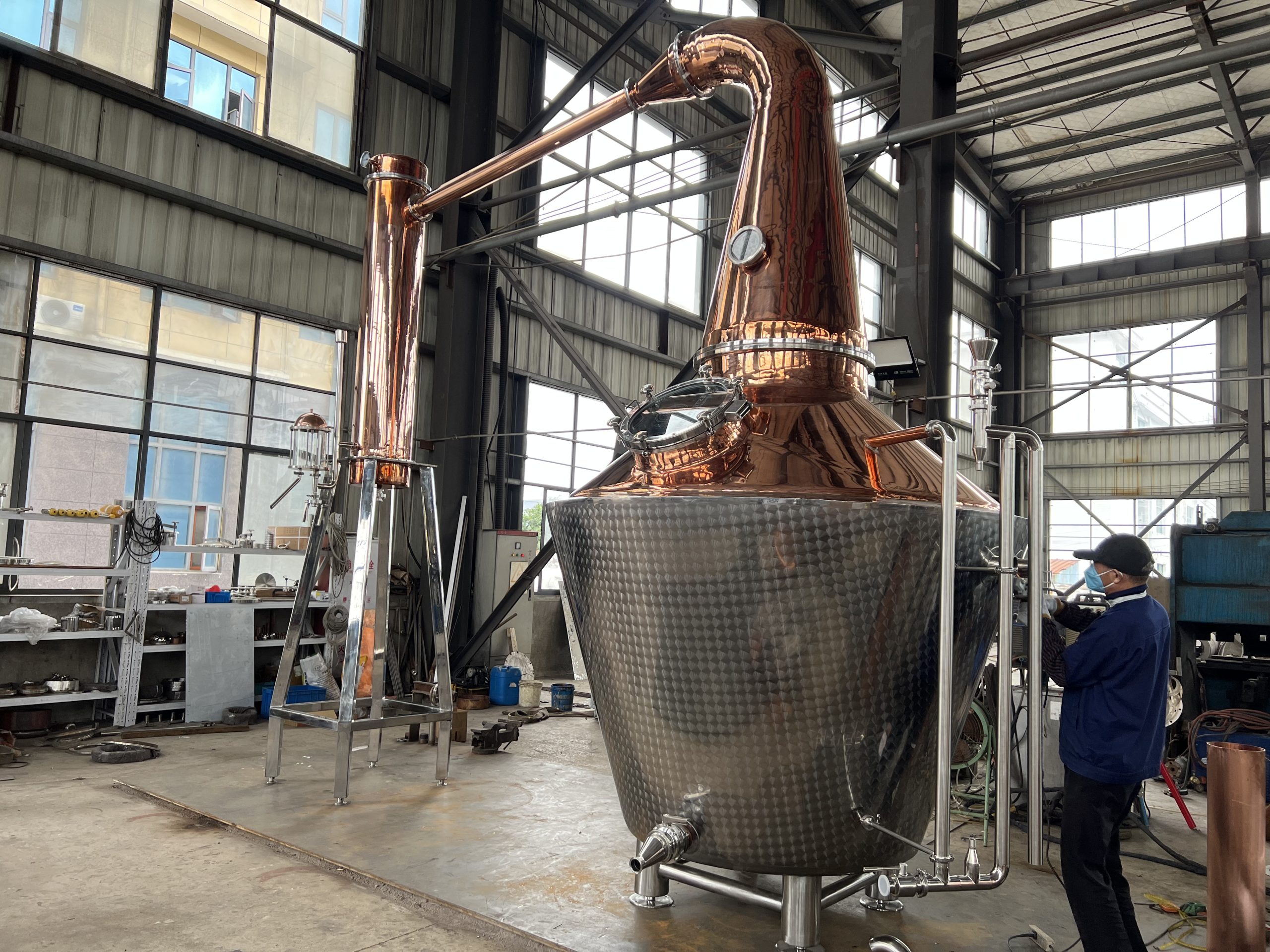

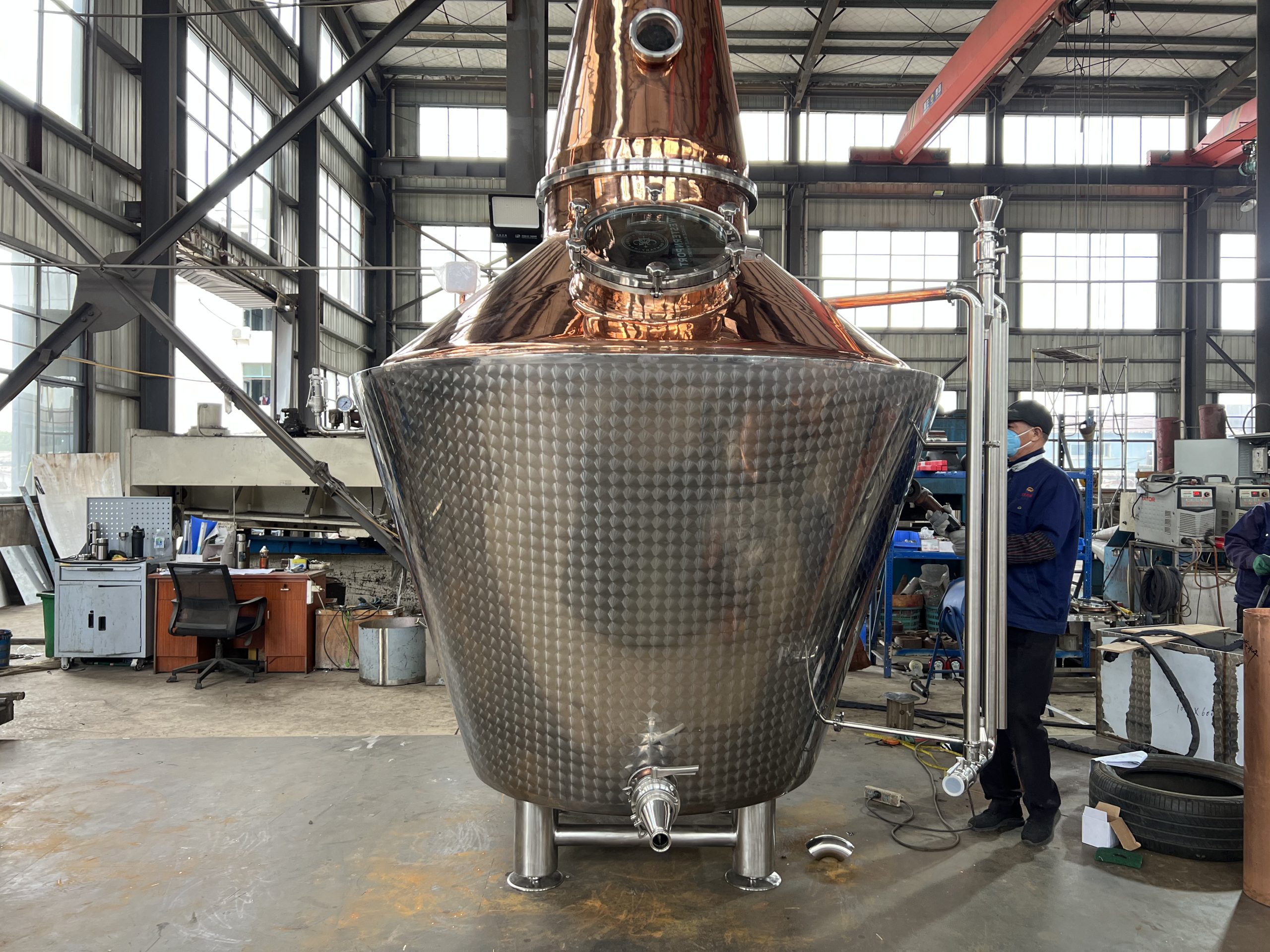

Unique Conical Pot Design
Distinctive cone-shaped pot body with hammered stainless steel base and copper shoulder — combining modern engineering with traditional copper contact for exceptional spirit character development at industrial scale.

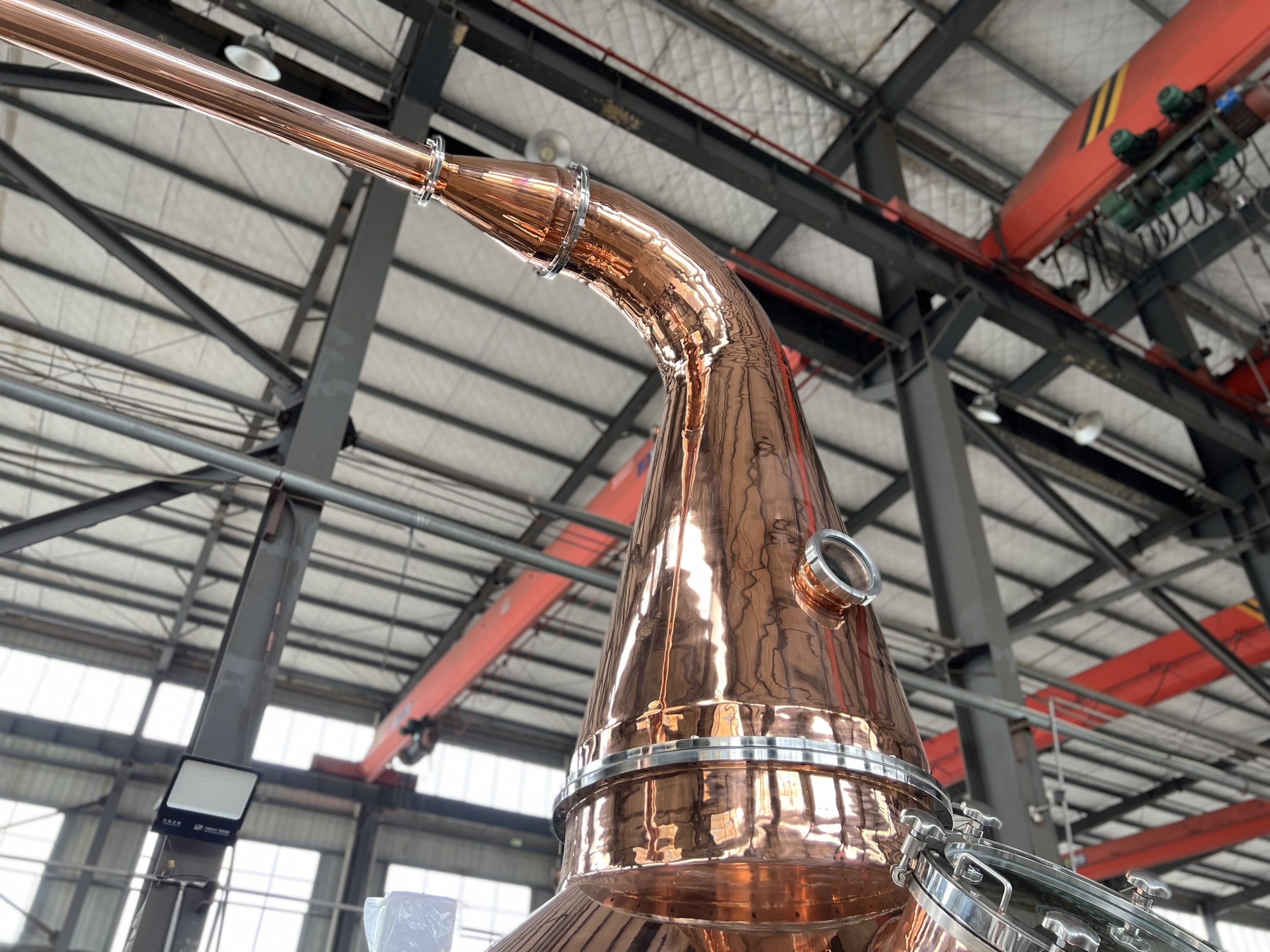

Traditional Copper Swan Neck & Lyne Arm
Classic tall tapered swan neck with extended copper lyne arm delivers authentic vapor dynamics essential for premium whiskey character. Copper’s catalytic properties remove sulfur compounds for smooth, complex spirits.

Full Copper Condenser on Separate Stand
Premium copper condenser mounted on independent stainless steel frame — maintaining maximum copper contact throughout the entire vapor path while allowing flexible positioning and easy maintenance.

Premium Copper Construction
Every vapor-contact component crafted from pure copper — alembic dome, neck, lyne arm, condenser, and spirit safe. Maximum catalytic contact ensures superior spirit quality at 3200L industrial scale.

Large Manway for Easy Cleaning
Oversized manway opening enables easy internal access for cleaning and grain removal — essential for maintaining hygiene and preventing flavor carryover between whiskey batches at industrial volumes.

Industrial-Grade Support Structure
Robust stainless steel support legs and condenser frame provide stable foundation for the massive 3200L system — engineered for continuous commercial operation in demanding distillery environments.

Related product display

Frequently Asked Questions

  • What types of spirits can the 3200L Pot Still Whiskey Distiller produce?

    The 3200L Pot Still Whiskey Distiller is specifically designed for large-scale commercial production of premium traditional whiskey including single malt Scotch whisky, bourbon, rye, and pot still whiskey. It can also produce brandy and traditional pot-distilled rum. The authentic Scottish-style copper pot still design is essential for producing world-class whiskey at commercial scale.

  • Is the 3200L Pot Still Whiskey Distiller suitable for commercial whiskey production?

    Yes. The 3200L Pot Still Whiskey Distiller is designed for serious commercial whiskey distilleries. It offers authentic Scottish-style copper pot still construction, large batch capacity, and industrial-grade durability, making it ideal for producing premium whiskey for commercial sale at significant scale.

  • What heating options are available for the 3200L Pot Still Whiskey Distiller?

    The 3200L Pot Still Whiskey Distiller offers multiple heating options:

    • Steam jacket heating (strongly recommended for this size): most even heat distribution, prevents scorching
    • Direct steam injection: for rapid heating
    • External steam coils: cost-effective option
    • Gas burners: for areas without steam infrastructure
      Steam heating is essential for this capacity to ensure even heating and consistent results.

  • What is the typical ABV of new-make spirit from the 3200L Pot Still Whiskey Distiller?

    The 3200L Pot Still Whiskey Distiller typically produces new-make spirit at 65-72% ABV from a single distillation. For Scotch-style double distillation, the final spirit is usually 63-68% ABV. This is then typically reduced to 63.5% ABV for cask filling and aging.

  • Can I customize the shape of the 3200L Pot Still Whiskey Distiller?

    Yes. The 3200L Pot Still Whiskey Distiller can be customized:

    • Swan neck angle (affects spirit character)
    • Onion head size and shape
    • Lyne arm angle (upward for more reflux, downward for heavier spirit)
    • Pot still height-to-width ratio
    • Addition of purifiers or reflux chambers
    • Full copper construction (instead of hybrid)
    • Custom engraving or branding
    • Fermentation vessel integration
      Contact us for custom still designs.
