500L All‑Copper Commercial Craft Spirits Distillation System

Obter um orçamento
Stainless Steel Conical Fermenters

500L Commercial Spirit Distiller

ZR-DT-500L

500L Commercial Spirit Distiller

Multifunctional:Whisky,Brandy,Grappa,Gin,Rum,Tequila Base,Baijiu Heating method: Electric heating,steam heating,direct flame heating (optional) Equipment Material：SUS304 / SUS316 / Red Copper — Custom Material

Product Description:

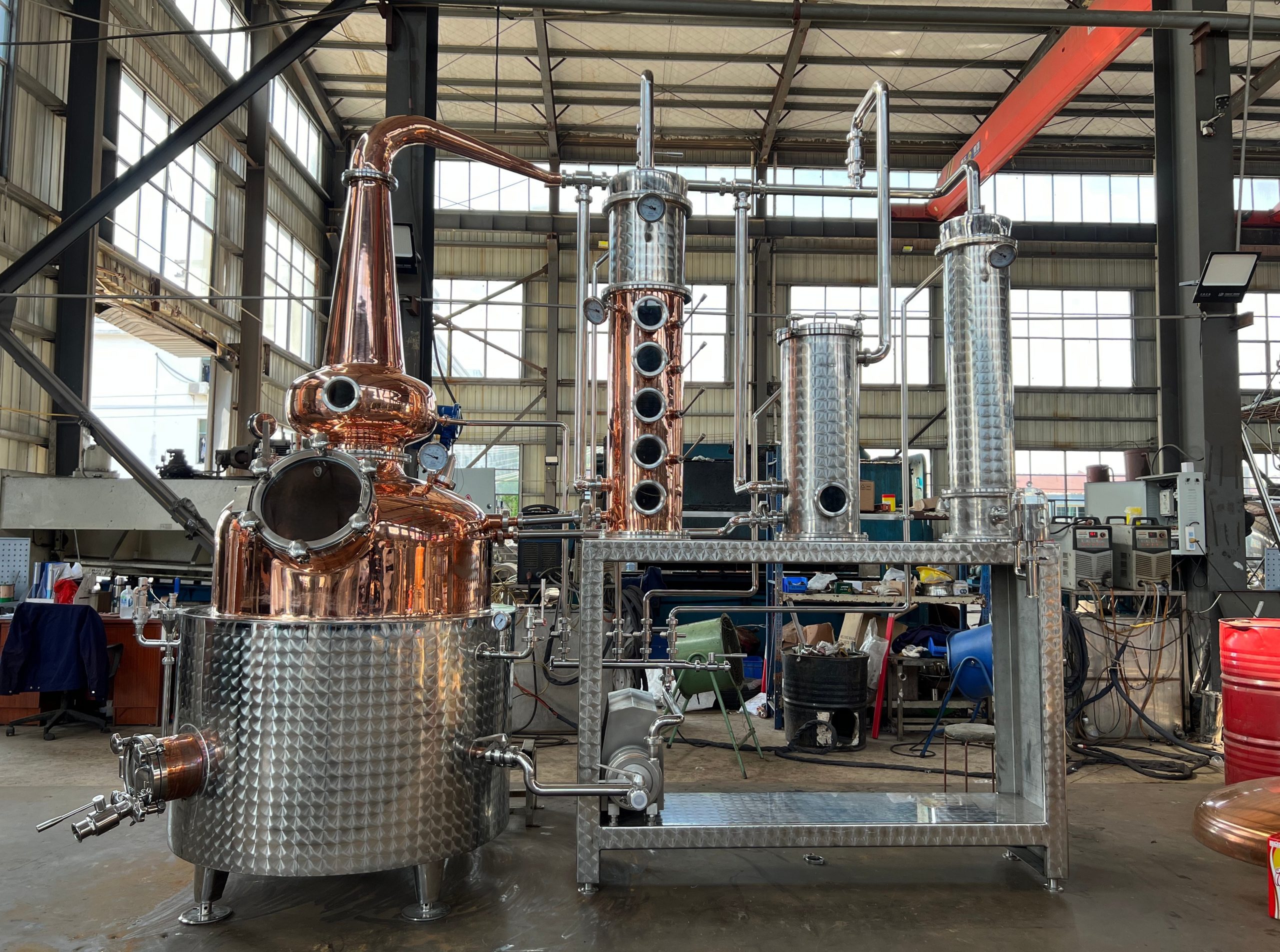

The 500L Commercial Spirit Distiller is a robust, production‑scale system engineered for high‑volume craft distilleries. Featuring a 500‑liter red copper pot still with onion helmet, oversized dome sight glass, and heavy‑duty boiler body, paired with a 5‑plate copper fractionating column, a stainless steel gin basket, and a dimpled shell‑and‑tube condenser — all mounted on a diamond‑plate stainless steel skid with integrated pump. The full‑copper vapor path ensures deep catalytic sulfur removal for clean, premium spirit production. Multiple precision thermometers and pressure gauges provide real‑time monitoring across every stage, while sanitary tri‑clamp fittings enable fast disassembly and CIP cleaning. Dual‑mode operation supports pot‑still runs for whiskey, brandy, and rum, or column runs for vodka, gin, and neutral spirits.

Get Free Quote

Product Parameters

Model ZR‑DT‑500L
Capacity Effective volume:500L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey,Vodka,Grappa,Brandy,Rum,Gin,Tequila,Essential oil,Hydrosol,Others
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notas 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

500L High-Volume Production
500L pot volume delivers large-scale commercial batch yields for established distilleries requiring maximum production output while maintaining craft-quality standards.

Premium Copper Alembic with Swan Neck
Traditional copper alembic dome with curved swan neck lyne arm delivers proven vapor dynamics essential for whiskey, bourbon, and brandy character development. Copper’s catalytic properties ensure smooth, sulfur-free spirits.

Multi-Plate Copper Reflux Column
Copper column with 5-6 sight glasses for real-time process monitoring. Configurable for pot still or reflux operation — supporting whiskey, gin, vodka, rum, and brandy production.

Stainless Steel Condenser & Dehplegmator
Durable stainless steel condenser and dephlegmator provide efficient cooling and reflux control while offering long-term durability and easy maintenance.

Open Frame Design for Easy Access
Compact open stainless steel frame allows easy access to all components for maintenance, cleaning, and adjustments — reducing downtime between production runs.

Hammered Stainless Steel Pot Body
Premium dimpled stainless steel construction provides exceptional durability, corrosion resistance, and professional aesthetic. Elevated leg design allows easy cleaning underneath.

Professional Temperature Monitoring
Multiple gauges at critical points provide accurate process visibility, enabling precise cut decisions and repeatable batch consistency.

Related product display

Perguntas Frequentes

  • What is the capacity of the 500L Multi-functional Distiller?

    The 500L Multi-functional Distiller features a 500-liter boiler capacity. With the recommended 50-60% fill rate, you can process 125-150L of mash per batch, yielding approximately 25-35L of high-proof spirit per run. The included fermentation tank allows seamless integration of the complete production process.

  • Is the 500L Multi-functional Distiller suitable for commercial use?

    Yes. The 500L Multi-functional Distiller is designed for medium to large-scale commercial distilleries. It offers professional-grade construction, complete fermentation and distillation capabilities, and premium copper components, making it ideal for craft spirit brands and established distilleries seeking a comprehensive production system.

  • What heating options are available for the 500L Multi-functional Distiller?

    The 500L Multi-functional Distiller offers multiple heating options:

    • Electric heating (recommended): 36-48 kW with digital temperature control
    • Gas/diesel burner
    • Steam heating
      The integrated utility cabinet houses all heating controls and pumps for organized, professional operation.

  • Can I control the alcohol proof with the 500L Multi-functional Distiller?

    Yes. The 500L Multi-functional Distiller allows you to produce spirits ranging from 40% ABV to 95% ABV. The multi-plate copper rectification column gives you precise control over the final proof, and the multiple sight glasses let you monitor the distillation process in real-time.

  • Can I customize the configuration of the 500L Multi-functional Distiller?

    Yes. The 500L Multi-functional Distiller can be customized to meet your specific needs:

    • Column height and number of plates
    • Heating method (electric/gas/steam)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Fermentation tank size and features
    • Additional columns for higher purity
    • Gin basket size and configuration
    • Additional safety features
    • Custom color and finish
    • PLC control system upgrade
