250L Commercial Copper Pot Still & Distillation System

Obter um orçamento
Stainless Steel Conical Fermenters

250L Multi-functional Dispenser

ZR-DT-250L

250L Multi-functional Dispenser

Multifunctional:Whisky,Brandy,Grappa,Gin,Rum,Tequila Base,Baijiu Heating method: Electric heating,steam heating,direct flame heating (optional) Equipment Material：SUS304 / SUS316 / Red Copper — Custom Material

Product Description:

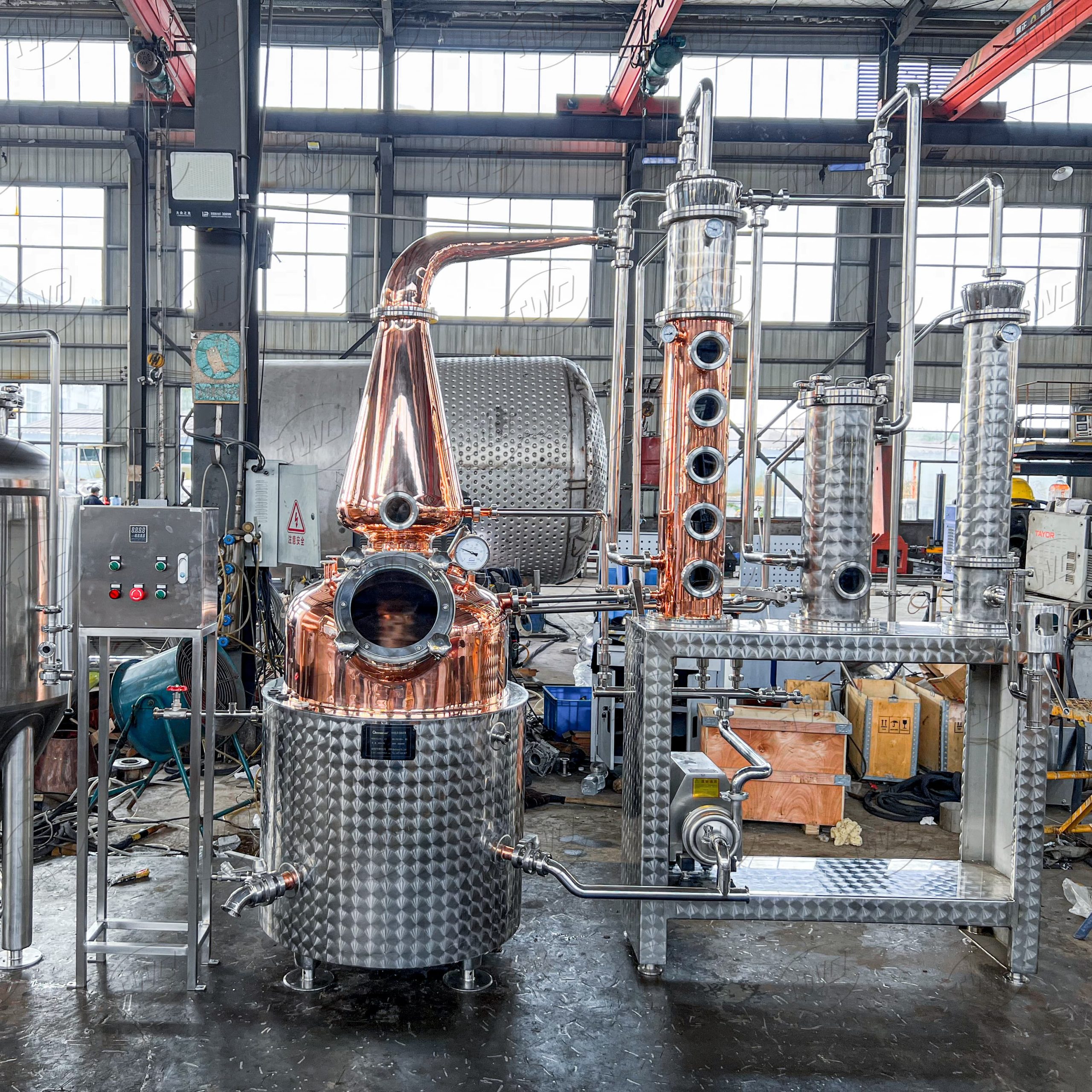

The 250L Multi‑Functional Distiller is a compact, skid‑mounted commercial system for craft distilleries. With a 250‑liter capacity, it combines a red copper pot still with an onion helmet and lyne arm, a 5‑plate copper fractionating column with sight glasses, a stainless steel gin basket, and a shell‑and‑tube condenser — all on a diamond‑plate stainless steel frame with an independent control panel. The full‑copper vapor path delivers clean, characterful spirit production, while dual‑mode operation supports traditional pot‑still runs for whiskey and brandy, or column runs for high‑proof vodka and neutral spirits. Food‑grade 304 stainless steel and sanitary tri‑clamp fittings ensure easy cleaning and CIP compatibility.

Get Free Quote

Product Parameters

Model ZR‑DT‑250L
Capacity Effective volume:250L
Material SUS304 / SUS316 / Red Copper (selectable)
Usage Whiskey,Vodka,Grappa,Brandy,Rum,Gin,Tequila,Essential oil,Hydrosol,Others
Application Home Use/Commercial
Heating way Electric Heating / Steam Heating / Gas Direct‑fire Heating (optional)
Control System Semi‑Automated with PID Schneider / Fully automated with PLC Siemens (selectable)
Voltage Single Phase: 220 (110, 240…) V / 50(60) Hz
Notas 1 Barrel (BBL) = 117 Liter；1 HL= 100 Liter；1 Gallon = 3.7854 Liter



Types Volume Component
Whisky distiller 50‑5000L Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, pipe system
Brandy distiller 50‑5000L Still pot, onion head, dephlegmator, column, condenser, CIP, pipe system
Rum distiller 50‑5000L Still pot, column, condenser, CIP, pipe system
Gin distiller 50‑5000L Still pot, column, gin basket, condenser, CIP, pipe system
Tequila distiller 50‑5000L Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Essential oil distiller 50‑5000L Still pot, column, condenser, oil‑water separator, CIP, pipe system
Multi‑spirits distiller 200‑5000L Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank



Advantage of Configuration

250L High-Capacity Production
250L pot volume delivers commercial-scale batch yields for established craft distilleries requiring higher output while maintaining artisanal quality and flavor integrity.

Professional Control Panel
Standalone electrical control panel with PID temperature management provides precise, repeatable distillation control. Reduces operator skill requirements and ensures batch-to-batch consistency.

Premium Copper Alembic with Swan Neck
Traditional copper alembic dome with swan neck lyne arm delivers proven vapor dynamics essential for whiskey, bourbon, and brandy character development. Copper’s catalytic properties ensure smooth, sulfur-free spirits.

Multi-Plate Copper Reflux Column
Tall copper column with 5-6 sight glasses enables real-time process monitoring. High plate count supports ultra-high-purity vodka production while maintaining flexibility for pot still operation.

Hammered Stainless Steel Construction
Premium dimpled stainless steel pot body and frame provide exceptional durability, corrosion resistance, and professional aesthetic appeal for showroom-quality installations.

Integrated Pump System
Built-in transfer pump enables efficient liquid movement between vessels — reducing manual handling and supporting continuous production workflows.

Integrated Gin Basket
Dedicated botanical basket in the vapor path enables premium gin infusion. Steam extracts delicate aromatics without over-extraction for London Dry or contemporary styles.

Related product display

Perguntas Frequentes

  • What is the capacity of the 250L Multi-functional Distiller?

    The 250L Multi-functional Distiller features a 250-liter boiler capacity. With the recommended 50-60% fill rate, you can process 125-150L of mash per batch, yielding approximately 25-35L of high-proof spirit per run. The included fermentation tank allows seamless integration of the complete production process.

  • Is the 250L Multi-functional Distiller suitable for commercial use?

    Yes. The 250L Multi-functional Distiller is designed for medium to large-scale commercial distilleries. It offers professional-grade construction, complete fermentation and distillation capabilities, and premium copper components, making it ideal for craft spirit brands and established distilleries seeking a comprehensive production system.

  • What heating options are available for the 250L Multi-functional Distiller?

    The 250L Multi-functional Distiller offers multiple heating options:

    • Electric heating (recommended): 36-48 kW with digital temperature control
    • Gas/diesel burner
    • Steam heating
      The integrated utility cabinet houses all heating controls and pumps for organized, professional operation.

  • Can I control the alcohol proof with the 250L Multi-functional Distiller?

    Yes. The 250L Multi-functional Distiller allows you to produce spirits ranging from 40% ABV to 95% ABV. The multi-plate copper rectification column gives you precise control over the final proof, and the multiple sight glasses let you monitor the distillation process in real-time.

  • Can I customize the configuration of the 250L Multi-functional Distiller?

    Yes. The 250L Multi-functional Distiller can be customized to meet your specific needs:

    • Column height and number of plates
    • Heating method (electric/gas/steam)
    • Voltage and frequency (110V/220V/380V, 50/60Hz)
    • Fermentation tank size and features
    • Additional columns for higher purity
    • Gin basket size and configuration
    • Additional safety features
    • Custom color and finish
    • PLC control system upgrade
